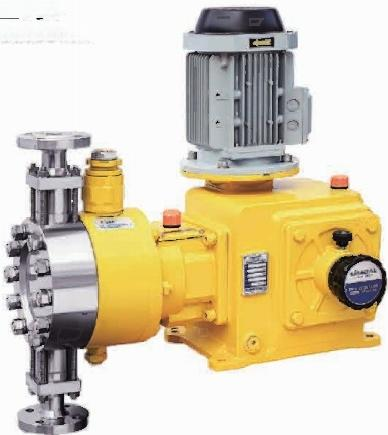

JYPR HYDRAULIC DIAPHRAGM METERING
FEATURES
1. Single-head flow rate: Qmax = 3350 L/H
2. Pressure range: Pmax = 70MPa
3. Standard configuration: Material 304, 316L 380V /50Hz
4. Select configuration: Material 316, PVDF/PTFE 904 2205 Ti , Ha C grade , motor frequency conversion/explosion-proof, special voltage/frequency, double or multi-layer diaphragm/alarm
PERFORMANCE PARAMETER
Model | Flow rate (L/H) | Pressure MPa | plunger diameter (mm) | Pump speed SPM | Itinerary mm | Motor power kW | Import/export connection |
JYPR7/70 | 7 | 70 | 10 |
96 |
30 |
1.5 | 6-pipe sleeve |
JYPR12/55 | 12 | 55 | 12 | ||||
JYPR25/30 | 25 | 30 | 16 |
10-pipe sleeve | |||
JYPR42/22 | 42 | twenty two | 16 |
144 | |||
JYPR56/18 | 56 | 18 | 18 | ||||
JYPR72/15 | 72 | 15 | 20 | ||||
JYPR90/12.5 | 90 | 12.5 | twenty two | ||||
JYPR115/9.5 | 115 | 9.5 | 25 | ||||
JYPR130/8.0 | 130 | 8 | 32 | 96 |
15-inch pipe sleeve | ||
JYPR170/6.5 | 170 | 6.6 | 30 |
144 | |||
JYPR200/5.8 | 200 | 5.8 | 32 | ||||
JYPR250/4.5 | 250 | 4.5 | 36 | ||||
JYPR310/3.7 | 310 | 3.7 | 40 | ||||
JYPR400/3.0 | 400 | 3 | 45 |
144 |
DN25 flange (HG/T20592RF) | ||
JYPR500/2.4 | 500 | 2.4 | 50 | ||||
JYPR600/2.0 | 600 | 2 | 55 | ||||
JYPR710/1.7 | 710 | 1.7 | 60 | ||||
JYPR830/1.4 | 830 | 1.4 | 65 | ||||
JYPR960/1.2 | 960 | 1.2 | 70 |
144 |
DN40 flange (HG/T20592RF) | ||
JYPR1100/1.0 | 1100 | 1 | 75 | ||||
JYPR1250/0.9 | 1250 | 0.9 | 80 | ||||
JYPR1420/0.8 | 1420 | 0.8 | 85 | ||||
JYPR1600/0.7 | 1600 | 0.7 | 90 |
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion .
