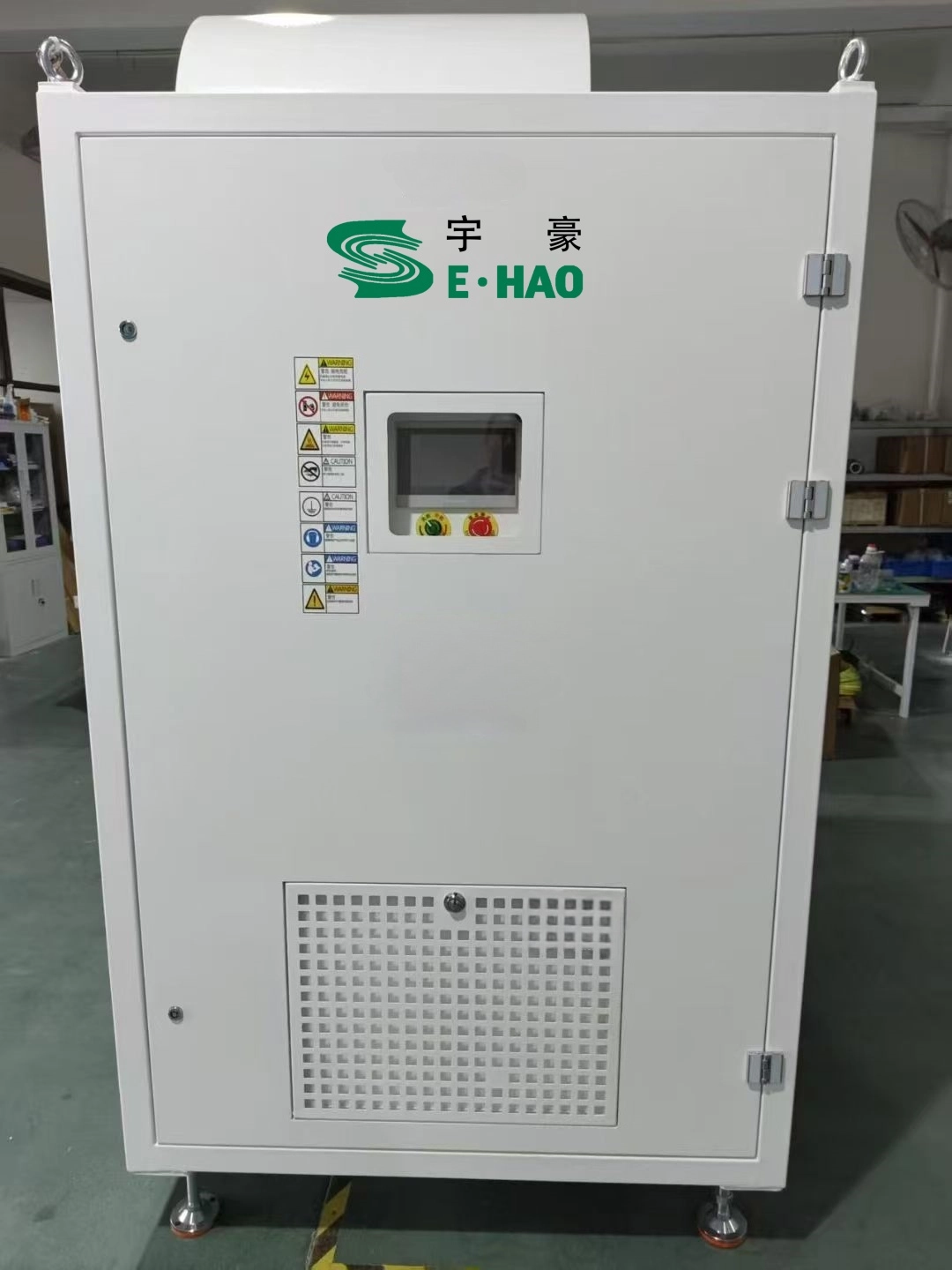

The landscape of industrial air handling has been revolutionized by advancements in blower technology, with the Air Suspension Centrifugal Blower emerging as a pinnacle of innovation. This sophisticated machinery represents a significant leap forward from conventional blowers, primarily due to its integration of air foil bearings and high-speed permanent magnet synchronous motors. Unlike traditional blowers that rely on oil lubrication and mechanical bearings, air suspension centrifugal blowers leverage a cushion of air to support their rotating shaft, eliminating physical contact, friction, and the need for lubricants. This fundamental design difference underpins a cascade of benefits, including vastly improved energy efficiency, reduced maintenance, quieter operation, and enhanced reliability. As industries worldwide strive for greater sustainability and operational cost reductions, the adoption of air suspension centrifugal blowers is becoming an increasingly attractive proposition, offering a powerful combination of performance and environmental responsibility. Their ability to deliver large volumes of oil-free air with exceptional precision makes them indispensable across a diverse range of applications, from critical wastewater treatment processes to complex manufacturing operations. The development of these blowers is a testament to engineering ingenuity, pushing the boundaries of what is possible in industrial air compression and movement.
At the heart of the Air Suspension Centrifugal Blower's superior performance lies its ingenious working principle, a synergy of aerodynamic and electromagnetic forces. The core components—the impeller, the high-speed permanent magnet synchronous motor, and the air suspension bearings—work in concert to achieve unprecedented levels of efficiency and reliability.
The process begins with the centrifugal impeller, a meticulously designed component engineered to draw in ambient air. As the impeller rotates at extremely high speeds, typically tens of thousands of revolutions per minute, it imparts kinetic energy to the incoming air. This rotational motion forces the air outwards by centrifugal force, accelerating it and increasing its velocity. The air then passes through a diffuser section, where its high kinetic energy is converted into potential energy in the form of increased static pressure. This compression process is highly efficient due to the precision engineering of the impeller and housing, minimizing energy losses and maximizing the output pressure and flow rate.
Driving the impeller is a high-speed permanent magnet synchronous motor (PMSM). This motor is specifically chosen for its high efficiency, compact size, and ability to operate at the exceptionally high rotational speeds required by air suspension technology. Unlike induction motors, PMSMs use permanent magnets in their rotor, which eliminates rotor current losses and significantly improves efficiency, particularly under varying load conditions. The direct drive mechanism, where the motor shaft is directly coupled to the impeller, eliminates the need for gearboxes, further reducing mechanical losses and complexities, which are common failure points in traditional geared blowers.
The most distinctive feature, and the key to the blower's oil-free operation, is the air suspension bearing system. Instead of traditional rolling-element or plain bearings that require oil lubrication, these blowers utilize a thin film of pressurized air to support the rotating shaft. During startup, the shaft initially rests on auxiliary bearings. As the motor accelerates, aerodynamic forces generate a pressurized air film between the shaft and the bearing surface. Once sufficient speed is reached, the shaft "lifts off" and floats entirely on this air cushion, achieving a completely non-contact, friction-free rotation. This absence of metal-on-metal contact means there is no wear, no need for lubrication, and virtually no mechanical friction, which translates into exceptionally long bearing life and eliminates the risk of oil contamination in the delivered air. The bearing system also incorporates advanced control algorithms to ensure stable operation even during transient conditions like sudden load changes or power fluctuations.
Modern air suspension centrifugal blowers are typically equipped with sophisticated Programmable Logic Controller (PLC) or Distributed Control System (DCS) based control systems. These systems continuously monitor operational parameters such as speed, pressure, temperature, and vibration. They can precisely adjust the motor speed to match the exact air flow and pressure requirements of the application, leading to optimal energy consumption. Furthermore, intelligent diagnostic capabilities allow for predictive maintenance and early fault detection, enhancing reliability and reducing downtime. The integration of variable frequency drives (VFDs) with the PMSM is crucial for achieving precise speed control, allowing the blower to operate efficiently across a wide range of turndown ratios, adapting to fluctuating demand with ease.
The Air Suspension Centrifugal Blower boasts a range of features that translate into significant operational and environmental advantages over older blower technologies.
One of the most compelling advantages is the completely oil-free operation. Because the air suspension bearings do not require lubrication, there is no risk of oil contaminating the process air. This is critically important in industries such as food and beverage, pharmaceuticals, electronics manufacturing, and certain chemical processes where product purity is paramount. It also eliminates the costs associated with purchasing, storing, and disposing of lubricating oil, as well as the need for oil filters and separators, simplifying the system and reducing waste.
Air suspension centrifugal blowers are renowned for their exceptional energy efficiency. The absence of mechanical friction in the bearings, combined with the high efficiency of the permanent magnet synchronous motor and the optimized aerodynamic design of the impeller, results in significantly lower power consumption compared to conventional blowers. Many models achieve efficiencies upwards of 80-85%, sometimes even higher, leading to substantial energy cost savings over their operational lifespan. The ability to precisely control the flow and pressure via VFDs also ensures that the blower only consumes the energy required for the current demand, avoiding wasteful over-pressurization or over-supply.
The non-contact operation of the air suspension bearings, coupled with the precision balancing of the rotating components, results in remarkably low noise levels and minimal vibration. This creates a more comfortable and safer working environment for personnel and reduces the need for extensive soundproofing measures, which can be costly and space-consuming. The smooth operation also extends the life of auxiliary equipment by reducing wear caused by excessive vibration.
With no mechanical friction in the bearings and no oil to manage, the wear and tear on internal components are drastically reduced. This translates into an exceptionally long operational lifespan, often exceeding 10 to 20 years, with minimal maintenance requirements. Routine maintenance is typically limited to checking filters and general system diagnostics, significantly lowering labor costs and the frequency of costly overhauls. The reduced downtime further enhances productivity.
The advanced engineering, particularly the direct-drive motor and compact bearing system, allows for a more compact footprint compared to traditional blowers of similar capacity. This is a crucial advantage in facilities where space is at a premium, enabling easier integration into existing infrastructure or more efficient use of new construction space.
Understanding the individual components further illuminates the sophisticated design of these blowers.
The impeller is the rotating component responsible for drawing in air and imparting kinetic energy to it. These are typically precision-machined from high-strength aluminum alloys or stainless steel, ensuring durability and precise aerodynamic performance. The design of the blades and the overall geometry of the impeller are critical for maximizing efficiency and achieving the desired flow and pressure characteristics.
As discussed, this motor is the prime mover, converting electrical energy into mechanical rotational energy. Its permanent magnet design provides high power density, excellent efficiency, and reliable operation at speeds necessary for air suspension. Integrated cooling systems ensure the motor operates within optimal temperature ranges, preventing overheating and extending its life.
These self-acting or externally pressurized bearings create a cushion of air that eliminates physical contact between the rotating shaft and the stationary bearing surfaces. They are meticulously designed with complex geometries to generate the necessary lift and stability. Materials chosen for the bearing pads are often high-performance composites or specialized metals that can withstand the operational stresses and ensure a stable air film.
The control system comprises a Programmable Logic Controller (PLC) or a similar industrial computer, which acts as the brain of the blower, and a Variable Frequency Drive (VFD), which controls the motor speed. The VFD precisely regulates the frequency and voltage supplied to the motor, allowing for fine-tuned control of the impeller speed and, consequently, the blower's output. The PLC monitors sensors, executes control algorithms, manages protective functions, and facilitates communication with plant-wide control systems.
The versatile nature and compelling advantages of air suspension centrifugal blowers have led to their widespread adoption across various industries.
One of the most prominent applications is in wastewater treatment plants, particularly for aeration processes in activated sludge systems. Aeration is critical for supplying oxygen to microorganisms that break down organic pollutants. Air suspension blowers provide a reliable, energy-efficient source of oil-free air for this purpose. Their high efficiency significantly reduces the operational costs associated with aeration, which often accounts for a substantial portion of a plant's total energy consumption. The oil-free air prevents contamination of the biological processes, ensuring optimal treatment efficacy.
Beyond wastewater, these blowers are utilized in numerous industrial processes requiring large volumes of air.
* Aeration: In aquaculture, they provide oxygen to fish ponds. In fermentation processes, they supply sterile air to bioreactors.
* Drying: Industries such as textiles, paper, and food processing use high-velocity air for drying products, where precise airflow and cleanliness are essential.
* Blow-Off/Air Rinsing: They are used in manufacturing lines to remove debris, moisture, or excess coatings from products, ensuring quality control.
For transporting granular materials, powders, or small items through pipelines, pneumatic conveying systems rely on a steady flow of air. Air suspension centrifugal blowers are ideal for these systems, providing the necessary pressure and volume of air efficiently and reliably, without the risk of oil contamination to the conveyed materials.
In power generation facilities, particularly in flue gas desulfurization (FGD) systems, blowers are used to supply air for oxidation processes that remove sulfur dioxide from exhaust gases. The reliability and efficiency of air suspension blowers contribute to environmental compliance and operational stability.
The stringent requirements for product purity and process control in chemical and pharmaceutical manufacturing make oil-free air a necessity. Air suspension centrifugal blowers provide clean, contamination-free air for various processes, including ingredient mixing, drying, and general plant air supply, ensuring product integrity and safety.
To fully appreciate the impact of air suspension centrifugal blowers, it's beneficial to compare them with traditional alternatives like positive displacement (roots) blowers and conventional geared centrifugal blowers.
Roots blowers operate by trapping a fixed volume of air and moving it from the inlet to the outlet, producing a constant volume flow regardless of the outlet pressure (within limits).
* Efficiency: Generally less efficient than centrifugal blowers, especially at higher pressures, due to internal leakage and frictional losses.
* Noise: Typically quite noisy due to the pulsating airflow and mechanical contact.
* Oil: Often require lubrication for gears and bearings, risking oil contamination.
* Maintenance: More frequent maintenance due to wearing parts and lubrication requirements.
* Size: Can be relatively bulky for their output.
These blowers use an impeller driven by a motor through a gearbox, often requiring oil lubrication for the gears and bearings.
* Efficiency: Can be efficient, but gearboxes introduce frictional losses and require energy for oil cooling and circulation.
* Noise: Gearboxes contribute to noise and vibration.
* Oil: Require significant oil management, including oil changes, filters, and potential for oil leaks or contamination.
* Maintenance: Gearbox maintenance can be complex and expensive, including oil analysis, changes, and eventual overhauls.
* Size: Can be larger than air suspension models due to the gearbox.
* Efficiency: Highest efficiency due to no mechanical friction, direct drive, and optimized aerodynamics.
* Noise: Extremely low noise and vibration.
* Oil: Completely oil-free operation, eliminating contamination risks and oil management costs.
* Maintenance: Very low maintenance due to non-contact bearings and few wearing parts. Long lifespan.
* Size: Compact footprint.
This comparison clearly highlights why air suspension centrifugal blowers are increasingly preferred for applications where energy efficiency, clean air, low noise, and minimal maintenance are critical considerations. The initial investment might be higher, but the long-term operational savings often justify the expenditure.
While air suspension centrifugal blowers are celebrated for their low maintenance, proper installation and a structured approach to preventive care are still essential to maximize their lifespan and performance.
* Foundation: A stable, level foundation is crucial to minimize any external vibrations and ensure proper alignment. While less sensitive to vibration than geared blowers, good practices remain important.
* Ventilation: Adequate ventilation around the blower is necessary to ensure efficient cooling of the motor and control electronics.
* Inlet Air Quality: Given their reliance on clean air for bearing operation and process delivery, the quality of inlet air is paramount. High-efficiency air filters should always be installed upstream to prevent dust, moisture, and contaminants from entering the blower and damaging the impeller or affecting bearing performance.
* Piping: Properly sized and supported piping is vital to prevent stress on the blower's inlet and outlet flanges. Expansion joints may be necessary to accommodate thermal expansion and vibration.
* Electrical Connection: A stable and correctly sized electrical supply is required, along with appropriate grounding and protection as per electrical codes.
* Air Filter Replacement: The most frequent maintenance task involves regularly inspecting and replacing the inlet air filters. Clogged filters reduce airflow, increase energy consumption, and can stress the blower. The frequency depends on the ambient air quality.
* System Monitoring: Regularly monitor the blower's operational parameters via the control system. Pay attention to trends in current consumption, pressure, temperature, and any alarm messages. Anomalies can indicate developing issues.
* Visual Inspection: Periodically inspect the blower for any signs of external damage, loose connections, or unusual leaks (though oil leaks are not a concern with these units).
* Software Updates: Keep the control system software updated as recommended by the manufacturer to benefit from performance enhancements and bug fixes.
* Bearing Checks: While air bearings are maintenance-free, the control system typically monitors their condition. Any issues will be flagged by the diagnostic system. Mechanical checks are generally not required unless specified by the manufacturer after many years of operation or specific fault conditions.
* Cleaning: Keep the external surfaces of the blower clean to ensure efficient heat dissipation.
The simplicity of maintenance compared to traditional blowers represents a significant operational cost saving and contributes to higher uptime.
The field of air suspension centrifugal blowers is not static; continuous innovation is driving further improvements and expanding their potential. Several key trends are shaping their future:
Research and development continue to focus on even greater energy efficiency. This includes further optimization of impeller aerodynamics using advanced computational fluid dynamics (CFD), improvements in motor design, and more sophisticated control algorithms that can adapt to an even wider range of operating conditions with minimal energy waste.
The development of new, high-performance materials for impellers and bearing surfaces could lead to blowers that are more robust, lighter, and capable of operating at even higher speeds or under more extreme environmental conditions.
The integration of Internet of Things (IoT) capabilities is becoming more prevalent. This involves blowers equipped with advanced sensors that continuously collect data on performance, temperature, vibration, and other parameters. This data can be transmitted wirelessly to cloud-based platforms for real-time monitoring, predictive analytics, and remote diagnostics. Such "smart blowers" will enable highly optimized operation, proactive maintenance scheduling, and deeper insights into process performance.
As technology advances, there's a trend towards more compact designs without sacrificing performance. This allows for easier integration into smaller spaces and a broader range of applications. Furthermore, manufacturers are offering greater customization options to tailor blowers precisely to specific process requirements, ensuring optimal performance for niche applications.
The exploration of hybrid systems, combining air suspension technology with other advanced bearing types or energy recovery systems, could unlock new levels of performance and sustainability in certain demanding applications.
These trends indicate a future where air suspension centrifugal blowers become even more efficient, intelligent, and adaptable, solidifying their position as a leading technology in industrial air handling.
The Air Suspension Centrifugal Blower stands as a testament to modern engineering, offering a compelling solution for industrial air handling needs that prioritize efficiency, reliability, and environmental responsibility. By eliminating the complexities and inefficiencies associated with oil lubrication and mechanical friction, these blowers deliver oil-free air with unparalleled energy savings, minimal noise, and dramatically reduced maintenance requirements. From vital roles in wastewater treatment and pharmaceutical manufacturing to critical tasks in general industrial processes, their versatility and performance advantages are undeniable. The ongoing evolution towards smarter, more efficient, and highly integrated systems promises to further enhance their value proposition, making them an increasingly indispensable asset for industries aiming for sustainable and optimized operations. The initial investment is quickly recouped through long-term savings in energy, maintenance, and the avoidance of costly downtime, cementing the Air Suspension Centrifugal Blower's status as a transformative technology.
1. What is the primary difference between an air suspension centrifugal blower and a traditional geared centrifugal blower?
The primary difference lies in the bearing system and drive mechanism. Air suspension centrifugal blowers use air foil bearings that create a cushion of air to support the rotating shaft, eliminating physical contact and the need for oil lubrication. They also typically feature a direct-drive high-speed motor. Traditional geared centrifugal blowers, in contrast, use mechanical bearings and a gearbox that requires oil for lubrication and cooling, leading to friction, noise, and maintenance associated with oil management.
2. How does an air suspension centrifugal blower achieve its high energy efficiency?
High energy efficiency is achieved through several synergistic factors: the elimination of mechanical friction in the air suspension bearings, the use of a highly efficient direct-drive permanent magnet synchronous motor, and optimized aerodynamic design of the impeller and volute. Furthermore, the integration of variable frequency drives (VFDs) allows for precise speed control, ensuring the blower only consumes the energy necessary for the current demand, avoiding wasteful over-pressurization.
3. What are the main benefits of oil-free operation in these blowers?
The main benefits of oil-free operation include the delivery of completely clean, contamination-free air, which is crucial for sensitive applications like food processing, pharmaceuticals, and electronics. It also eliminates the costs and environmental impact associated with purchasing, storing, and disposing of lubricating oil, as well as the maintenance tasks related to oil changes and filter replacements.
4. Can air suspension centrifugal blowers operate continuously for long periods?
Yes, air suspension centrifugal blowers are designed for continuous, long-term operation. Their non-contact bearing system minimizes wear and tear, leading to exceptionally long operational lifespans with very high reliability. This makes them ideal for critical industrial processes that require uninterrupted airflow.
5. What kind of maintenance is typically required for an air suspension centrifugal blower?
Maintenance for air suspension centrifugal blowers is significantly reduced compared to traditional blowers. The primary maintenance tasks include regular inspection and replacement of the inlet air filters to ensure clean air supply. Other maintenance involves routine monitoring of operational parameters via the control system, periodic visual inspections, and occasional software updates, rather than complex mechanical overhauls or oil management.
6. Are air suspension centrifugal blowers suitable for applications with fluctuating air demand?
Absolutely. Thanks to the integration of Variable Frequency Drives (VFDs) and sophisticated control systems, air suspension centrifugal blowers can precisely adjust their speed and output to match fluctuating air demand. This allows them to maintain high efficiency across a wide turndown ratio, providing only the necessary airflow and pressure and preventing energy waste from over-supply.
7. How do air suspension centrifugal blowers contribute to a better working environment?
These blowers contribute to a better working environment primarily through their exceptionally low noise and vibration levels. The non-contact operation of the air bearings and the precision balancing of components significantly reduce acoustic emissions, creating a quieter and more comfortable workspace. This also minimizes the need for costly sound attenuation measures.
