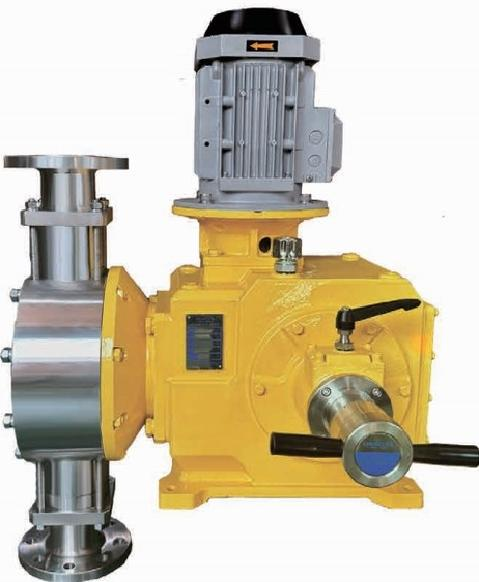

GD diaphragm metering pump
1. Flow range: Qmax = 6000L/H
2. Pressure range: Pmax = 0.8 MPa
3. Standard configuration: Materials: PVC, PVDF/PTFE, 304/316L, 380V/ 50Hz
4. Optional Configurations: Motor frequency conversion/explosion-proof, special voltage/frequency, pump head material and inlet/outlet connection method can be customized.
PERFORMANCE PARAMETER
Model | flow L/h | pressure MPa | Pump speed SPM | Diaphragm specifications mm | Motor power kW | Inlet and outlet diameter connection method | ||
PVC | PVDF/PTFE | 304/316L | ||||||
GD2000/0.8 | 2000 | 0.8 | 96 | 260 | 3 | DN50 flange HG/T20592 RF | DN50 flange HG/T20592 RF | DN50 flange HG/T20592 RF |
GD3000/0.7 | 3000 | 0.7 | 144 | |||||
GD4000/0.7 | 4000 | 0.7 | 96 | 260 | 3 | DN65 flange HG/T20592 RF | DN65 flange HG/T20592 RF| | DN65 flange HG/T20592 RF |
GD6000/0.5 | 6000 | 0.5 | 144 | |||||
Note: Diaphragm rupture detection and dual diaphragm rupture alarm are optional.
