Process Principle

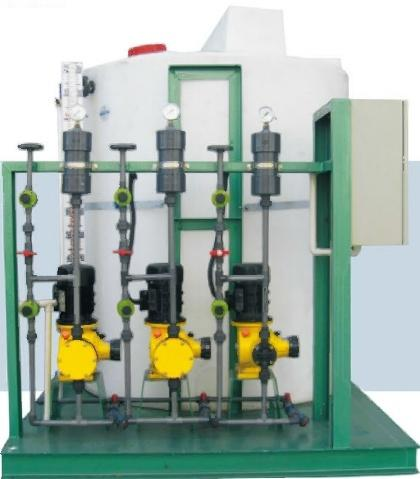

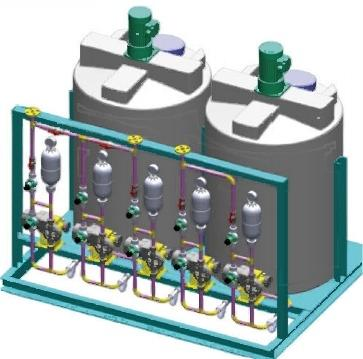

The additive dosing system is used for the quantitative addition of coolant cleaning agents in electronics manufacturing. In cleanrooms, This dosing device ensures reduced dosing errors, and the reagent preparation and dosing system can be operated unattended.
Dosage: 200 ml / min Additional points: 4
Application pressure: 2.7 bar
System components: 1. PE Medicine box 2, electrical control box 3. Preparation tank 4. Medicine storage tank 5. Metering pump
6. Solenoid valve 7. Level gauge 8. Flow switch 9. Manual ball valve
Application areas: semiconductor and electronics industries
Data parameters
Specifications and Models | Configuration parameters | Control method | |||
Volume (L) | Pump and tank configuration | Material | External dimensions L×W×H (mm) | ||
CTO-1□□/1□□ | 30-20000 | 1 barrel 1 pump | 304, PP, PE Carbon steel, rubber-lined steel UPVC | Minimum: 350×350×400 Maximum: 3150 × 3150 × 335 0 | Manual button/automatic instrument control 350 / PLC Touchscreen / DCS Remote Control /GPRS wireless/Special requirements 350 (explosion-proof, frequency conversion, etc.) 350 power supply: 220V/380V 50Hz |
CTD-1□□/2□□ | 1 barrel 2 pumps | Minimum: 350×350×400 Maximum: 3150×3150×3 | |||
CTO-2□□/1□□ | 2 barrels and 1 pump | Minimum: 700×500×400 Maximum: 6900×3500×3 | |||
CTD-2□□/2□□ | 2 barrels 2 pumps | Minimum: 700×500×400 Maximum: 6900×3500×3 | |||
CTO-2□□/3□□ | 2 barrels 3 pumps | Minimum: 700×500×400 Maximum : 6900×3500×335 0 | |||
