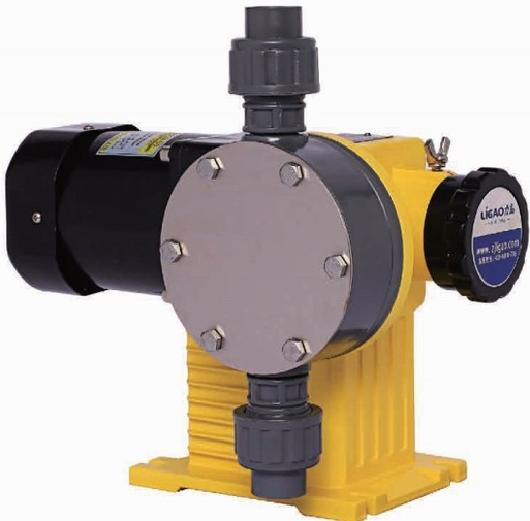

Features PRODUCT CHARACTERIS TICS
1. Flow range: Qmax = 150L/H
2. Pressure range: Pmax = 1.0 MPa
3. Standard configuration: Material: PVC, PVDF/PTFE, 304/316L, 380V/50Hz
4. Configuration Options: Single-phase motor; pump head material and inlet/outlet connection methods are customizable.
PERFORMANCE PARAMET ER
Model | flow L/h | pressure MPa | Pump speed SPM | Diaphragm specifications mm | Motor power W | Inlet/outlet diameter/connection method | ||
PVC | PVDF/PTFE | 3 041316 L | ||||||
JBB15/1.0 | 15 | 1.0 | 100 |
65 |
60 | φ6x9 PE hose clamps |
Rc 1/2” Internal thread |
10x16 Welding of pipe sleeve |
JBB25/1.0 | 25 | 1.0 | 100 | |||||
JBB40/0.7 | 40 | 0.7 | 150 | |||||
JBB60/0.6 | 60 | 0.6 | 100 |
84 |
DN15 Connector sleeve adhesive joint φ10×14 PE hose clamps | |||
JBB80/0.5 | 80 | 0.5 | 100 | |||||
JBB100/0.4 | 100 | 0.4 | 150 | |||||
JBB130/0.4 | 130 | 0.4 | 150 | |||||
JBB150/0.4 | 150 | 0.4 | 150 | |||||
