A liquid dosing device, often referred to as a dosing pump, metering pump, or chemical injection pump, is a specialized piece of equipment designed to deliver a precise and controlled volume of liquid into a process or system over a specific period. These devices are fundamental to countless industrial, commercial, and laboratory applications where the accurate and repeatable addition of fluids is critical for process control, product quality, safety, or environmental compliance. Unlike general-purpose pumps that prioritize high volume transfer, dosing devices focus on delivering exact quantities, often at low flow rates, into systems that may be under varying pressures.
The importance of precision in liquid dosing cannot be overstated. In water treatment, for example, the accurate addition of disinfectants or pH adjusters ensures public health and prevents corrosion. In chemical manufacturing, precise reagent introduction directly impacts reaction kinetics and product yield. In pharmaceuticals, even slight deviations in active ingredient dosage can have profound consequences. The evolution of liquid dosing technology has progressed from simple manual systems to highly sophisticated, automated devices capable of micro-volume delivery, remote control, and real-time adjustments, making them indispensable tools in modern fluid management. This comprehensive article will explore the intricate mechanisms, diverse types, critical components, vast applications, essential selection criteria, and maintenance best practices for liquid dosing devices, concluding with a look at emerging trends shaping their future.
Liquid dosing devices operate on various principles, each offering distinct advantages suited to different fluid characteristics and application demands. Most fall under the category of positive displacement pumps, meaning they trap a fixed volume of fluid and force it out with each cycle, ensuring accuracy regardless of discharge pressure.
Peristaltic pumps, also known as tube pumps, operate by compressing a flexible tube with rollers or shoes against a pump housing. As the rollers move along the tube, they create a temporary seal, propelling the fluid within the tube forward. When a roller lifts, the tube recovers its shape, creating a vacuum that draws more fluid into the tube. This action provides a gentle, low-shear pumping motion, making them ideal for sensitive, viscous, or abrasive liquids, as well as those containing solids. A key advantage is that the fluid only contacts the inside of the tube, eliminating contamination risks and simplifying maintenance when handling aggressive chemicals.

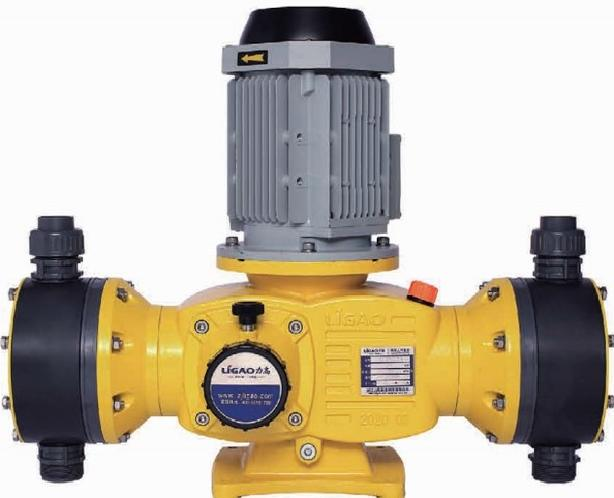

Diaphragm pumps utilize a flexible diaphragm to draw and expel fluid. These pumps can be broadly categorized by their actuation method.

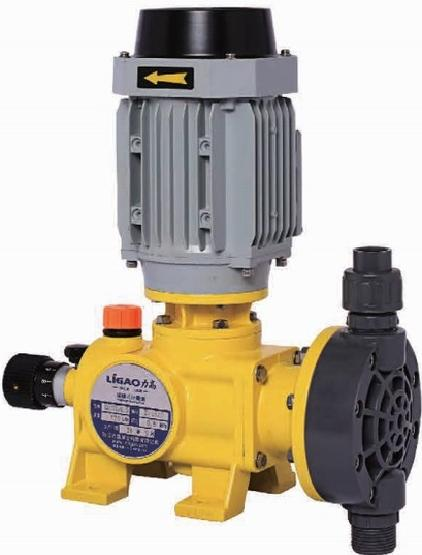

In mechanically actuated diaphragm pumps, a motor drives a connecting rod that directly flexes the diaphragm. As the diaphragm moves back and forth, it creates a vacuum to draw fluid into the pump head and then pushes it out through discharge valves. These are robust and cost-effective, offering good accuracy for many standard dosing applications.

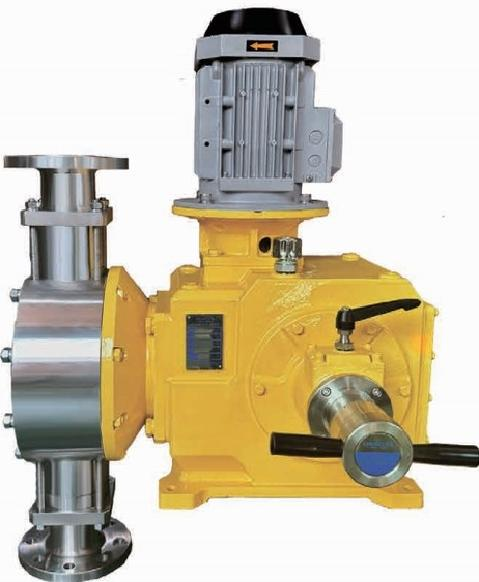

Hydraulic diaphragm pumps employ an intermediate hydraulic fluid (usually oil) between a plunger and the diaphragm. A plunger, driven by a motor, displaces the hydraulic fluid, which in turn flexes the diaphragm. This hydraulic coupling provides a cushioned, stress-free operation for the diaphragm, allowing for higher pressures and longer diaphragm life. They are renowned for their high accuracy and reliability, particularly with hazardous or abrasive chemicals, as the diaphragm acts as a leak-proof barrier.
Solenoid-driven diaphragm pumps use an electromagnet to rapidly pulsate the diaphragm. When the solenoid is energized, it pulls the diaphragm back, creating suction. When de-energized, a spring pushes the diaphragm forward, expelling the liquid. These pumps are often compact, energy-efficient, and provide pulse-based dosing, with flow rates typically adjusted by varying the stroke frequency or length. They are widely used for smaller-scale chemical dosing applications due to their simplicity and digital control capabilities.

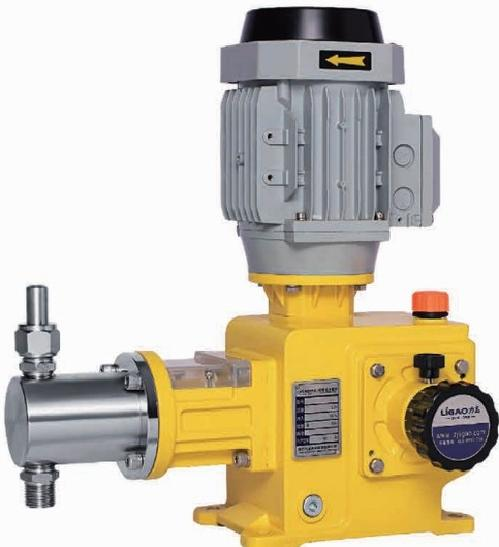

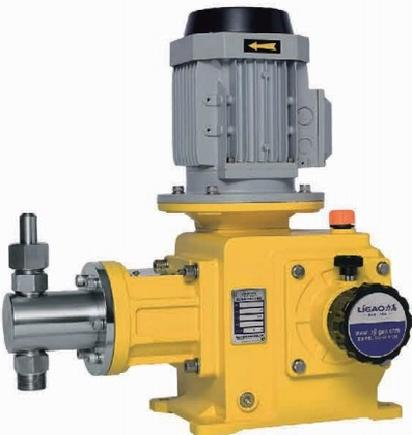

Piston or plunger pumps use a reciprocating piston or plunger within a cylinder to displace fluid. As the piston retracts, it draws fluid into the cylinder; as it advances, it pushes the fluid out. These pumps are known for their very high accuracy, consistent flow rates, and ability to handle extremely high discharge pressures. They are particularly favored for metering non-abrasive fluids where precise, high-pressure injection is required, such as in analytical instrumentation or hydraulic systems. However, they typically require seals around the piston, which can wear and may not be suitable for abrasive or corrosive liquids that could damage the seals.
Gear pumps employ rotating gears to trap and transfer fluid. As the gears rotate, they create expanding and contracting cavities, drawing liquid into the pump and then pushing it out. These are positive displacement pumps known for their smooth, pulsation-free flow and ability to handle highly viscous fluids efficiently. They are often used in applications requiring continuous, precise delivery of lubricants, fuels, or polymer melts.
While specific designs vary, most liquid dosing devices share several fundamental components that enable their precise functionality.
The pump head is the part of the dosing device that comes into direct contact with the liquid being dosed. It typically includes the inlet and outlet connections, suction and discharge valves, and the mechanism directly responsible for fluid displacement (e.g., diaphragm, piston, tubing). The materials of construction for the pump head are critical and must be carefully selected based on chemical compatibility with the dosed fluid, operating temperature, and pressure. Common materials include PVC, PVDF, polypropylene, stainless steel, and PTFE.
The drive mechanism is responsible for actuating the pump head to achieve fluid displacement. This usually involves an electric motor, which can be AC or DC, and may include a gearbox or cam mechanism to convert rotational motion into the reciprocating action required by diaphragm or piston pumps, or to directly drive rollers in peristaltic pumps or gears in gear pumps. Solenoid-driven pumps use an electromagnetic coil for actuation. The drive mechanism dictates the pump's speed and power, influencing its maximum flow rate and pressure capabilities.
Modern liquid dosing devices incorporate sophisticated control systems to ensure accuracy and enable automation. These systems can range from simple manual stroke length or frequency adjustments to advanced microprocessor-based controllers. Key control features often include:
* Stroke Length Adjustment: Mechanically or electronically varying the distance the diaphragm or piston travels to change the volume displaced per stroke.
* Stroke Frequency Adjustment: Controlling the number of strokes per minute, directly impacting the overall flow rate.
* Integrated Sensors: Such as flow meters, pH sensors, or level sensors in the dosing tank, to provide feedback for automated adjustments.
* Digital Interfaces: LCD screens, touch panels, and communication protocols (e.g., 4-20mA, Modbus, Profibus) for remote monitoring and control, allowing integration into larger SCADA or DCS systems.
Non-return valves, typically ball or check valves, are essential for ensuring unidirectional flow. The suction valve opens to allow liquid into the pump head during the suction stroke and closes during the discharge stroke. Conversely, the discharge valve remains closed during suction and opens to allow liquid out during discharge. The materials and design of these valves are crucial for pump accuracy and to prevent backflow or siphoning.
High-quality tubing and secure connections are vital for reliable and leak-free operation. Tubing must be chemically compatible with the dosed fluid and rated for the operating pressure. Common materials include PVC, polyethylene, PTFE, and Tygon. Fittings and connectors ensure a tight seal and facilitate easy installation and maintenance.

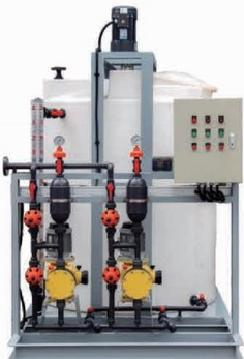

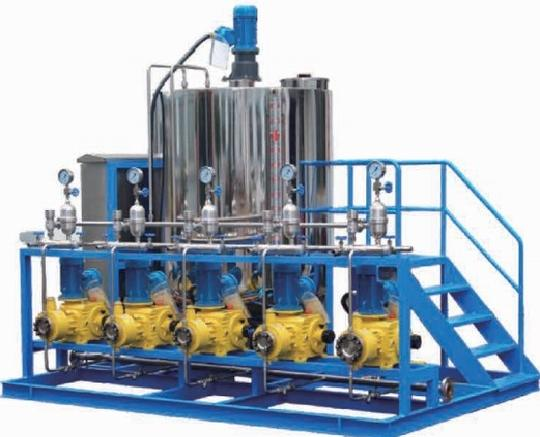

A reservoir or dosing tank holds the liquid to be dosed. These tanks often include level sensors to monitor fluid inventory, mixers to maintain homogeneity of solutions, and sometimes heaters or coolers for temperature control. Proper tank design, including sizing and ventilation, is important for safety and effective dosing.
Liquid dosing devices can be classified in various ways, reflecting their operational characteristics and intended uses.
These require human intervention to adjust settings like stroke length or frequency. They are suitable for applications where dosing parameters are static or changed infrequently, and where continuous supervision is feasible.
Equipped with sensors and control logic, these devices can automatically adjust their output based on real-time process parameters (e.g., pH, conductivity, flow rate). They are essential for maintaining stable process conditions without constant human oversight.
The most common type, where a fixed volume of liquid is displaced per stroke or rotation. Accuracy is based on the precision of this volume.
These systems dose liquids by weight, typically using scales or load cells. Gravimetric dosing offers extremely high accuracy, as it directly measures the mass of the dosed liquid, overcoming issues related to fluid density changes or air bubbles. They are often used in critical applications like pharmaceutical manufacturing.
Provides a steady, uninterrupted flow of liquid into the process. This is common for maintaining constant concentrations or conditions.
Delivers a specific, predetermined volume of liquid in discrete batches. This is used for precise additions in sequential processes or recipes.
Liquid dosing devices are ubiquitous across a multitude of industries, highlighting their critical role in modern industrial processes.
This is one of the largest application areas. Dosing pumps are used to inject chlorine for disinfection, coagulants (e.g., alum, ferric chloride) for flocculation, soda ash or caustic soda for pH adjustment, fluorides for public health, and various anti-scalants or corrosion inhibitors.
In chemical manufacturing, dosing devices precisely add reagents, catalysts, acids, bases, and solvents into reaction vessels, mixing tanks, or pipelines. Accuracy is vital for reaction control, product purity, and minimizing waste. They also handle the transfer of corrosive or hazardous chemicals safely.
Here, dosing devices manage the addition of flavorings, colorings, preservatives, vitamins, cleaning agents (CIP systems), and other additives. Applications include precise ingredient blending, sanitization of equipment, and carbonation control in beverages. The hygienic design and material compatibility are crucial.
These industries demand the highest levels of precision and sterility. Dosing pumps are used for mixing active pharmaceutical ingredients (APIs), adding buffers and media in bioreactors, precisely filling vials and syringes, and for CIP/SIP (Clean-in-Place/Sterilize-in-Place) processes. Peristaltic and hydraulic diaphragm pumps are often favored due to their aseptic and leak-proof characteristics.
Dosing equipment is used for injecting fertilizers, pesticides, herbicides, and growth regulators into irrigation systems (fertigation) or directly onto crops. This ensures efficient nutrient delivery and pest control while minimizing chemical waste.
In both upstream and downstream operations, dosing pumps inject corrosion inhibitors, anti-foaming agents, demulsifiers, and other chemicals into pipelines, wellheads, and processing units to optimize flow, prevent equipment damage, and enhance separation processes. They are built for high pressures and harsh conditions.
Dosing devices control the addition of sizing agents, dyes, defoamers, bleaching chemicals, and pH adjusters during various stages of paper production to achieve desired product properties and process efficiency.
Chemical reagents for flotation, leaching, pH control, and dust suppression are precisely dosed in mining operations. The ability to handle abrasive slurries and corrosive chemicals is often a key requirement.
Compact and highly precise dosing pumps are integral to analytical instrumentation, automated liquid handling systems, chromatography, and various experimental setups requiring accurate reagent delivery or sample preparation.
Choosing the appropriate liquid dosing device is critical for the success and efficiency of any application. Several factors must be carefully evaluated.
These are the most fundamental parameters. The required minimum and maximum flow rates (e.g., ml/min, L/hr) and the system back pressure (maximum discharge pressure) must be accurately determined. The pump's rated flow range and pressure capabilities must encompass these operational needs, preferably with a reasonable margin.
The materials of all parts that come into contact with the dosed liquid (pump head, diaphragm, valves, tubing, seals) must be chemically resistant to it. Incompatible materials can lead to corrosion, degradation, leaks, and potential safety hazards. Material selection guides and manufacturer recommendations are essential resources here.
The required level of precision for the application dictates the type of dosing device. Some processes demand extremely high accuracy (e.g., ±0.5%), typically achieved by hydraulic diaphragm or piston pumps, or gravimetric systems. Others might tolerate wider tolerances. Repeatability, the ability to consistently deliver the same dose over time, is equally important.
The characteristics of the liquid being dosed significantly influence pump choice:
* Viscosity: Highly viscous fluids (e.g., polymers, resins) may require gear pumps or specialized peristaltic pumps.
* Abrasiveness: Slurries or liquids with suspended solids can rapidly wear out piston seals or mechanically actuated diaphragms, making peristaltic or hydraulic diaphragm pumps with isolated liquid ends more suitable.
* Corrosiveness/Hazardous Nature: Aggressive acids, bases, or toxic chemicals necessitate leak-proof designs (e.g., diaphragm pumps) and robust, chemically resistant materials.
* Temperature: Operating temperature ranges can affect fluid viscosity and material compatibility.
Consider whether manual adjustment is sufficient or if automatic control is needed. This includes deciding on stroke length/frequency adjustment capabilities, external control signals (e.g., 4-20mA, pulse input), and compatibility with existing plant control systems (PLC, SCADA).
The ambient conditions, such as temperature, humidity, dust, and potential for explosive atmospheres, affect the choice of motor, enclosure rating (e.g., NEMA, IP), and construction materials for the entire device.
Evaluate not only the initial purchase price but also long-term operational costs, including energy consumption, maintenance, and spare parts. A higher upfront investment in a more efficient or durable pump might result in significant savings over its lifespan.
Proper installation and diligent maintenance are crucial for maximizing the performance, extending the lifespan, and ensuring the safety of any liquid dosing device.
Choose a stable, well-ventilated location that is easily accessible for operation and maintenance. Ensure adequate clearance around the pump for heat dissipation and servicing. Protect the pump from direct sunlight, extreme temperatures, and corrosive fumes if not specifically designed for such conditions.
Mount the pump securely on a solid, level surface to minimize vibration. Anti-vibration pads may be used for sensitive applications or to reduce noise. Ensure the pump is installed according to the manufacturer's specified orientation (e.g., horizontal or vertical).
Use chemically compatible tubing or piping of appropriate diameter for both suction and discharge lines. Keep suction lines as short and straight as possible to prevent cavitation. Avoid sharp bends, kinks, or excessive elevation changes. Install a foot valve with a strainer at the end of the suction line in the dosing tank to maintain prime and filter out large particles. Install a back-pressure valve on the discharge line (if not integrated) to ensure consistent pressure and prevent siphoning. A pulsation dampener may be added for very smooth flow.
Connect the pump to the correct voltage and frequency as specified by the manufacturer. Ensure proper grounding and install appropriate electrical protection devices, such as circuit breakers and thermal overload protection, in compliance with local electrical codes. Verify motor rotation direction upon initial startup.
Visually inspect the pump, tubing, and connections regularly for signs of wear, leaks, corrosion, or damage. Check for loose fittings or mounting bolts.
If a suction strainer or inlet filter is used, clean it periodically to prevent clogging, which can lead to reduced flow and cavitation.
For diaphragm and piston pumps, the diaphragm or seals are wear parts. Follow the manufacturer's recommended replacement schedule, which may be based on operating hours, fluid type, or visual inspection. Regular replacement prevents leaks and maintains dosing accuracy.
Inspect and clean the suction and discharge valves to ensure they are free from debris or chemical buildup, which can impair their seating and lead to inaccurate dosing or loss of prime.
Regularly calibrate the dosing device to verify and maintain its accuracy. This typically involves measuring the actual volume dosed over a period and adjusting the pump's settings accordingly. Calibration frequency depends on the application's criticality and required precision.
For pumps with moving parts outside the liquid end (e.g., gearboxes, bearings), follow manufacturer guidelines for lubrication type and schedule. Many modern pumps feature sealed or permanently lubricated bearings requiring no field lubrication.
Be prepared to troubleshoot common issues such as loss of prime (check suction line, foot valve, air leaks), reduced flow (check for clogs, worn valves, incorrect stroke settings), or leaks (check connections, diaphragm, seals).
Liquid dosing devices offer a distinct set of advantages and some limitations depending on their type.
* High Accuracy and Repeatability: Essential for critical processes, ensuring consistent product quality and process control.
* Wide Chemical Compatibility: Available in various materials to handle almost any fluid, from mild to highly corrosive or hazardous.
* Versatility: Capable of dosing a wide range of flow rates, from microliters to thousands of liters per hour, and handling various pressures.
* Safety: Leak-proof designs (diaphragm, peristaltic) safely handle dangerous chemicals, minimizing operator exposure.
* Automation: Easily integrated into automated control systems for remote operation, monitoring, and precise adjustment.
* Energy Efficiency: Many types, especially modern designs, are energy-efficient for their specific flow and pressure range.
* Low Maintenance (for some types): Peristaltic and hydraulic diaphragm pumps have minimal wetted wear parts, reducing maintenance.
* Pulsation (for some types): Reciprocating pumps (diaphragm, piston) can produce pulsating flow, which may require pulsation dampeners in sensitive applications.
* Limited Flow Range (per unit): Each pump size has a specific flow range, requiring multiple pumps for very wide variations in demand.
* Maintenance of Wear Parts: Diaphragms, tubing, seals, and valves are wear parts that require periodic replacement, especially with abrasive fluids.
* Cost: High-precision dosing pumps can have a higher initial capital cost compared to simpler transfer pumps.
* Sensitivity to Suction Conditions: Some pumps are sensitive to suction lift or cavitation, requiring careful installation.
The field of liquid dosing devices is continually evolving, driven by demands for greater precision, efficiency, connectivity, and environmental responsibility.
The integration of smart sensors, microprocessors, and Internet of Things (IoT) connectivity is a major trend. Future dosing devices will feature advanced diagnostics, predictive maintenance capabilities, remote monitoring, and real-time data analytics. This enables pumps to communicate seamlessly with cloud-based platforms or plant control systems, optimizing performance, preempting failures, and enhancing overall process intelligence. Artificial intelligence (AI) and machine learning (ML) algorithms could further optimize dosing parameters based on process history and real-time data.
Ongoing research in material science will yield pump heads, diaphragms, and tubing with even greater chemical resistance, temperature resilience, and extended lifespan. The development of advanced polymers and composites will enable the safe handling of increasingly aggressive or exotic fluids. Simultaneously, miniaturization will continue, producing compact, high-precision dosing devices for portable applications, embedded systems in analytical instruments, and microfluidic research.
With growing emphasis on energy conservation, next-generation dosing devices will feature ultra-high efficiency motors (e.g., IE5 rated), optimized pump hydraulics, and advanced control algorithms to minimize power consumption. Developments in solar-powered or battery-operated dosing units will also cater to remote or off-grid applications. Furthermore, designs will focus on reducing material waste during manufacturing and offering easier recycling options at the end of the product lifecycle.
Beyond basic feedback control, future systems will incorporate more sophisticated control strategies, such as adaptive control that automatically adjusts dosing based on changing process dynamics, or model predictive control for optimal chemical usage. Integrated calibration features will simplify validation and ensure continuous accuracy.
Manufacturers will increasingly offer modular dosing systems that allow for easy customization and expansion. This includes interchangeable pump heads, multiple dosing channels, and flexible connectivity options, enabling users to adapt systems to evolving process needs without complete overhauls.
A liquid dosing device, in its myriad forms and complexities, is far more than a simple pump; it is a vital instrument for precision control in a world that increasingly demands exactitude. From ensuring the safety of drinking water to perfecting the intricate formulations of life-saving medicines, its role is indispensable. The foundational principles of positive displacement, whether through peristaltic tubes, flexing diaphragms, reciprocating pistons, or rotating gears, provide the accuracy that defines these devices. Understanding their components, discerning the appropriate type for specific applications, and adhering to rigorous installation and maintenance protocols are all essential for maximizing their profound impact. As industries advance towards greater automation, efficiency, and sustainability, the liquid dosing device will continue to evolve, integrating smart technologies and advanced materials to meet future challenges and maintain its pivotal position in fluid management.
