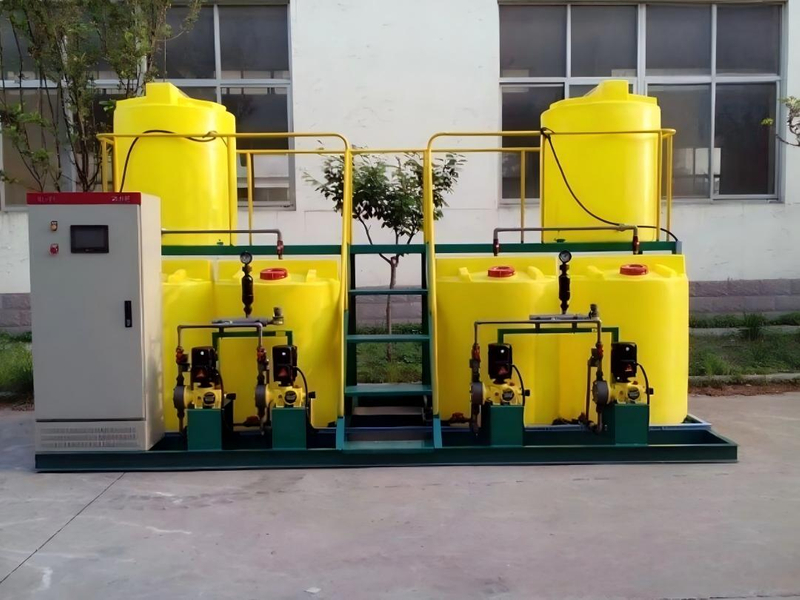

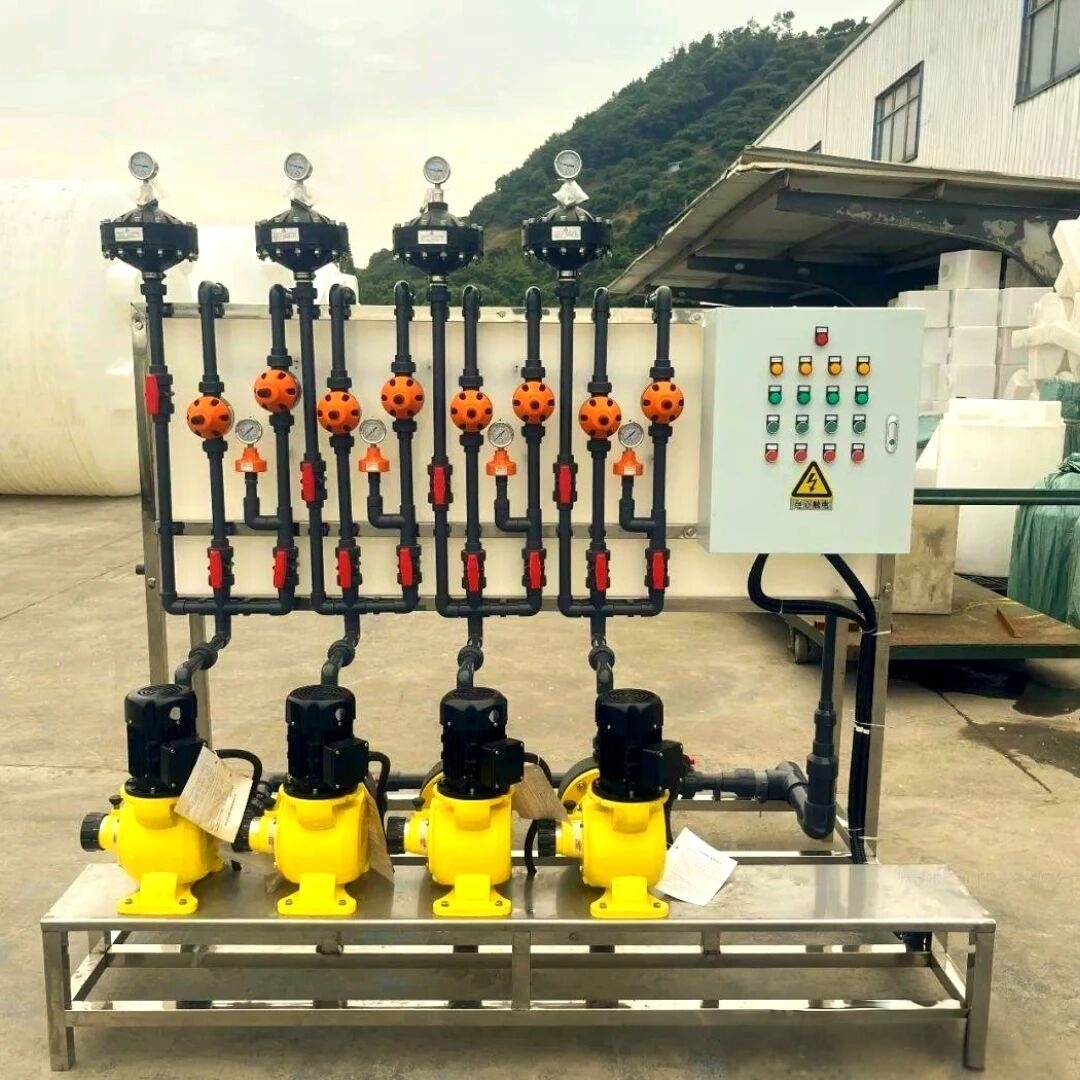

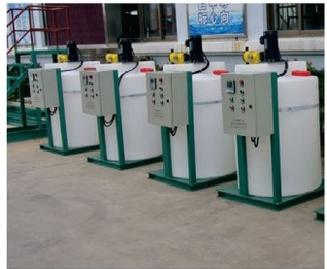

Food Additive Dosing Device

Equipment Principle

In food additive dosing applications, metering pumps typically handle small volumes, often requiring only a single or multiple electromagnetic pumps connected via flexible hoses. For such systems, the pump should be placed directly on the dosing tank. The tank has pre-installed connection points for the metering pump and agitator. The metering pump, flow monitor, foot valve with level switch, tank, drain valve, and agitator can all be integrated directly onto the dosing tank, offering flexible configuration, minimal space requirements, and reduced costs. Other accessories, except for the injection valve, such as pulse dampers, back pressure valves, and control instruments, are integrated into a single PVC panel. On the board, they are placed in different areas. In special cases, different medicine barrels can be used to integrate the accessory back panel with the medicine barrel to meet different customer needs.

Product composition and features:

1. Metering pump 2. Dosing tank 3. Filter bottom valve 4. Dosing port 5. Mixer

Furthermore, depending on customer requirements, the dosing control system can also be equipped with equipment and components such as a chemical tank, a stirrer, and an electrical control system. In open-loop proportional dosing mode, the flow sensor (pulse flow meter) measures the actual flow rate of the medium being treated (such as water) in real time. The dosing control system automatically and accurately adds chemical solution according to the concentration set by the user. The entire process is fully automatic and requires no human intervention.

Application areas: Food and beverage industry

Data parameters

Engineering diagram

① metering pump

② PE Solution tank

③ Filter bottom valve

④ Dosing port

⑤ stirring paddle

⑥ mixer
