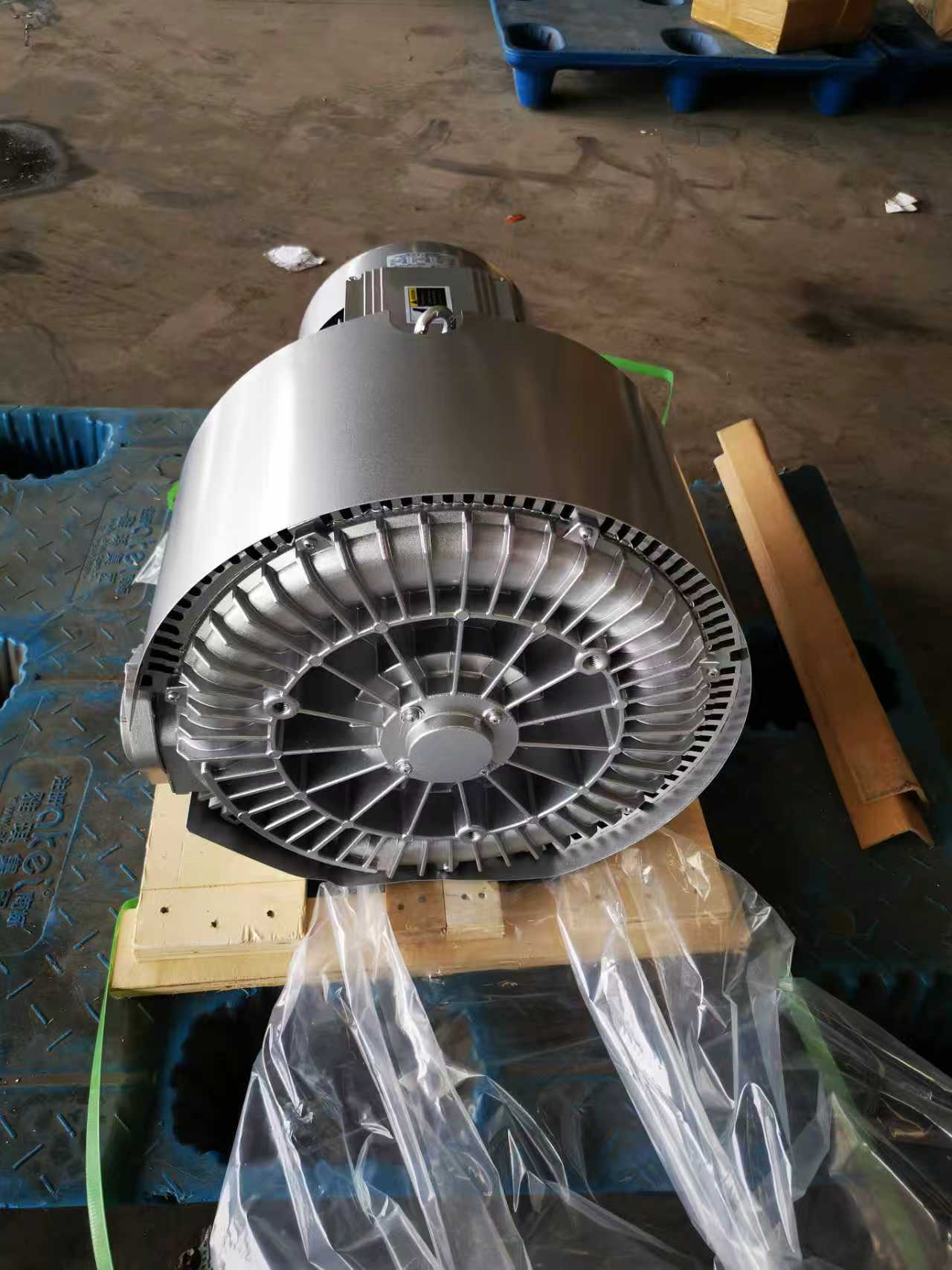

The high-pressure vortex blower, also commonly referred to as a regenerative blower, side channel blower, or ring blower, represents a crucial piece of industrial equipment designed to provide substantial airflow at elevated pressures. Unlike centrifugal blowers that primarily focus on high volume at low to moderate pressure, or positive displacement blowers that deliver constant volume regardless of pressure, vortex blowers occupy a unique niche by offering a balance of moderate to high flow rates with significant pressure capabilities. Their distinctive operating principle, which harnesses the kinetic energy of a rapidly rotating impeller to create a regenerative airflow path, allows them to achieve impressive performance within a compact and robust design. This makes them indispensable in a wide array of applications across various industries where a reliable source of clean, oil-free compressed air or vacuum is essential. From aeration in wastewater treatment plants and pneumatic conveying in material handling to drying processes in manufacturing and vacuum clamping in automation, the high-pressure vortex blower provides an efficient and cost-effective solution. This article will delve into the intricate working principles, key features, diverse applications, critical selection criteria, and proper installation and maintenance practices associated with these versatile industrial workhorses, concluding with a look at future trends and innovations that continue to enhance their capabilities.
The operational brilliance of a high-pressure vortex blower lies in its unique aerodynamic design, which fundamentally differs from other types of air movers. Instead of relying on direct compression or simple air displacement, it utilizes a regenerative process that continuously re-energizes the air, building pressure progressively.
At the heart of the vortex blower is a precisely engineered impeller, which is directly mounted onto the motor shaft, typically without any contact with the housing. This non-contact design is fundamental to the blower's oil-free operation and extended lifespan. The impeller features numerous radially arranged blades on its periphery. As the motor rotates the impeller at high speeds, these blades impart kinetic energy to the incoming air.
The air enters the blower through an inlet port and is immediately captured by the rotating impeller blades. Centrifugal force generated by the impeller rotation flings the air outwards into a toroidal (doughnut-shaped) side channel or ring channel that encircles the impeller. This side channel is a critical component, as it guides the air back towards the base of the impeller blades, where it is "regenerated" or re-accelerated. This process of the air being propelled outwards, moving into the side channel, and then being drawn back to the impeller base to be re-accelerated, repeats multiple times (typically many cycles) as the air travels along the circumference of the side channel from the inlet to the outlet. Each "regeneration" cycle adds kinetic energy to the air, incrementally increasing its velocity and, consequently, its pressure.
With each pass through the impeller blades, the air gains speed and experiences a pressure rise. This cumulative effect is what allows the vortex blower to build significant differential pressure (either positive pressure or vacuum) despite its relatively simple construction. By the time the air reaches the outlet port, it has undergone numerous accelerations and decelerations within the regenerative channel, resulting in a continuous, pulsation-free flow of high-pressure air. The efficiency of this pressure generation is highly dependent on the design of the impeller blades, the geometry of the side channel, and the rotational speed of the impeller. The absence of sliding or contacting parts in the air path ensures that the generated air is free from oil contamination, making these blowers suitable for sensitive applications.
High-pressure vortex blowers offer a compelling set of features and advantages that contribute to their widespread adoption in industrial settings.
One of the primary benefits is their ability to deliver a substantial volume of air at relatively high pressures, or to generate a deep vacuum. This performance profile fills the gap between low-pressure centrifugal fans and high-pressure positive displacement compressors, making them ideal for applications requiring more than just airflow but less than extreme compression.
Despite their impressive output, vortex blowers boast a remarkably compact footprint. Their integral motor and impeller design, coupled with the efficient regenerative principle, allows for a powerful air mover that occupies minimal space, which is a significant advantage in facilities where space is at a premium.
The non-contacting nature of the impeller and housing, along with the absence of wearing parts like pistons, valves, or sliding vanes in the air path, translates directly into exceptionally low maintenance requirements. There are no parts to lubricate in the air stream, reducing the need for routine servicing and spare parts. Maintenance typically involves occasional bearing lubrication (for models with separate bearings) or simply ensuring clean intake air.
Compared to many other types of blowers and compressors, high-pressure vortex blowers operate with significantly lower noise levels. The smooth, continuous airflow and balanced rotating components minimize vibrations and acoustic emissions, contributing to a more comfortable and compliant working environment.
Since there is no oil or grease within the air compression chamber, the air discharged from a vortex blower is inherently clean and oil-free. This characteristic is critical for applications in industries such as food and beverage, pharmaceuticals, electronics, and medical, where air purity is paramount to prevent contamination of products or processes.
Modern high-pressure vortex blowers are designed with energy efficiency in mind. Their aerodynamic profiles and direct-drive motor configurations optimize power consumption relative to the delivered pressure and flow. Advances in motor technology, such as IE3 and IE4 efficiency classes, further enhance their energy-saving potential, leading to lower operating costs over their lifespan.
Constructed from robust materials, often aluminum alloys or cast iron, and featuring sturdy, maintenance-free bearings, these blowers are built to withstand demanding industrial environments. Their simple, resilient design ensures a long operational life, even under continuous duty cycles, making them a reliable long-term investment.
Understanding the primary components of a high-pressure vortex blower provides insight into its functional integrity and robust design.
The impeller is the critical dynamic component, typically made from a lightweight yet strong aluminum alloy. It is a single-piece casting with numerous radially arranged blades on its outer circumference. The precision balancing of the impeller is crucial for smooth, vibration-free operation at high rotational speeds. Its design is tailored to maximize the regenerative effect, efficiently transferring kinetic energy to the air.
The blower casing, usually made of cast aluminum or cast iron, houses the impeller and forms the regenerative side channel. It is precisely machined to ensure minimal gaps between the impeller tips and the channel walls, which is essential for efficient pressure build-up. The casing also incorporates the inlet and outlet ports for air entry and exit. Its robust construction provides structural integrity and noise dampening.
The motor is almost always a standard industrial electric motor, typically a three-phase asynchronous motor, directly coupled to the impeller shaft. This direct-drive arrangement eliminates the need for belts or gears, reducing power losses and maintenance. Modern blowers often integrate high-efficiency motors (e.g., IE3 or IE4 rated) to optimize energy consumption. The motor is sized to match the blower's performance requirements, ensuring sufficient power for continuous operation under specified load conditions.
These are the entry and exit points for the air. The inlet often includes a screen or filter to prevent foreign particles from entering the blower and potentially damaging the impeller or affecting performance. The outlet directs the high-pressure air to the application. Both ports are designed for efficient airflow with minimal pressure drop.
High-quality, often sealed, bearings support the impeller shaft and are designed for long life and minimal maintenance. The primary bearings are located in the motor, supporting the combined motor and impeller shaft. While the air path itself is non-contacting and oil-free, seals are present around the shaft where it passes from the motor housing into the blower casing to prevent air leakage and ensure the integrity of the air path. These seals are usually labyrinth seals or mechanical seals, chosen for their durability and low friction.
Various accessories enhance the functionality and protection of vortex blowers. These can include:
* Inlet Filters: To ensure clean air intake, preventing dust and debris from entering the blower.
* Pressure Relief Valves: To protect the blower from excessive pressure build-up in case of blockages or downstream resistance, often necessary to prevent motor overload.
* Vacuum Relief Valves: To protect the blower from excessive vacuum levels.
* Check Valves: To prevent backflow of air when the blower is switched off.
* Silencers: For further noise reduction, especially in noise-sensitive environments.
* Pressure Gauges/Vacuum Gauges: For monitoring operational parameters.
* Frequency Converters (VFDs): To allow variable speed operation, enabling precise control over flow and pressure to match dynamic process requirements and maximize energy savings.
The versatility of high-pressure vortex blowers makes them suitable for an extensive range of applications across numerous industries.
In general industrial settings, they are used for air knives to dry components, blowing off dust and debris from surfaces before painting or packaging, and providing air for combustion in small furnaces or burners. Their consistent, oil-free air is valuable for many manufacturing stages.
Vortex blowers play a significant role in environmental applications, particularly in aeration for wastewater treatment. They provide oxygen to biological processes in activated sludge tanks, facilitating the breakdown of organic pollutants. They are also used for biogas desulfurization systems and landfill gas extraction.
The need for hygienic, oil-free air is paramount in the food and beverage industry. Vortex blowers are employed for drying bottles and cans after washing, aeration in fermentation processes, product transport via air cushion, and vacuum holding for packaging machinery.
For medical and pharmaceutical applications, air purity is critical. These blowers provide clean air for medical vacuum systems, dental suction, laboratory aeration, and pneumatic tube systems for transporting samples or documents within hospitals.
In aquaculture, vortex blowers are essential for providing aeration to fish and shrimp ponds. The oxygenated water promotes healthy growth and prevents oxygen depletion, which can be detrimental to aquatic life.
The printing industry uses vortex blowers for paper separation, sheet feeding, and vacuum hold-down on printing presses. In packaging, they are used for vacuum gripping, opening bags, and drying operations on production lines.
Pneumatic conveying systems, which transport granular or powdered materials through pipelines using air pressure or vacuum, frequently utilize vortex blowers. They are ideal for moving plastics pellets, grains, powders, and other bulk solids in manufacturing and processing plants.
Beyond aeration, these blowers are also used for backwashing filters in water purification systems, providing the necessary air volume to dislodge trapped particles and clean the filter media.
Choosing the right high-pressure vortex blower requires careful consideration of several key factors to ensure optimal performance, efficiency, and longevity.
The most fundamental criteria are the specific pressure (or vacuum) level and the corresponding airflow rate (volume) demanded by the application. It is crucial to accurately determine these parameters, often expressed in Pascals (Pa) or millibars (mbar) for pressure, and cubic meters per hour (m³/h) or liters per minute (l/min) for flow. Over-sizing can lead to unnecessary energy consumption, while under-sizing will result in inadequate performance.
The ambient conditions where the blower will operate are vital. Factors such as temperature, humidity, dust levels, and potential exposure to corrosive chemicals need to be assessed. This influences the choice of materials for the blower's construction, motor insulation class, and the type of inlet filter required. For hazardous environments, explosion-proof motors might be necessary.
For applications involving aggressive or corrosive gases, the materials of construction for the blower's wetted parts (those in contact with the air stream) must be compatible with the media being moved. While standard blowers are typically aluminum, specialized coatings or different materials might be required.
In noise-sensitive environments, the blower's acoustic characteristics are important. While vortex blowers are generally quieter than many alternatives, specific installations might require additional silencers or acoustic enclosures to meet local noise regulations or workplace comfort standards.
Energy efficiency is a major operating cost factor. Evaluating the blower's power consumption (kW) relative to its performance (pressure and flow) is crucial. High-efficiency motors (IE3, IE4, or even IE5 rated) can offer significant long-term savings, especially for continuous duty applications. Variable frequency drives (VFDs) can further optimize energy usage by allowing the blower to operate at variable speeds to precisely match demand.
Consider how the blower's operation needs to be controlled. Simple on/off switches might suffice for some applications, while others may require sophisticated control systems, such as VFDs for variable flow/pressure, or integration with a larger process control system (e.g., via PLC). Pressure or vacuum switches can provide automated control based on process demands.
Proper installation and routine maintenance are paramount to ensuring the long-term reliability, efficiency, and performance of a high-pressure vortex blower.
Before installation, verify that the blower's specifications (voltage, frequency, power) match the available electrical supply. Inspect the blower for any shipping damage. Ensure the installation location provides adequate ventilation for cooling and sufficient space for future maintenance access. The mounting surface should be flat, stable, and capable of supporting the blower's weight without vibration.
Most vortex blowers are designed for easy, vibration-free mounting. They can often be installed horizontally or vertically, depending on the model and application. Secure the blower firmly to a solid foundation using appropriate fasteners. Rubber anti-vibration mounts or pads can be used to further reduce vibration transmission to the surrounding structure, enhancing both the blower's lifespan and reducing noise.
Connect the inlet and outlet piping with flexible connectors to absorb any residual vibration and to ease installation. Ensure that the piping is correctly sized for the airflow and designed to minimize pressure losses due to friction or sharp bends. Avoid placing excessive stress on the blower's ports from heavy or unsupported piping. Inlet filters should be installed as close to the blower's inlet as possible.
Connect the motor to the electrical supply according to the manufacturer's instructions and local electrical codes. Ensure correct phasing for three-phase motors to achieve the correct impeller rotation direction. Install appropriate motor protection devices, such as circuit breakers and thermal overload relays, to prevent damage from electrical faults or motor overloads.
Due to their robust, non-contacting design, vortex blowers generally require minimal maintenance.
* Inlet Filter Cleaning/Replacement: This is the most frequent maintenance task. Regularly inspect and clean or replace the inlet filter element to ensure unobstructed airflow and prevent particulate matter from entering the blower. A clogged filter will reduce performance and increase energy consumption.
* Bearing Inspection/Lubrication: While many modern blowers feature permanently lubricated or sealed bearings, some larger models or older designs may require periodic lubrication. Follow the manufacturer's recommendations regarding lubricant type and frequency. Listen for unusual bearing noises.
* Visual Inspection: Periodically check the blower, piping, and connections for any signs of damage, loose fasteners, leaks, or excessive vibration. Ensure ventilation openings are clear of obstructions.
* Performance Monitoring: Monitor pressure/vacuum gauges and current draw to detect any deviations from normal operating parameters, which could indicate a problem.
Common issues are often related to power supply, airflow restrictions, or environmental factors.
* Reduced Flow/Pressure: Check for clogged inlet filters, blockages in the piping, or leaks in the system. Verify correct motor rotation.
* Overheating: Ensure proper ventilation around the blower and that the ambient temperature is within limits. Check for excessive system backpressure.
* Excessive Noise/Vibration: Inspect for loose mounting, damaged bearings, or foreign objects in the impeller. Re-balance the impeller if necessary (typically done by a specialist).
The field of high-pressure vortex blowers, while mature, continues to evolve with advancements focused on efficiency, intelligence, and adaptability.
Future blowers will increasingly incorporate smart sensors and IoT connectivity for predictive maintenance, real-time performance monitoring, and remote diagnostics. This allows for early detection of potential issues, optimizing maintenance schedules and minimizing downtime. Integration with plant-wide control systems will become even more seamless, enabling sophisticated automation and data analysis.
Research into novel materials and coatings will lead to blowers with enhanced corrosion resistance, lighter weight, and improved noise dampening properties. Composite materials and advanced surface treatments could further improve efficiency and extend lifespan, particularly in harsh operating environments.
As energy costs remain a significant concern, innovations in energy recovery are expected. This could involve designs that capture and reuse waste heat generated during blower operation, integrating it into other industrial processes to improve overall system efficiency.
For applications requiring compact, integrated solutions, continued miniaturization of vortex blowers is likely. This will be driven by advancements in motor design, impeller aerodynamics, and manufacturing techniques, enabling high-performance blowers in even smaller packages for embedded applications.
The high-pressure vortex blower stands as a versatile and reliable solution for numerous industrial applications demanding clean, oil-free air or vacuum at significant pressures. Its regenerative operating principle, combined with a robust and compact design, delivers impressive performance with minimal maintenance and quiet operation. From critical processes in environmental technology and food production to essential functions in packaging and material handling, these blowers consistently provide efficient and cost-effective air movement. Careful selection based on specific application requirements and diligent adherence to installation and maintenance guidelines are crucial to harnessing their full potential. As industries continue to seek more efficient and intelligent solutions, ongoing innovations in smart technology, materials science, and energy management promise to further enhance the capabilities and broaden the applicability of high-pressure vortex blowers, solidifying their role as indispensable industrial components.
Q1: What is the primary difference between a high-pressure vortex blower and a centrifugal fan?
A1: The primary difference lies in their pressure generation mechanism and typical applications. Centrifugal fans are designed to move large volumes of air at low static pressure, using a large impeller to create airflow. High-pressure vortex blowers, however, use a regenerative principle where air is repeatedly re-accelerated in a side channel, building much higher static pressure at moderate flow rates. This makes vortex blowers suitable for applications requiring more force or vacuum.
Q2: Can high-pressure vortex blowers be used for both pressure and vacuum applications?
A2: Yes, high-pressure vortex blowers are inherently designed to operate effectively in both pressure (blowing) and vacuum (suction) modes. The same regenerative principle that builds positive pressure can also be used to create a deep vacuum at the inlet, making them highly versatile for various industrial tasks.
Q3: What are the main benefits of using an oil-free high-pressure vortex blower?
A3: The main benefits of an oil-free design include the delivery of clean, uncontaminated air, which is crucial for sensitive applications in industries like food and beverage, pharmaceuticals, and electronics. It also eliminates the need for oil changes or oil filtration in the air path, reducing maintenance costs and environmental impact.
Q4: How does a variable frequency drive (VFD) improve the operation of a high-pressure vortex blower?
A4: A VFD improves operation by allowing variable speed control of the blower's motor. This enables precise adjustment of the airflow and pressure to match dynamic process demands, leading to significant energy savings, reduced wear and tear on the blower, and enhanced process control and flexibility.
Q5: What is the most common maintenance task for a high-pressure vortex blower?
A5: The most common maintenance task for a high-pressure vortex blower is the regular inspection, cleaning, or replacement of the inlet air filter. A clean filter is vital for ensuring optimal performance, preventing contamination, maintaining energy efficiency, and protecting the blower's internal components from particulate matter.
Q6: Are high-pressure vortex blowers typically noisy?
A6: Generally, high-pressure vortex blowers are considered relatively quiet compared to many other types of industrial air compressors or blowers, especially considering their pressure capabilities. Their smooth, non-contacting operation contributes to lower noise levels, though additional silencers can be used for exceptionally noise-sensitive environments.
Q7: What industries commonly use high-pressure vortex blowers?
A7: High-pressure vortex blowers are widely used across diverse industries, including wastewater treatment (aeration), food and beverage (drying, vacuum packaging), pharmaceuticals (clean air, vacuum), material handling (pneumatic conveying), printing (sheet separation, vacuum hold-down), and general manufacturing (air knives, blow-off).
