The efficient and precise application of chemical reagents is fundamental to numerous industrial processes, particularly in water and wastewater treatment. Among the myriad of chemicals used, Polyacrylamide (PAM), often referred to as flocculant or coagulant aid, plays a pivotal role in solid-liquid separation processes. To effectively utilize PAM, especially in its dry powder form, specialized equipment known as a PAM dry powder dosing system is essential. This system automates the preparation, dissolution, and precise dosing of PAM solutions, ensuring optimal performance in various applications such as sludge dewatering, clarification, and industrial process water treatment.
Polyacrylamide is a synthetic polymer with a high molecular weight, primarily used as a flocculant due to its ability to agglomerate fine suspended particles into larger, more easily settleable or filterable flocs. It comes in various forms, including dry powder, emulsion, and liquid, each with its own advantages and suitable applications. Dry powder PAM is often preferred for its cost-effectiveness, high active content, and ease of storage and transport.
PAM functions by two primary mechanisms: bridging and charge neutralization. Its long polymer chains can adsorb onto the surface of multiple discrete particles, effectively "bridging" them together to form larger, denser flocs. Additionally, PAM can neutralize the surface charges of suspended particles, reducing electrostatic repulsion and allowing them to aggregate more readily. The specific type of PAM (anionic, cationic, or nonionic) is selected based on the charge characteristics of the particles to be flocculated and the pH of the wastewater or process stream.
The versatility of PAM makes it indispensable in several industries:
- Wastewater Treatment: Enhancing clarification in primary and secondary sedimentation tanks, improving sludge dewatering efficiency in belt presses, centrifuges, and filter presses.
- Drinking Water Treatment: Aiding in the removal of suspended solids and turbidity to produce potable water.
- Mining and Mineral Processing: Assisting in tailings dewatering, mineral concentration, and clarification of process water.
- Pulp and Paper Industry: Improving fiber retention and white water clarification.
- Textile Industry: Treating dye-containing wastewater.
Given the critical role of PAM, its proper preparation and dosing are paramount for achieving desired treatment outcomes and optimizing chemical consumption. This is where the PAM dry powder dosing system becomes indispensable.

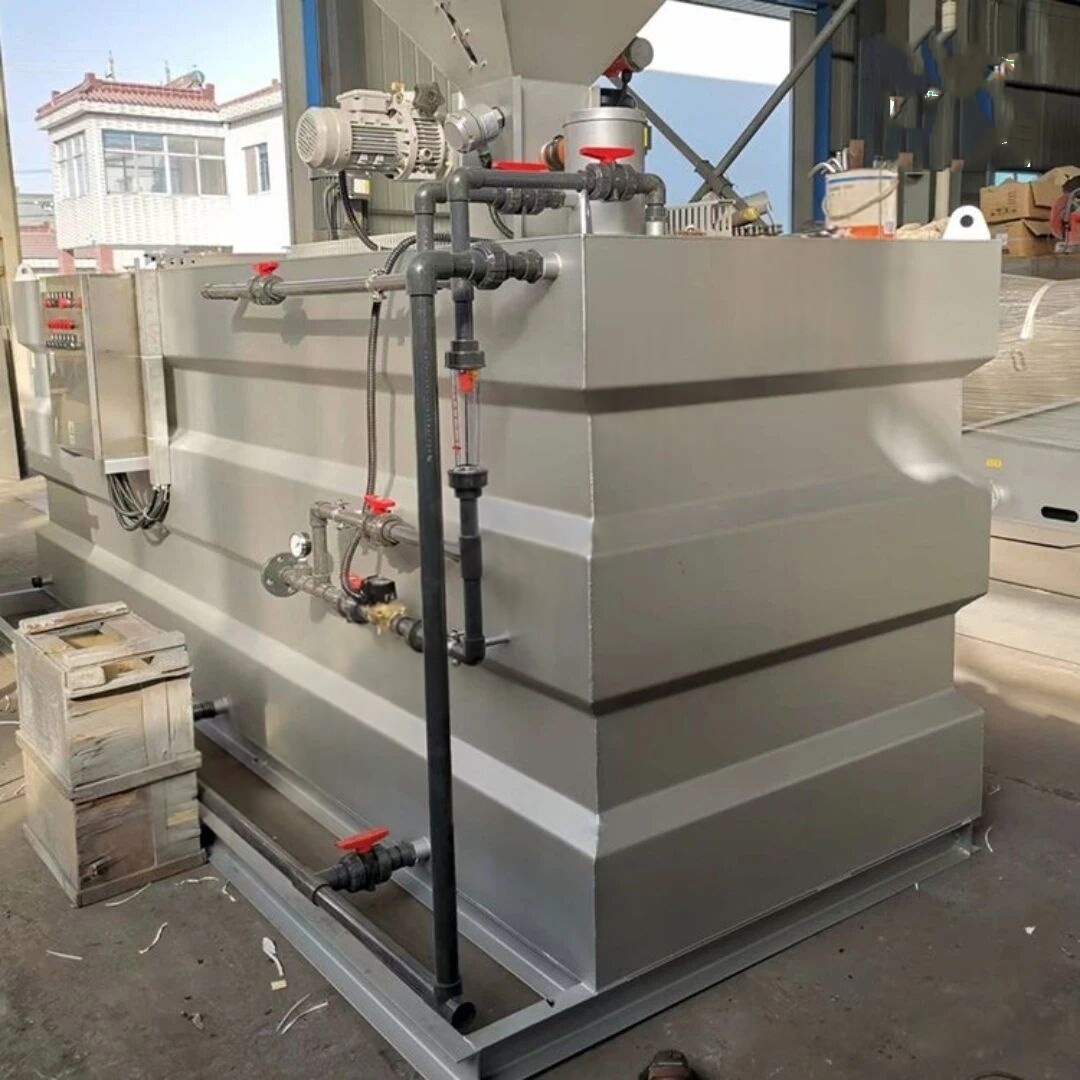

A typical PAM dry powder dosing system is an integrated unit designed to handle the entire process from dry powder storage to controlled solution delivery. Its design focuses on ensuring complete dissolution, preventing clumping, and delivering a consistent, homogenous solution.
The powder feeding unit is responsible for accurately delivering the dry PAM powder from a storage hopper into the mixing tank.
- Hopper: A large container for storing the dry PAM powder. It often features an agitator or vibrator to prevent bridging and ensure a continuous flow of powder.
- Screw Feeder/Volumetric Feeder: This is the core component that precisely meters the dry powder. A screw feeder, driven by a variable speed motor, extracts powder from the hopper and transfers it at a controlled rate. The accuracy of this feeder directly impacts the concentration of the prepared PAM solution.
The system typically incorporates multiple tanks to facilitate efficient dissolution and aging of the PAM solution.
- Mixing Tank (Preparation Tank): This is where the dry powder first comes into contact with water. It is equipped with a high-speed mixer or an eductor (jet mixer) to quickly disperse the powder into the water, preventing the formation of "fish eyes" (undissolved lumps) which can severely reduce the polymer's effectiveness.
- Aging Tanks (Maturation Tanks): PAM polymers require a certain "aging" or maturation time for their long chains to fully uncoil and hydrate in the water. This process is crucial for achieving the polymer's maximum flocculating potential. Systems often have one or two aging tanks where the solution slowly mixes for a specific duration (e.g., 30-60 minutes), ensuring complete dissolution and activation. Low-speed agitators are typically used in these tanks to maintain homogeneity without shearing the polymer chains.
Accurate control of water flow is essential for preparing the correct concentration of PAM solution.
- Water Inlet: Provides a controlled flow of clean water to the mixing tank. This often includes flow meters, pressure regulators, and sometimes heaters (as warmer water can aid dissolution).
- Level Sensors: Installed in each tank to monitor solution levels and control the filling and transfer processes.
- Control Panel (PLC-based): An automated control system manages the entire operation, including powder feeding rate, water flow, mixer speeds, tank transfers, and alarms. Programmable Logic Controllers (PLCs) are commonly used for their flexibility and reliability.
Once the PAM solution is fully prepared and aged, it is ready for precise delivery to the application point.
- Solution Storage Tank: The final tank where the fully prepared and aged PAM solution is held before dosing.
- Dosing Pump: A precise metering pump (e.g., diaphragm pump, screw pump, peristaltic pump) transfers the PAM solution to the point of application in the main process stream. The pump's flow rate is often adjustable based on the process demands.
- Injection Point: A specially designed nozzle or manifold where the PAM solution is introduced into the wastewater or process stream, ensuring rapid and uniform dispersion.
The operation of a PAM dry powder dosing system follows a sequential and automated process to ensure consistent and effective solution preparation.
Depending on the scale and specific requirements, PAM dosing systems can operate in either batch or continuous mode:
- Batch Preparation: A fixed quantity of dry powder is mixed with a predetermined volume of water to create a batch of solution. Once dissolved and aged, this batch is then transferred to a storage tank for dosing. This method offers precise control over concentration but can have intermittent solution availability.
- Continuous Preparation: Designed for larger capacities, continuous systems typically use three tanks (mixing, aging, storage). Water and powder are continuously fed into the mixing tank, overflow into the aging tank, and then into the storage tank. This ensures a constant supply of fresh PAM solution, ideal for continuous process applications.
1. Powder Loading: Dry PAM powder is loaded into the hopper.
2. Initial Mixing: The screw feeder accurately meters powder into the mixing tank, where it is rapidly dispersed into a swirling vortex of water created by a high-speed mixer or eductor. This immediate and thorough wetting is crucial to prevent agglomeration.
3. Transfer to Aging Tank: The initial mix is then transferred to one or more aging tanks.
4. Aging/Maturation: Low-speed agitators gently mix the solution for the required maturation time, allowing the polymer chains to fully uncoil and hydrate.
5. Solution Storage: The fully aged and activated PAM solution is transferred to a storage tank, ready for use.
6. Dosing: A metering pump delivers the solution from the storage tank to the application point in the main process, at a rate precisely controlled by the overall plant's SCADA or control system.
Automated dry powder dosing systems offer significant advantages over manual preparation methods or liquid PAM dosing.
These systems ensure precise control over the concentration of the prepared PAM solution. Accurate powder feeding and water flow regulation eliminate human error, leading to consistent solution quality and optimal flocculant performance. This precision minimizes chemical wastage and maximizes effectiveness.
While the initial capital investment might be higher, dry powder PAM is generally more cost-effective per unit of active polymer compared to liquid or emulsion forms due to lower transportation costs (less water content) and typically higher active ingredient percentages. Automated systems optimize usage, further reducing overall chemical expenditure.
Handling dry powder chemicals can pose health and safety risks (e.g., inhalation, skin contact). Automated systems minimize direct human contact with the powder during preparation. Enclosed hoppers and controlled feeding mechanisms reduce dust generation, creating a safer working environment.
By ensuring proper dissolution and aging, automated systems guarantee that the PAM solution delivered to the process stream is always fully activated and at the desired concentration. This consistency translates into more stable and predictable treatment outcomes, whether it's improved clarification or superior sludge dewatering.
Automation significantly reduces the manual labor associated with chemical preparation. Operators are primarily responsible for monitoring the system, refilling the hopper, and performing routine maintenance, freeing up valuable time for other plant operations.
Compared to storing large volumes of liquid PAM, dry powder storage requires less space for the equivalent active polymer content. The dosing systems themselves are designed to be relatively compact, optimizing plant layout.
Despite their benefits, designing and operating PAM dry powder dosing systems effectively requires addressing several potential challenges.
This is perhaps the most common and problematic issue. If dry PAM powder is not wetted properly and rapidly, it can form gelatinous lumps (fish eyes) that are very difficult to dissolve. These undissolved particles represent wasted chemical and can clog dosing lines or negatively impact flocculation.
Mitigation: Effective mitigation strategies include using a high-energy mixing zone (e.g., eductor or high-speed agitator) at the initial wetting point, ensuring good water turbulence, and sometimes pre-wetting the powder with a small amount of water before full dissolution.
Excessive shear during mixing, especially in the aging tanks, can damage the long polymer chains of PAM, reducing its molecular weight and flocculating efficiency.
Mitigation: Use low-speed agitators in aging tanks. Avoid high-speed pumps for transferring the prepared solution. Design transfer lines to minimize turbulence.
Dry powder can sometimes bridge in the hopper or clog the screw feeder if it's humid or if the powder has poor flow characteristics. Prepared solution, if not properly dissolved or if left stagnant, can also clog dosing lines.
Mitigation: Hoppers often include agitators or vibrators. Regular cleaning of dosing lines is necessary. Using filters on the dosing line can prevent large particles from reaching the injection point.
Dry PAM powder is highly hygroscopic, meaning it readily absorbs moisture from the air. This can lead to clumping, poor flowability, and difficulty in feeding.
Mitigation: Store PAM in a dry environment. The hopper may be equipped with a dehumidifier or a desiccant system. Keep the system sealed when not in operation.
The system must be appropriately sized for the required solution capacity and concentration. Preparing very high concentrations can be challenging for complete dissolution, while very low concentrations might mean dosing excessively large volumes. The optimal concentration is usually between 0.1% to 0.5% (w/w), but can vary.
Modern PAM dry powder dosing systems often incorporate advanced features to further enhance efficiency, reliability, and ease of use.
Integrated clean-in-place (CIP) systems can automate the periodic cleaning of tanks and lines, reducing manual labor and ensuring hygienic operation.
Integration with plant SCADA (Supervisory Control and Data Acquisition) systems allows for remote monitoring of operational parameters, alarm management, and remote control, enabling operators to manage the system from a central control room.
Advanced sensors in the hopper (e.g., ultrasonic or radar level transmitters) can accurately monitor the dry powder level, triggering alarms for low levels and facilitating timely refills.
Some systems incorporate multiple stages of dissolution, beginning with high-energy dispersion followed by gentler, prolonged mixing, to ensure maximum polymer activation.
Dosing lines may include automatic backwash filters to prevent any undissolved particles or debris from clogging injection points.
