How To Determine The Rotation Direction of The Impeller in A Submersible Mixer Or Submersible Thruster?

Guide to Determining the Impeller Rotation Direction of Submersible Mixers and Submersible Agitators

In wastewater treatment, water supply and drainage engineering, and other fields, submersible mixers and submersible agitators are key equipment for ensuring process effectiveness. The correctness of their impeller rotation direction directly determines the equipment's operating efficiency, service life, and operational safety. Incorrect rotation can not only lead to a significant decrease in mixing or agitation effects but may also cause serious malfunctions such as impeller detachment and motor overload. This article systematically explains the methods for determining the impeller rotation direction, adjustment techniques, and precautions, providing professional guidance for equipment installation and commissioning.

I. Defining the Rotation Standard: Equipment Characteristics Determine Core Requirements

The impeller design of submersible mixers and submersible agitators is based on fluid mechanics principles. The functional positioning of different equipment determines that their standard rotation directions differ fundamentally, which is the core standard for judging the correctness of the rotation direction.

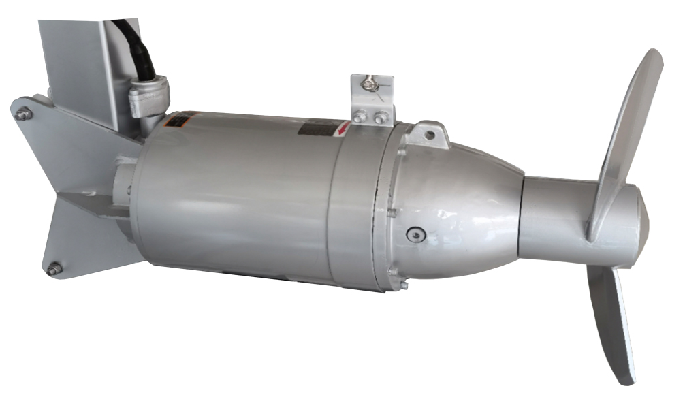

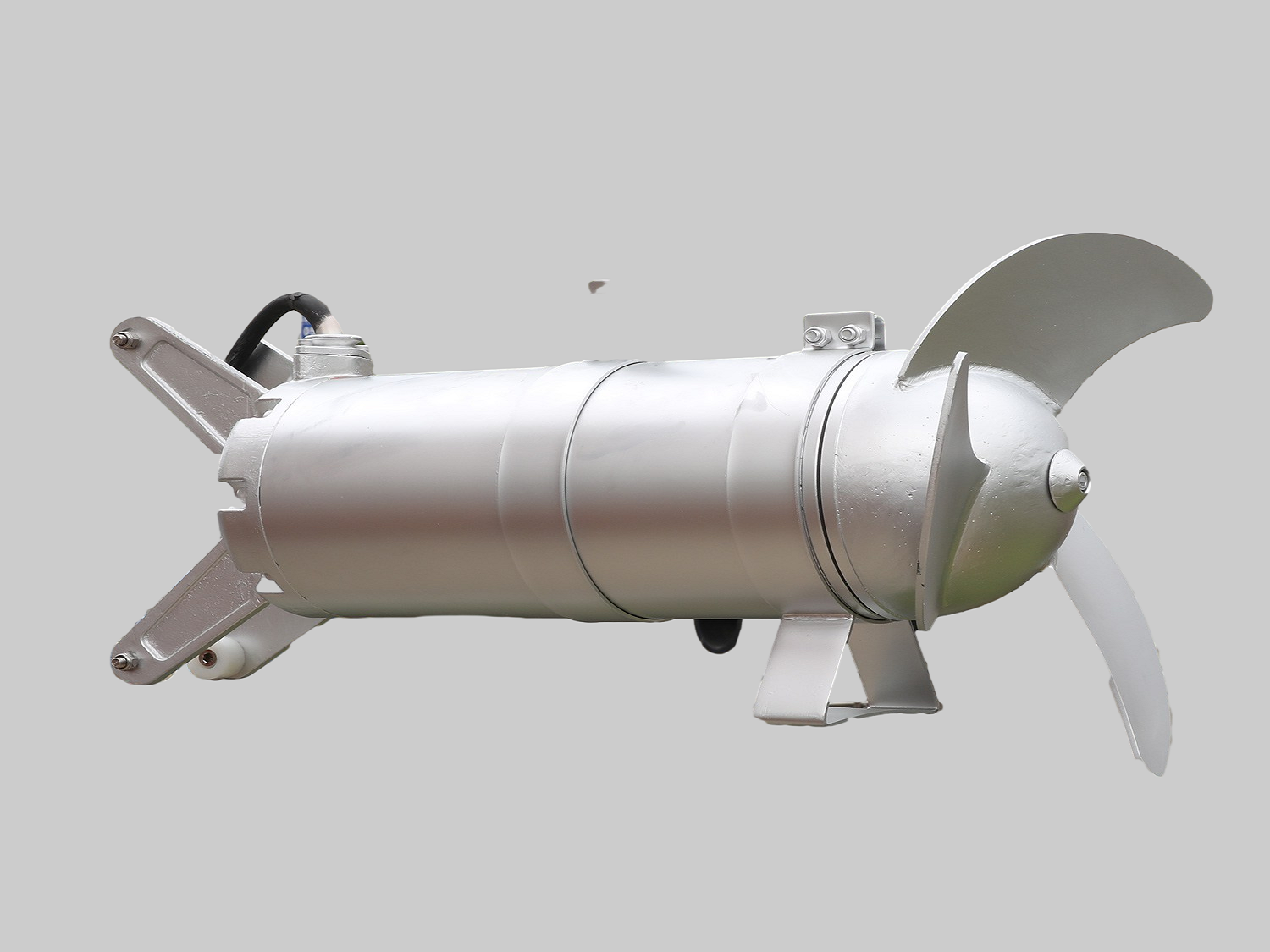

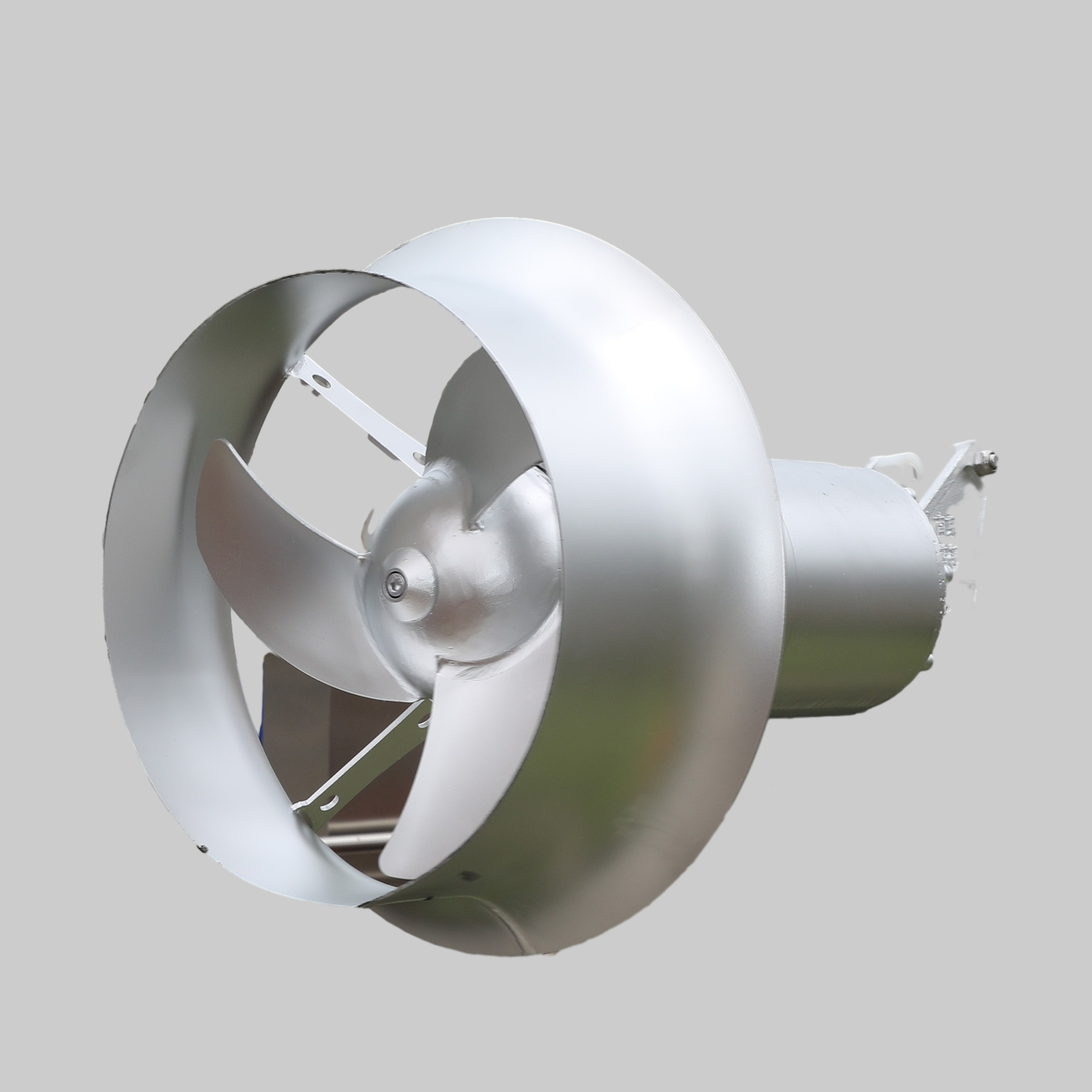

Submersible mixers use mixing and stirring as their core functions, requiring the impeller rotation to create localized strong turbulence to achieve uniform mixing of the medium. The standard rotation direction is: facing the impeller (viewed from the impeller towards the motor), the impeller rotates counterclockwise. This rotation allows the impeller to efficiently cut the water body, forming an up-and-down circulating mixing flow pattern, ensuring uniform mixing. Submersible thrusters primarily aim to propel water in a directional direction, requiring a stable axial thrust. The standard rotation direction is: facing the impeller (viewed from the impeller towards the motor), the impeller rotates clockwise. This rotation maximizes axial thrust efficiency and ensures the water flows along the designed path.

It is crucial to note that different manufacturers' equipment may have different rotation markings due to impeller structure variations. Therefore, the rotation markings on the equipment nameplate are the primary reference and must be followed.

II. Core Judgment Method: Three-Step Accurate Rotation Verification Impeller rotation verification must be completed after equipment installation and before formal commissioning. The core principle is "no-load verification first, then load confirmation." Accurate judgment can be achieved through the following three steps:

Step 1: Preliminary Preparation and Safety Protection Two key preparations must be completed before rotation verification: First, inspect the equipment installation to ensure the impeller-to-front guard plate clearance meets requirements (usually 0.75-1.0mm), the impeller is not jammed, and the cables are undamaged. Second, ensure safety protection by designating a restricted area for operation; operators must stay away from the impeller rotation area to avoid accidents during inching operation. If multiple devices share a control cabinet, disconnect the wiring of other devices and test the target device individually to prevent mutual interference.

Step Two: Jogging Operation Observation Method

This is the most direct method of judgment. The core of the operation is "short-time jogging and close-range observation." Suspend the equipment on the mounting guide rod (without touching the bottom of the tank or the medium), turn on the power, and instantly start the control switch (jogging time should not exceed 3 seconds). Simultaneously observe the impeller rotation from a specified perspective: whether the agitator rotates counterclockwise when viewed from the impeller towards the motor, and whether the flow promoter rotates clockwise from the same perspective.

If the viewing angle is limited, an auxiliary observation method can be used: attach colored marker strips to the edge of the impeller blades, and judge the rotation direction by the movement trajectory of the marker strips during jogging; or set up a high-definition camera above the equipment and observe the rotation details clearly through slow-motion playback.

Step Three: Load Operation Verification

After no-load observation, load verification is required to confirm the actual operating effect. Lower the equipment to its designed working depth, introduce the medium, and then jog the machine again to observe the water flow: the agitator should produce a clear up-and-down tumbling flow with no stagnant areas; the impeller should be able to push the water into a stable, directional flow with a continuous and turbulent flow pattern. Simultaneously monitor the operating current. If the rotation direction is incorrect, the current will typically exceed the rated current by 10%-20%, which can be used as an auxiliary criterion.

III. Rotation Adjustment Techniques: One-Click Correction of Incorrect Rotation

If an incorrect rotation is observed, the adjustment method is simple and efficient: Since the equipment uses a three-phase asynchronous motor, simply swap the positions of any two phase wires in the power cable inside the control cabinet or at the terminal block to change the motor's rotation direction, thereby correcting the impeller rotation.

After adjustment, repeat the jogging and observation steps to confirm correct rotation. Note that after adjustment, the cable connections must be checked again for tightness to prevent poor contact during operation that could lead to equipment failure. For equipment with a gearbox, it is strictly forbidden to adjust the rotation direction by reversing the motor to avoid damaging the gearbox.

IV. Key Precautions: Avoiding Common Misconceptions

Three common misconceptions must be avoided when determining and adjusting the direction of rotation: First, neglecting verification after reinstallation. Motor wiring may change after disassembly and reinstallation, necessitating a re-check of rotation direction. Second, prolonged test runs under load. Incorrect rotation during load operation can lead to serious malfunctions such as impeller disengagement and seal damage; test runs must be limited to 3 seconds. Third, simultaneous testing of multiple units. Starting multiple units simultaneously when sharing a control cabinet can cause current fluctuations, affecting the accuracy of rotation determination; each unit must be tested individually.

Furthermore, before restarting equipment after a long period of inactivity, rotation direction must be re-verified to prevent abnormal rotation due to factors such as motor moisture. During regular maintenance, current monitoring and flow observation can be used to indirectly determine the stability of rotation during operation.

In summary, determining the impeller rotation direction of submersible mixers and submersible thrusters is a crucial prerequisite for safe and efficient equipment operation. By following a standardized process of "defining the baseline - three-step verification - precise adjustment," combined with strict safety precautions, the risk of incorrect rotation can be effectively avoided, ensuring optimal equipment performance and extending service life.
