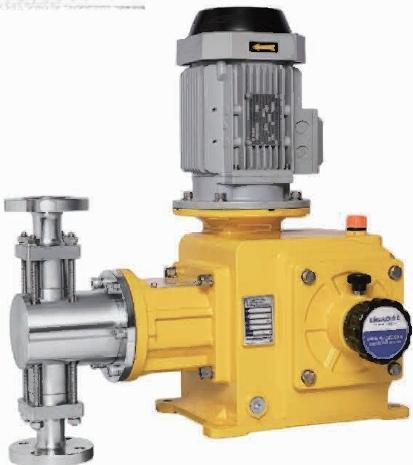

JPR plunger metering pump
1. Single-head flow rate: Qmax = 1620 L/H
2. Pressure range: Pmax = 50MPa
3. Standard configuration: Material 304, 316L, 380V/50Hz
4. Select configuration: Material 316, 904, 2205, Ti, Hastelloy C Etc., motor frequency conversion/explosion-proof, special voltage/frequency
PERFORMANCE PARAMETER
Model | Flow rate (L/H) | Pressure MPa | plunger diameter (mm) | Pump speed SPM | Itinerary mm | Motor power kW | Import/export connection |
JPR15/50 | 15 | 50 | 12 |
96 |
30 |
1.5 |
10-pipe sleeve |
JPR30/28 | 30 | 28 | 16 | ||||
JPR50/18 | 50 | 18 | 20 | ||||
JPR80/11 | 80 | 11 | 25 | ||||
JPR100/9 | 100 | 9 | 28 | ||||
JPR13517 | 135 | 7 | 32 |
96 |
15-inch pipe sleeve | ||
JPR160/5.8 | 160 | 5.8 | 35 | ||||
JPR190/5.0 | 190 | 5 | 38 | ||||
JPR230/4.0 | 230 | 4 | 42 | ||||
JPR265/3.5 | 265 | 3.5 | 45 | ||||
JPR330/2.9 | 330 | 2.9 | 50 | ||||
JPR400/2.3 | 400 | 2.3 | 55 |
96 |
DN25 flange (HG/T20592RF) | ||
JPR480/2.0 | 480 | 2 | 60 | ||||
JPR560/1.7 | 560 | 1.7 | 65 | ||||
JPR650/1.5 | 650 | 1.5 | 70 | ||||
JPR750/1.3 | 750 | 1.3 | 75 | ||||
JPR850/1.1 | 850 | 1.1 | 80 |
96 |
DN40 flange (HG/T20592RF) | ||
JPR960/0.9 | 960 | 0.9 | 85 | ||||
JPR1080/0.8 | 1080 | 0.8 | 90 | ||||
JPR1280/0.8 | 1280 | 0.8 | 80 |
144 | |||
JPR1450/0.7 | 1450 | 0.7 | 85 | ||||
JPR1620/0.6 | 1620 | 0.6 | 90 |
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion .
