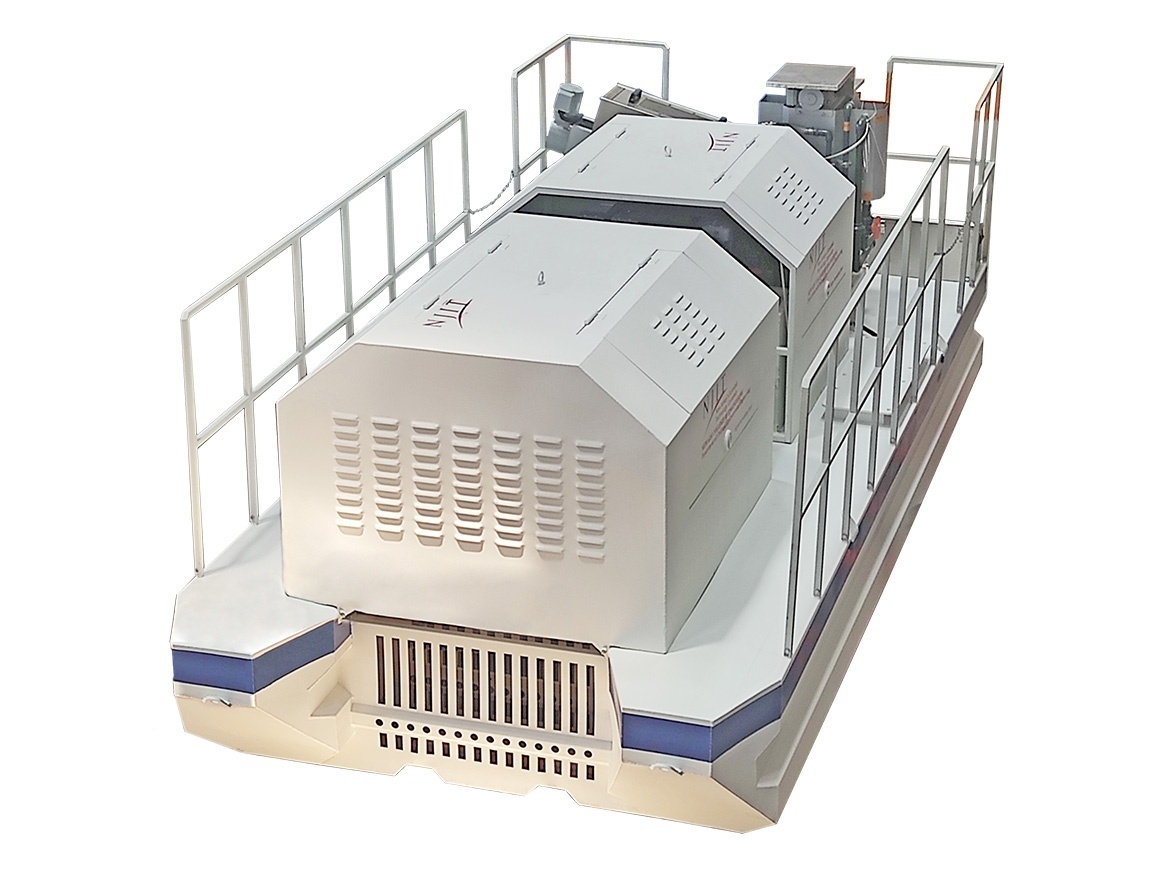

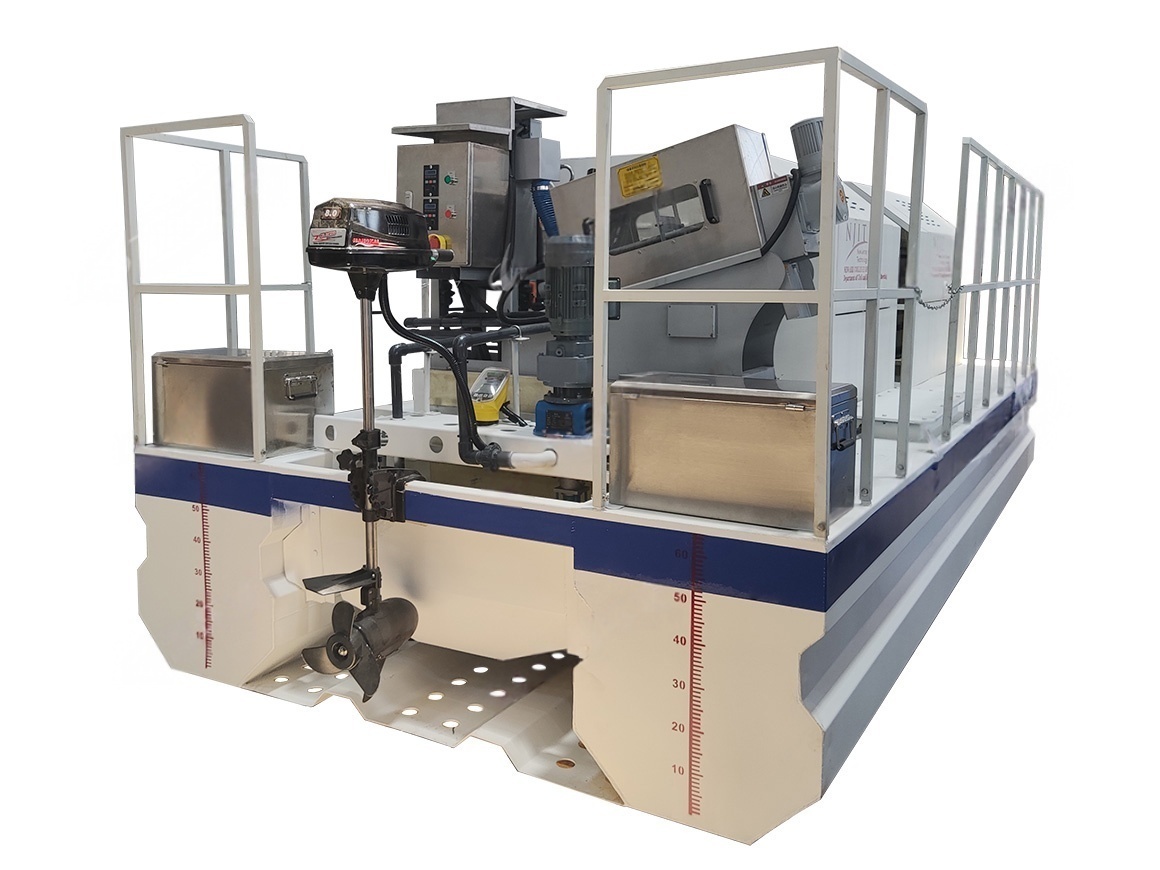

GZDJF-100 Type Integrated Water Purification And Oxygenation Air-Floating Vessel

GZDJF-100 Type Integrated Water Purification and Oxygenation Air-Floating Vessel

Processing capacity

●50~100m³/h

Equipment power

● Gasoline generator power: 6.5KW

● Dissolved air system power: Dissolved air pump: 1.1kw; Air compressor: 0.55kw

● Slag scraper power: 0.18kw

● Dosing system power: 2 * 0.028kw

●Drive system power: 2*1kw

●Energy storage system: 8*(12V*200mA·h)

Customizable

Brief explanation of the principle

※The equipment is a semi-underwater air flotation device, which is mainly used for in-situ treatment of pollutants such as suspended solids, oil, and algae in water bodies. It also features rapid and efficient oxygenation and aeration, strong adaptability, and easy mobility.

* The equipment is equipped with an energy storage system, which can be powered by a generator or mains electricity. The energy storage system is used to power the drive system.

* The equipment is equipped with an energy storage system, which can be powered by a generator or mains electricity. The energy storage system is used to power the drive system.

* As the ship moves forward, it creates relative motion with the still water, forming a water flow that enters the hull from the bow. This flow first enters the primary reaction zone, where coagulation occurs. It then enters the secondary reaction zone, where flocs further aggregate and enlarge. Next, it enters the contact zone, where flocs and micro/nano-sized bubbles adhere together through electrostatic adsorption, forming "foam-flocs" with an apparent density less than water. These foam-flocs float on the surface, forming scum, while the treated water separates from the hull at the bottom of the separation zone and enters the water body. As the ship moves forward, the inclined surface of the scum hopper at the rear of the separation zone acts like a shovel, collecting the scum from the upper part of the separation zone. A scraper then scrapes the scum from the inclined surface of the scum hopper into the collection hopper. Once the scum hopper is full, it can be pumped away from the shore.

The sample parameters and images are for reference only. YUHAO Company reserves the right to make continuous improvements. All parameters are subject to confirmation by both parties.
