Pneumztic Diaphragm Pump

1.The  lubrication  of  air   pressure  chamber  can  be  omitted,and  it  adopts  patented  air  valve,with   excellent  abrasion  resistance.

2.Air  pressure  is  anodized,and  covered  by  epoxy  coating,with  good  corrosion,and  suitable  for  high  pollution  situation.

3.All  parts  can  be  replaced  in  the  situation  of  not  opening  the  liquid  chamber.

4.The  material  of  central  axis  is  stainless  steel,with  good  anti-corrosion.

5.The  material  of  aluminum   is  anodized.

6.Low  pressure,slowdown  and  no  getting  stuck.

7.Special   material   of   valve   ball,with   perfect   craft,and   good   self-priming   ability.

8.The  service  life  of  diaphragm  is   1/3--1/2  higher  than  other  manufacturer.

9.One  reversing  valve  is  suitable  for  pumps  with  a  variety  of  specification  and  easy  to  maintenance  and  replace.

10.The  side  discharge  can  avoid  the  corrosion  of  air  valve  caused  by  liquid  drop.

JQ06 Plastic Pump (PP Acetal PVDF)

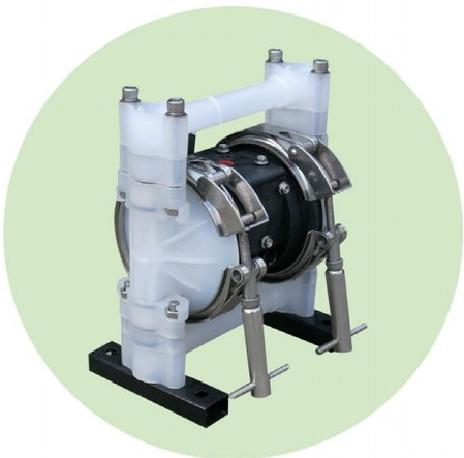

JQ10 Plastic Pump (PP Acetal PVDF)

JQ15 Plastic Pump (PP Acetal PVDF)

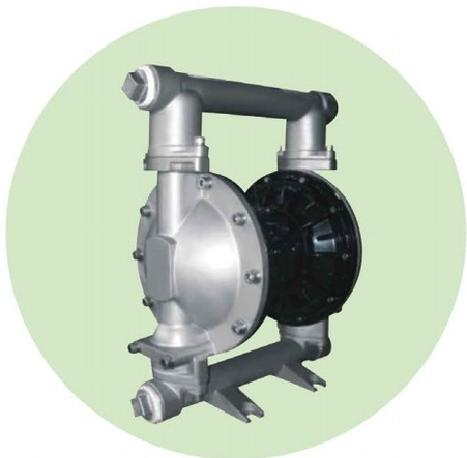

JQ15 Metal Pump (AL SST)

JQ20 Plastic Pump (PP Acetal PVDF)

JQ25 Plastic Pump (Flanged) (PP PVDF)

JQ25 Plastic Pump (Threaded) (PP PVDF)

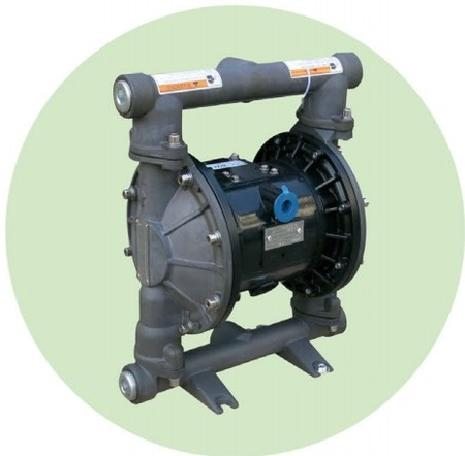

JQ25 Metal Pump (AL SST)

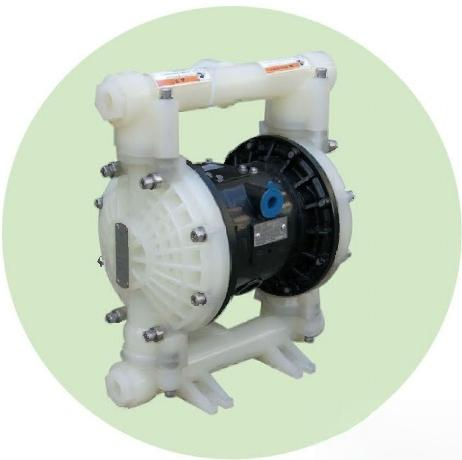

JQ40 Plastic Pump (Flanged) (PP PVDF)

JQ40 Plastic Pump (Threaded) (PP PVDF)

JQ40 Metal Pump (AL Iron SST)

JQ50 Plastic Pump (Flanged) (PP PVDF)

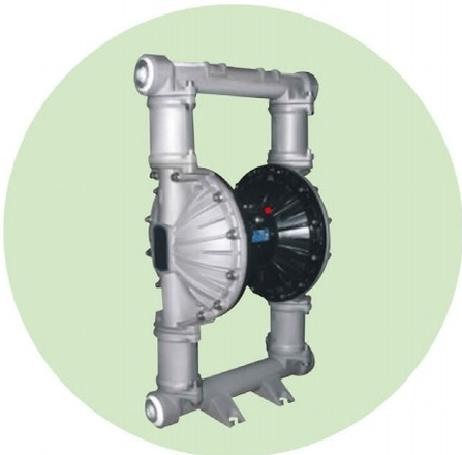

JQ50 Metal Pump (AL Iron SST)

J Q50 Metal Pump (Long Version) (AL Iron SST)

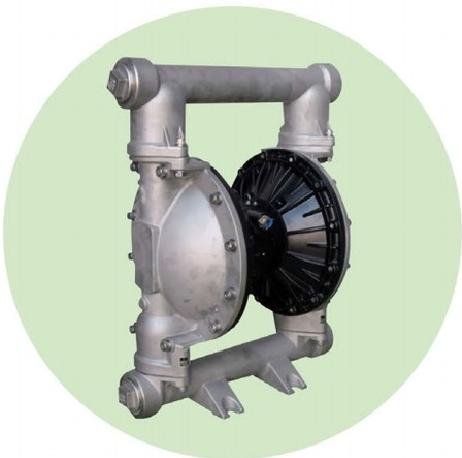

JQ50 Metal Pump (ALSST)

JQ80 Plastic Pump (PP PVDF)

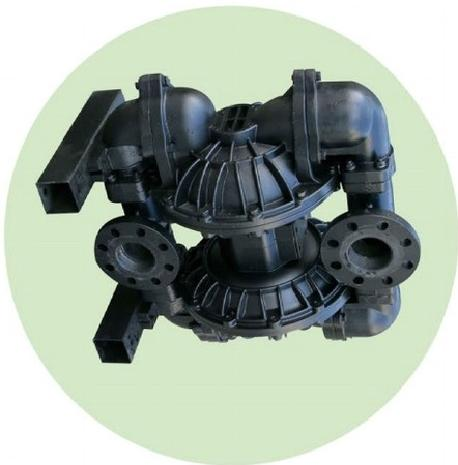

JQ80 Metal Pump (AL Iron SST)

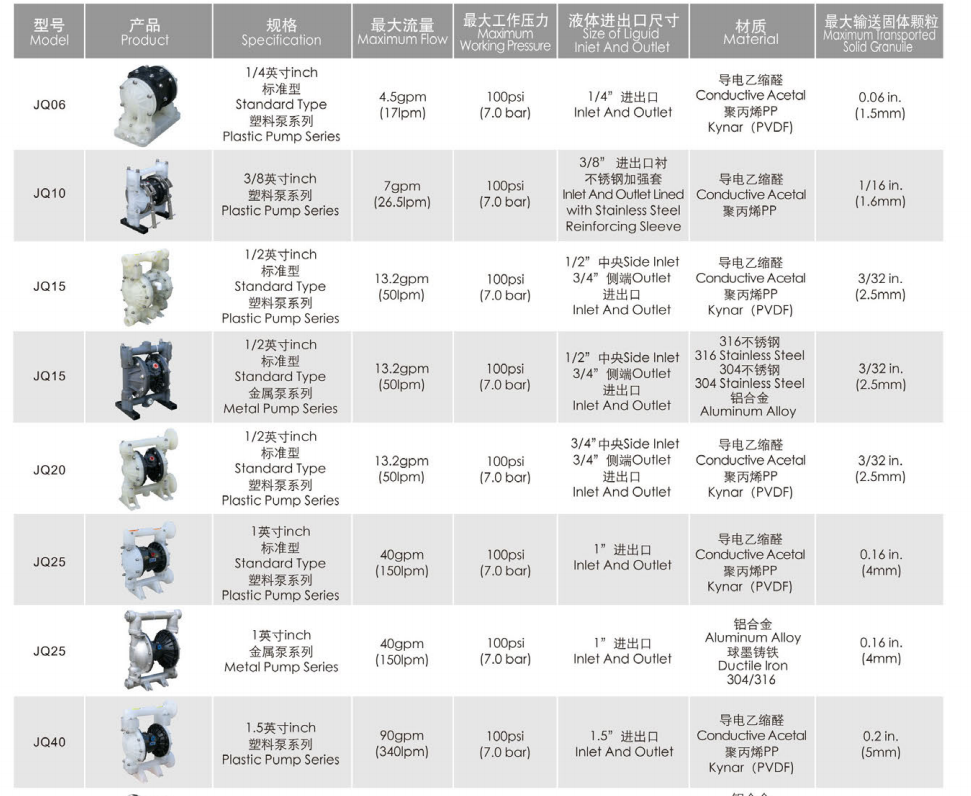

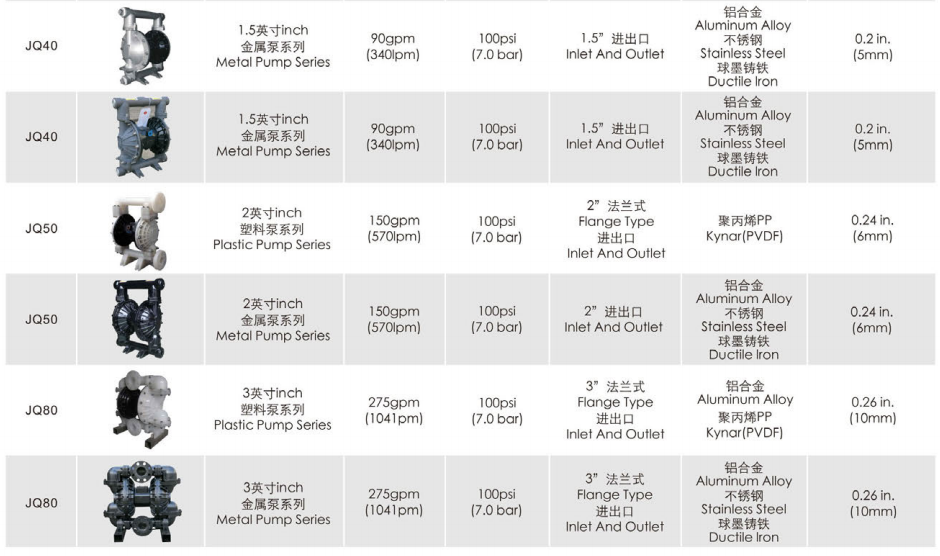

Main Applications and Suitable Fluids for Pneumatic Diaphragm Pumps:

1. Chemical Industry: Acids, alkalis, solvents, wastewater, resins, latex, filter presses, mixtures.

2. Petrochemical Industry: Crude oil, heavy oil, greases, mud, sludge, etc.

3. Coating Industry: Resins, solvents, colorants, paints, dyes, alkyd resins, etc.

4. Daily Chemical Industry: Detergents, shampoos, emulsions, hand creams, surfactants.

5. Ceramics Industry: Mud, mortar, lime slurry, clay slurry.

6. Mining: Coal slurry, magma, mud, mortar, explosive slurry, lubricating oil, etc.

7. Water Treatment: Lime slurry, soft sediments, sewage, chemicals, wastewater.

8. Food Industry: Liquid and semi-solid substances, chocolate, brine, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood.

9. Beverage Industry: Yeast, syrup, concentrates, gas-liquid mixtures, wine, fruit juice, corn syrup, etc.

10. Pharmaceutical Industry: Solvents, acids, alkalis, plant extracts, ointments, plasma, and various pharmaceutical solutions.

11. Paper Industry: Adhesives, resins, paints, inks, pigments, hydrogen peroxide, etc.

12. Electronics Industry: Solvents, electroplating solutions, cleaning solutions, sulfuric acid, nitric acid, waste acid, corrosive acids, acetone, polishing solutions.

13. Textile Liquids: Dyes, chemicals, resins, adhesives, etc.

14. Construction Industry: Cement slurry, ceramic tile adhesives, rock slurry, ceiling paint, etc.

15. Automotive Industry: Polishing emulsions, oils, coolants, automotive primers, oil-based emulsions, varnishes, varnish additives, degreasers, paints, etc.

16. Furniture Industry: Adhesives, varnishes, dispersion systems, solvents, colorants, wood glue, epoxy resins, starch adhesives.

17. Metallurgy, Foundry, and Dyeing Industry: Metal pastes, hydroxide and carbide pastes, dust washing pastes, etc.

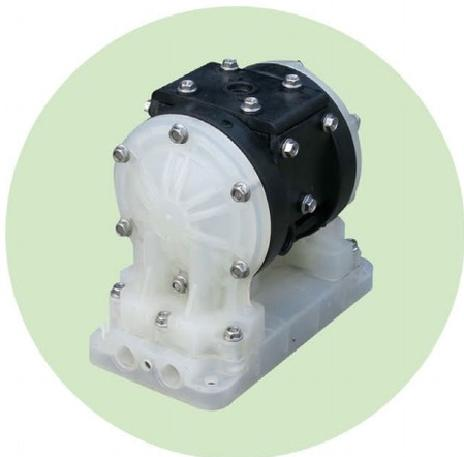

JQ06  Plastic Pump(PP Acetal PVDF)

最大工作压力max.working	pressure		100psi(0.7Mpa.7bar)
最大流量max.flow rate			171pm(1.02m³/h)
最大虹吸高度max.suction	height		3m
最大输送固体颗粒max.permiffed grain				1.5mm
空气进口尺寸air inlet size		1/4in.npt(f)1/4in.bsp(f)
液体进出口尺寸fluid inlet/outlet		size 1/4in.npt(f)bsp(f)
重量weight	乙缩醛泵Acetal purmp 1.1kg

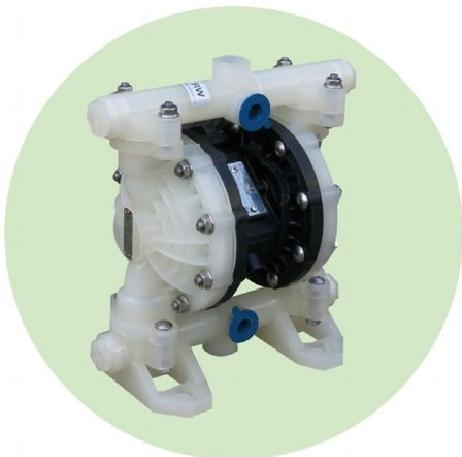

JQ15 塑料泵 Plastic Pump(PP Acetal PVDF)

最大工作压力max.working pressure 100psi(0.7Mpa.7bar)
最大流量max.flow rate	50lpm(3.0m³/h)
最大虹吸高度max.suction height		4m
最大输送固体颗粒max.permiffed grain		2.5mm
空气进口尺寸air inlet size		1/4in
液体进出口尺寸fluid inlet/outlet size		1/23/4in
重量weight                         PVDF pump3.7kg

JQ20  塑料泵 Diaphragm    Pump(PP)

最大工作压力max.working	pressure	100psi|0.7Mpa.7bar)
最大流量max.flow rate		50lpm(3.0m³/h)
最大虹吸高度max.suction	height	4m
最大输送固体颗粒max.permiffed grain			2.5mm
空气进口尺寸air inlet size			1/4in
液体进出口尺寸fluid inlet/outlet size			3/4in
重量weight                         PVDF pump3.7kg

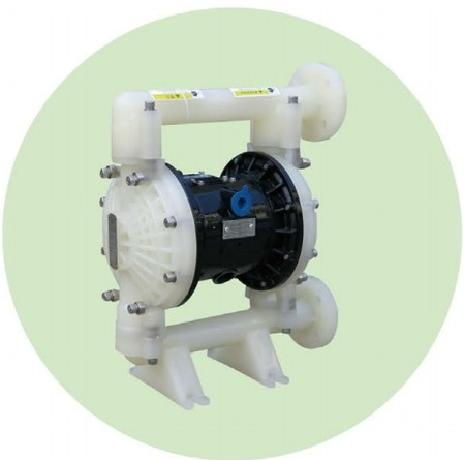

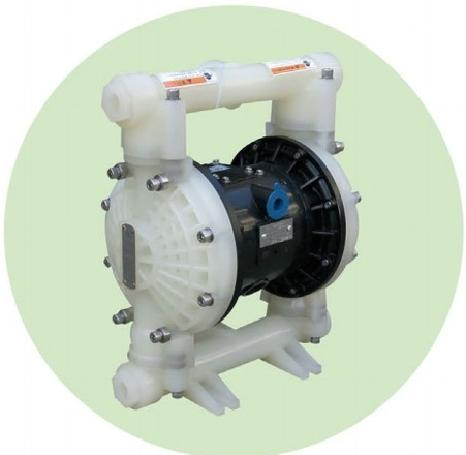

JQ25 塑料泵 Plastic Pump (PP Acetal PVDF)

最大工作压力max.working	pressure 100psi|0.7Mpa.7bar)
最大流量max.flow rate	1501pm   (9.0m³/h)
最大虹吸高度max.suction height		5m
最大输送固体颗粒max.permiffed grain		4mm
空气进口尺寸ai inlet size		1/2in
液体进出口尺寸fluid inlet/outlet size		lin

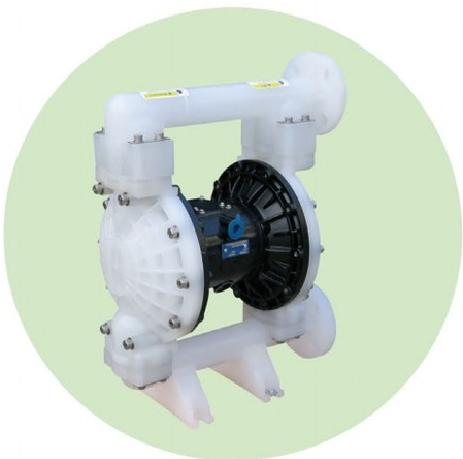

JQ40 塑料泵 Plastic Pump(PP Acetal PVDF)

最大工作压力max.working pressure	100psi(0.7Mpa.7bar)
最大流量max.flow rate	340lpm(20m³/h)
最大虹吸高度max.suction height	5m
最大输送固体颗粒max.permiffed gra	in             5mm
空气进口尺寸air inlet size	1/2in
液体进出口尺寸fluid inlet/outlet size		11/2in
重量weight		PVDF pump20.0kg

JQ50 塑料泵 Plastic Pump(PP Acetal PVDF)

最大工作压力max.working	pressure 100psi|0.7Mpa.7bar)
最大流量max.flow rate	570lpm(34m³/h)
最大虹吸高度max.suction height		5m
最大输送固体颗粒max.permiffed grain		6mm
空气进口尺寸ai inlet size		3/4in
液体进出口尺寸fluid inlet/outlet size		2in
重量weight                     聚丙烯PPpump28.0kg

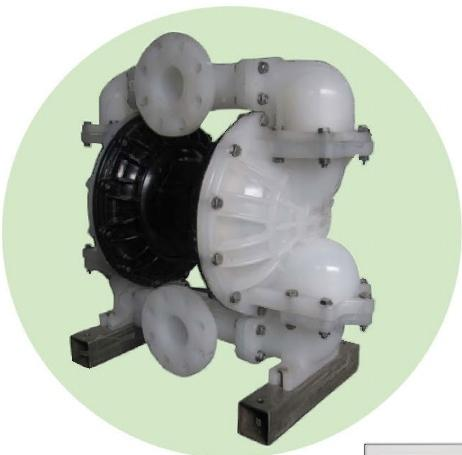

JQ80 塑料泵 Plastic Pump (PP Acetal PVDF)

最大工作压力max.working	pressure	100psi(0.7Mpa.7bar)
最大流量max.flow rate		1020lpm   (60m³/h)
最大虹吸高度max.suction	height	5m
最大输送固体颗粒max.permiffed grain			10mm
空气进口尺寸air inlet size			3/4in
液体进出口尺寸fluid inlet/outlet size			3in
重量weight                    聚丙烯PPpump66.0kg

JQ15 金属泵 Metal Pump(AL SST )

最大工作压力max.working pressure 100psi(0.7Mpa.7bar)
最大流量max.flow rate	50lpm   (3.0m³/h)
最大虹吸高度max.suction height		4m
最大输送固体颗粒max.permiffed grain		2.5mm
空气进口尺寸air inlet size		1/4in
液体进出口尺寸fluid inlet/outlet size		1/23/4in
重量weight                       铝合金pump34.4kg

JQ25 金属泵 Metal Pump(AL SST)

最大工作压力max.working	pressure 100psi|0.7Mpa.7bar)
最大流量max.flow rate	150lpm(9.0m³/h)
最大虹吸高度max.suction height		5m
最大输送固体颗粒max.permiffed grain		4mm
空气进口尺寸air inlet size		1/2in
液体进出口尺寸fluid inlet/outlet size		lin
重量weight             铝合金泵Aluminum pump 8.2kg

JQ40 金属泵 Metal Pump(AL SST)

最大工作压力max.working	pressure	100psi(0.7Mpa.7bar)
最大流量max.flow rate		340lpm(20m³/h)
最大虹吸高度max.suction	height	5m
最大输送固体颗粒max.permiffed gra in			5mm
空气进口尺寸air inlet size			1/2in
液体进出口尺寸fluid inlet/outlet size			11/2in
重量weight	铝合金pump16.0kg

JQ50  金属泵 Metal Pump(AL SST)

最大工作压力max.working pressure	100psi(0.7Mpa.7bar)
最大流量max.flow rate	570lpm(34m³/h)
最大虹吸高度max.suction height	5m
最大输送固体颗粒max.permiffed gra	in           6mm
空气进口尺寸air inlet size	1/2in
液体进出口尺寸fluid inlet/outlet size		2in
重量weight		铝合金pump29.0kg

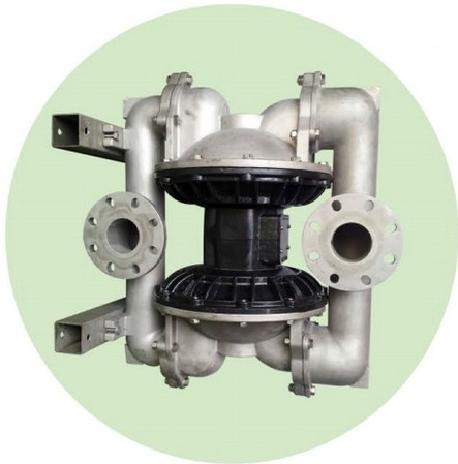

JQ80  金属泵 Metal Pump(AL SST)

最大工作压力max.working	pressure	100psi(0.7Mpa.7bar)
最大流量max.flow rate		1020lpm   (60m³/h)
最大虹吸高度max.suction	height	5m
最大输送固体颗粒max.permiffed grain			10mm
空气进口尺寸air inlet size			3/4in
液体进出口尺寸fluid inlet/outlet size			3in
重量weight    铝合金 PPpump75.0kg         SUS304  110Kg
