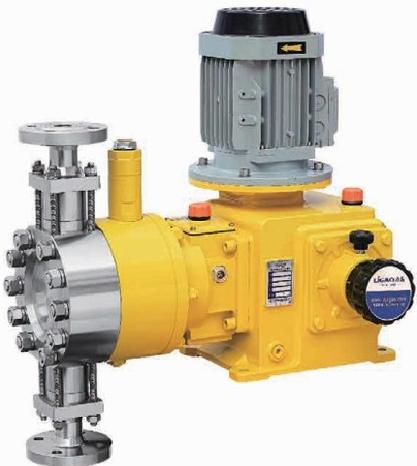

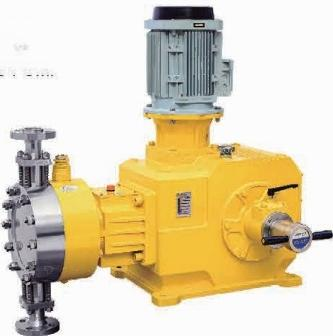

JYPZ HYDRAULIC DIAPHRAGM METERING
FEATURES
1. Single-head flow rate: Qmax = 810L/H
2. Pressure range: Pmax = 70MPa
3. Standard configuration: Material 304, 316L 380V /50Hz
4. Select configuration: Material 316, PVDF/PTFE, 904, 2205, Ti, Ha C Variable frequency/explosion-proof motors, special voltage/frequency motors, double or multi-layer diaphragm motors/alarm motors.
PERFORMANCE PARAMETER
Model | Flow rate (L/H) | Pressure MPa | plunger diameter (mm) | Pump speed SPM | Itinerary mm | Motor power kW | Import/export connection |
JYPZ4/70 | 4 | 70 | 8 |
96 |
25 |
0.75 |
6-pipe sleeve |
JYPZ7/44 | 7 | 44 | 10 | ||||
JYPZ10/30 | 10 | 30 | 12 | ||||
JYPZ18/22 | 18 | twenty two | 12 | 144 | |||
JYPZ23/17 | twenty three | 17 | 16 | 96 |
10-pipe sleeve | ||
JYPZ37/12 | 37 | 12 | 16 |
144 | |||
JYPZ50/10 | 50 | 10 | 18 | ||||
JYPZ62/8 | 62 | 8 | 20 | ||||
JYPZ75/6.5 | 75 | 6.5 | twenty two | ||||
JYPZ100/5.0 | 100 | 5 | 25 | ||||
JYPZ140/3.5 | 140 | 3.5 | 30 |
144 |
15-inch pipe sleeve | ||
JYPZ160/3.2 | 160 | 3.2 | 32 | ||||
JYPZ205/2.5 | 205 | 2.5 | 36 | ||||
JYPZ260/2.0 | 260 | 2 | 40 | ||||
JYPZ330/1.6 | 330 | 1.6 | 45 |
144 |
DN25 flange (HG/T20592RF) | ||
JYPZ410/1.3 | 410 | 1.3 | 50 | ||||
JYPZ500/1.0 | 500 | 1 | 55 | ||||
JYPZ600/0.8 | 600 | 0.8 | 60 | ||||
JYPZ700/0.7 | 700 | 0.7 | 65 | ||||
JYPZ810/0.6 | 810 | 0.6 | 70 |
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion.
