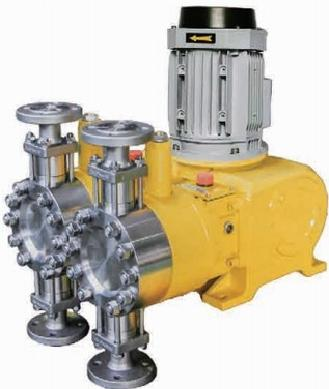

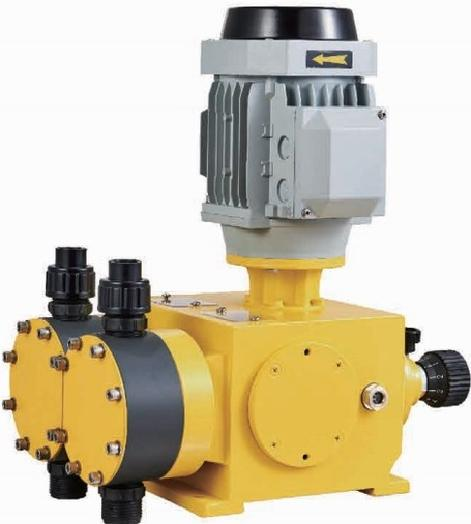

2JMX diaphragm metering pump
1. Flow range: Qmax = 240L/ H
2. Pressure range: Pmax = 0.8 MPa
3. Standard configuration: Material: PVC, PVDF/PTFE, 304/316L, 380V/50Hz
4. Optional Configurations: Motor frequency conversion/explosion-proof, special voltage/frequency, pump head material and inlet/outlet connection method can be customized.
5. Features of the dual-head pump: Reduces pipeline pulsation, increases flow rate, and allows for proportional dosing of two media.
PERFORMANCE PARAMET ER
Model | flow L/h | pressure MPa | Pump speed SPM | Diaphragm specifications mm | Motor power kW | Inlet and outlet diameter connection method | ||
PVC | PVDF/PTFE | 3041316L | ||||||
2JMX40/0.8 | 40 | 0.8 | 48 | 65 |
0.37 | φ6x9 PE hose clamps |
Rc1/2" Internal thread |
φ10×16 Welding of pipe sleeve |
2JMX80/0.6 | 80 | 0.6 | 96 | |||||
2JMX120/0.5 | 120 | 0.5 | 48 |
95 |
DN15 Connector sleeve adhesive joint | |||
2JMX160/0.5 | 160 | 0.5 | 96 | |||||
2JM×200/0.4 | 200 | 0.4 | 96 | |||||
2JMX240/0.4 | 240 | 0.4 | 96 | |||||
