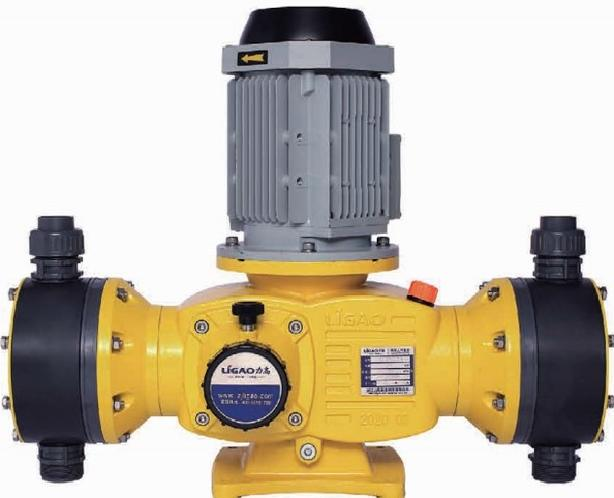

GB-S Diaphragm Metering Pump
1. Flow range: Qmax = 3600L/H
2. Pressure range: Pmax = 0.7 MPa
3. Standard configuration: Material: PVC, PVDF/PTFE, 304/316L, 380V/50Hz
4. Optional Configurations: Motor frequency conversion/explosion-proof, special voltage/frequency, pump head material and inlet/outlet connection method can be customized.
PERFORMANCE PARAMETER
Model | flow L/h | pressure MPa | Pump speed SPM | Diaphragm specifications mm | Motor power kW | Inlet and outlet diameter connection method | ||
PVC | PVDF/PTFE | 3041316L | ||||||
GB-S1360/0.7 | 1360 | 0.7 | 96 |
148 |
1.1 | DN25 Connector sleeve adhesive joint | Rc1” internal thread DN25 flange | Rc1" Internal thread |
GB-S1500/0.5 | 1500 | 0.5 | 144 | |||||
GB-S2000/0.4 | 2000 | 0.4 | 144 | |||||
GB-S2400/0.4 | 2400 | 0.4 | 96 | 185 | DN40 Connector sleeve adhesive joint | Rc1/2” internal thread DN40 flange | Rc1Y/" Internal thread | |
GB-S3200/0.3 | 3200 | 0.3 | 144 | |||||
GB-S3600/0.3 | 3600 | 0.3 | 144 | |||||
Note: Diaphragm rupture detection and dual diaphragm rupture alarm are optional.
