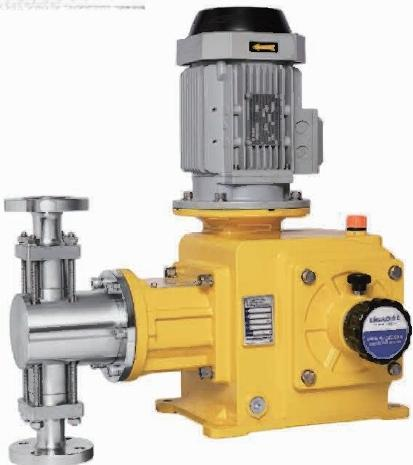

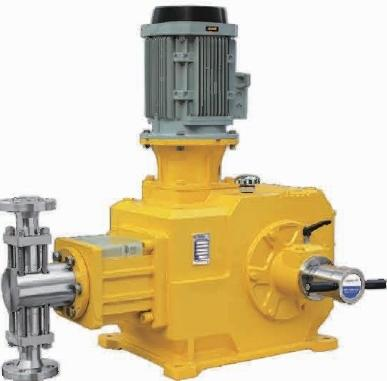

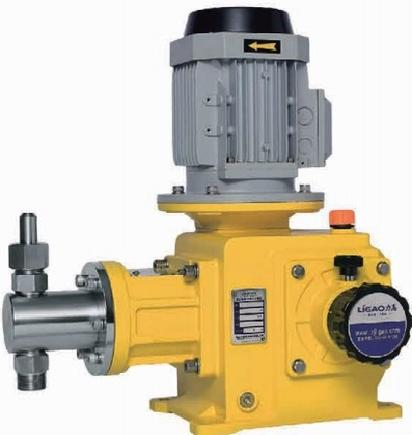

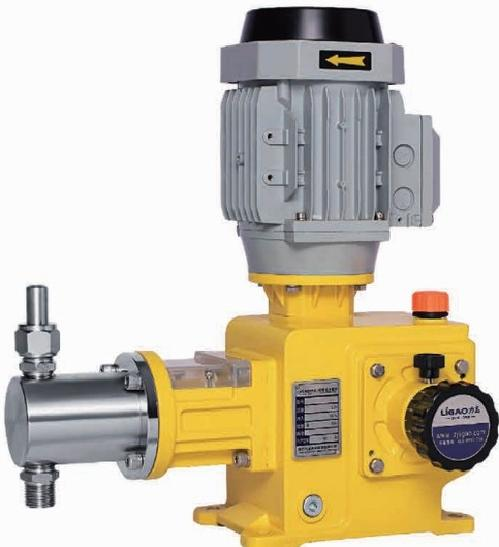

JPX Plunger Metering Pump
1. Single-head flow rate: Qmax = 230L/H
2. Pressure range: Pmax = 40MPa
3. Standard configuration: Materials 304 and 316L 380V/ 50Hz
4. Configuration Options: Materials: 316, 904, 2205, Ti, Hastelloy C, etc.; Motor: Variable frequency/explosion-proof; Special voltage/frequency.
PERFORMANCE PARAMETER
Model | Flow rate (L/H) | Pressure MPa | plunger diameter (mm) | Pump speed SPM | Trip mm | Motor power kW | Import/export connection |
JPX1/40 | 1 | 40 | 6 | 96 | 10 | 0.37 | φ6 connecting sleeve |
JPX2/40 | 2 | 40 | 6 | 20 | |||
JPX4/33 | 4 | 33 | 8 | ||||
JPX8/21 | 8 | twenty one | 10 | ||||
JPX11/14 | 11 | 14 | 12 | ||||
JPX20/8 | 20 | 8 | 16 | 96 | φ10 connecting sleeve | ||
JPX3315 | 33 | 5 | 20 | ||||
JPX52/3.3 | 52 | 3.3 | 25 | ||||
JPX65/2.6 | 65 | 2.6 | 28 | ||||
JPX88/2.0 | 88 | 2 | 32 | ||||
JPX105/1.7 | 105 | 1.7 | 35 | ||||
JPX125/1.4 | 125 | 1.4 | 38 | 96 | 15-inch pipe sleeve | ||
JPX155/1.1 | 155 | 1.1 | 42 | ||||
JPX190/1.0 | 190 | 1 | 38 | 144 | |||
JPX230/0.8 | 230 | 0.8 | 42 |
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion.
