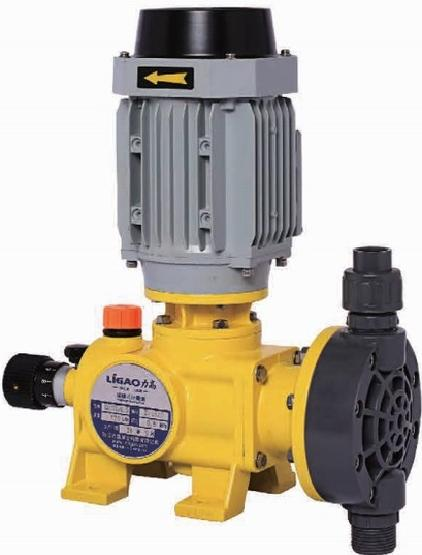

KD diaphragm metering pump
1. Flow range: Qmax = 180L/H
2. Pressure range: Pmax = 0.8 MPa
3. Standard configuration: Material: PVC, PVDF/PTFE, 304/316L, 380V/50Hz
4. Optional Configurations: Motor frequency conversion/explosion-proof, special voltage/frequency, pump head material and inlet/outlet connection method can be customized.
PERFORMANCE PARAMETER
Model | flow L/h | pressure MPa | Pump speed SPM | Diaphragm specifications mm | Motor power kW | Inlet and outlet diameter connection method | ||
PVC | PVDF/PTFE | 3041316L | ||||||
KD15/0.8 | 15 | 0.8 | 48 | 65 |
0.18 | 6×9 PE hose clamps |
Rc1/2" Internal thread |
φ10×16 Welding of pipe sleeve |
KD20/0.8 | 20 | 0.8 | 48 | |||||
KD40/0.8 | 40 | 0.8 | 96 | |||||
KD60/0.6 | 60 | 0.6 | 48 |
95 |
DN15 Connector sleeve adhesive joint | |||
KD80/0.6 | 80 | 0.6 | 96 | |||||
KD120/0.5 | 120 | 0.5 | 96 | |||||
KD180/0.5 | 180 | 0.5 | 144 | |||||
