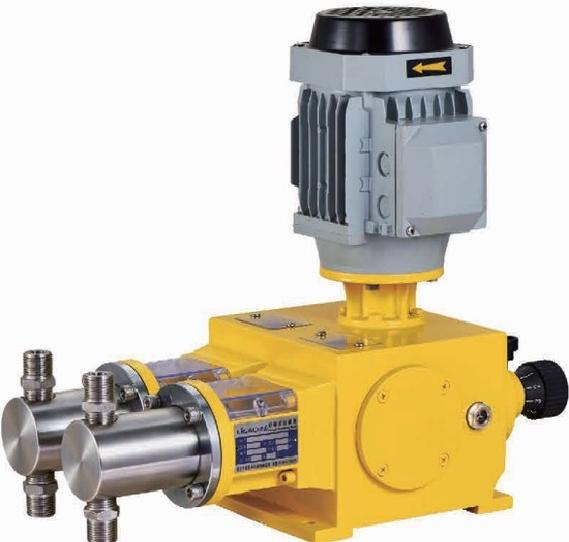

2JX plunger metering pump
1. Dual-head flow rate: Qmax = 450 L/H
2. Pressure range: Pmax = 40MPa
3. Standard configuration: Material 304, 316L, 380V/50Hz
4. Select configuration: Material 316, 904, 2205, Ti, Hastelloy C Etc., motor frequency conversion/explosion-proof, special voltage/frequency
|PERFORMANCE PARAMETER
Model | Flow rate (L/H) | Pressure MPa | plunger diameter (mm) | Pump speed SPM | Itinerary mm | Motor power kW | Import/export connection |
2JX4/40 | 4 | 40 | 6 |
96 |
20 |
0.37 |
6-pipe sleeve |
2JX8/26 | 8 | 26 | 8 | ||||
2JX16/14 | 16 | 14 | 10 | ||||
2JX22/10 | twenty two | 10 | 12 | ||||
2JX40/5.4 | 40 | 5.4 | 16 |
96 |
10-pipe sleeve | ||
2JX60/3.5 | 60 | 3.5 | 20 | ||||
2JX100/2.2 | 100 | 2.2 | 25 | ||||
2JX130/1.7 | 130 | 1.7 | 28 | ||||
2JX170/1.3 | 170 | 1.3 | 32 | ||||
2JX200/1.0 | 200 | 1 | 35 | ||||
2JX250/0.8 | 250 | 0.8 | 38 | 96 |
15-inch pipe sleeve | ||
2JX300/0.6 | 300 | 0.6 | 42 | ||||
2JX380/0.6 | 380 | 0.6 | 38 | 144 | |||
2JX450/0.5 | 450 | 0.5 | 42 |
Note: "Inlet and outlet connection" refers to the inner diameter of the inlet and outlet of a single pump head. For the inlet and outlet manifold diameter, please consult the company for a recommended flow rate table.
