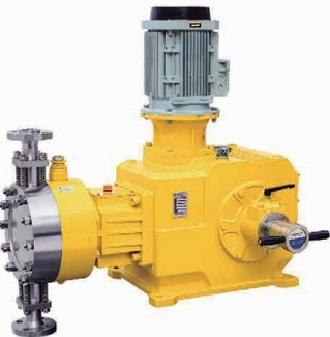

JYPG HYDRAULIC DIAPHRAGM METERING
1. Single-head flow rate: Qmax = 14200L/H
2. Pressure range: Pmax = 70MPa
3. Standard configuration: Material 304, 316L, 380V/50Hz
4. Select configuration: Material 316, PVDF/PTFE 904 2205 Ti , Ha C grade , motor frequency conversion/explosion-proof, special voltage/frequency, double or multi-layer diaphragm/alarm
PERFORMANCE PARAMETER
Model | flow L/H | Pressure MPa | plunger diameter mm | Pump speed SPM | journey mm | Import/export connection | |||
5.5kW | 7.5kW | 11kW | 15kW | ||||||
JYPG80/(50/70) | 80 | 50 | 70 | 1 | / | 16 |
144 |
60 |
DN15 flange (HG/T20615TG) |
JYPG130/(30/52/66/70) | 130 | 30 | 52 | 66 | 70 | 20 | |||
JYPG210/(21/30/43/58) | 210 | twenty one | 30 | 43 | 58 | 25 | |||
JYPG310/(15/21/30/40) | 310 | 15 | twenty one | 30 | 40 | 30 | |||
JYPG370/(13.2/18.5/ 27/36) | 370 | 13.2 | 18.5 | 27 | 36 | 32 |
144 |
DN25 flange (HG/T20615TG) | |
JYPG500/(10.7/14.5/ 23/28) | 500 | 10.7 | 14.5 | twenty three | 28 | 36 | |||
JYPG610/(8.6/12/18/23) | 610 | 8.6 | 12 | 18 | twenty three | 40 | |||
JYPG780/(6.8/9.5/14/18) | 780 | 6.8 | 9.5 | 14 | 18 | 45 | |||
JYPG960/(5.4/7.6/11/15) | 960 | 5.4 | 7.6 | 11 | 15 | 50 | |||
JYPG1200/(4.5/6.3/9.5 /12) | 1200 | 4.5 | 6.3 | 9.5 | 12 | 55 |
144 |
DN40 flange (HG/T20615TG) (HG/T20592RF) | |
JYPG1400/(3.8/5.4/8/10) | 1400 | 3.8 | 5.4 | 8 | 10 | 60 | |||
JYPG1560/(3.5/4.8/7.3/9) | 1560 | 3.5 | 4.8 | 7.3 | 9 | 63 | |||
JYPG1670/(3.2/4.5/6.7/8.5) | 1670 | 3.2 | 4.5 | 6.7 | 8.5 | 65 | |||
JYPG1910/(2.8/4/6/8) | 1910 | 2.8 | 4 | 6 | 8 | 70 | |||
JYPG2200/(2.4/3.5/5.1/7) | 2200 | 2.4 | 3.5 | 5.1 | 7 | 75 | |||
JYPG2500/(2.2/3.1/ 4.5/6) | 2500 | 2.2 | 3.1 | 4.5 | 6 | 80 | |||
JYPG2850/(2/2.714/5.2 ) | 2850 | 2 | 2.7 | 4 | 5.2 | 85 |
144 |
DN50 flange (HG/T20592RF) | |
JYPG3200/(1.8/2.4/3.6/4.6 ) | 3200 | 1.8 | 2.4 | 3.6 | 4.6 | 90 | |||
JYPG3600/(1.6/2.1/3.2/4.1) | 3600 | 1.6 | 2.1 | 3.2 | 4.1 | 95 | |||
JYPG4000/(1.4/1.9/2.8/3.6 ) | 4000 | 1.4 | 1.9 | 2.8 | 3.6 | 100 | |||
JYPG4800/(1.2/1.6/2.4/3) | 4800 | 1.2 | 1.6 | 2.4 | 3 | 110 |
144 | DN65 flange (HG/T20592RF) | |
JYPG5700/(1/1.3/2/2.5 ) | 5700 | 1 | 1.3 | 2 | 2.5 | 120 | |||
JYPG6750/(0.8/1.1/1.712.1) | 6750 | 0.8 | 1.1 | 1.7 | 2.1 | 130 | |||
JYPG7800/(0.7/1/1.5/ 1.9) | 7800 | 0.7 | 1 | 1.5 | 1.9 | 140 |
144 | DN80 flange (HG/T20592RF) | |
JYPG9000/(0.6/0.8/1.2/1.5 ) | 9000 | 0.6 | 0.8 | 1.2 | 1.5 | 150 | |||
JYPG10200/(0.5/0.7/1/1.3 ) | 10200 | 0.5 | 0.7 | 1 | 1.3 | 160 | |||
JYPG11500/(0.4/0.6/0.9/1.2 ) | 11500 | 0.4 | 0.6 | 0.9 | 1.2 | 170 |
144 | DN100 flange (HG/T20592RF) | |
JYPG12800/(0.5/0.8/1) | 12800 | 1 | 0.5 | 0.8 | 1 | 180 | |||
JYPG14200/(0.6/0.8) | 14200 | 1 | / | 0.6 | 0.8 | 190 | |||
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion.
