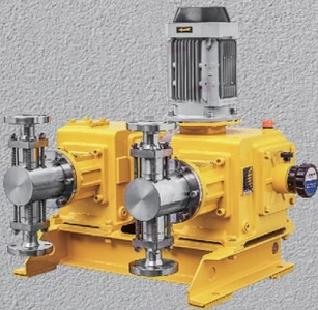

2TJYPZ HYDRAULIC DIAPHRAGM METERING
1. Single-head flow rate: Qmax = 1600L/H
2. Pressure range: Pmax = 70MPa
3. Standard configuration: Material 304, 316L 380V /50Hz
4. Select configuration: Material 316, PVDF/PTFE 904 2205 Ti , Hastelloy C , etc., motor frequency conversion/explosion - proof, special voltage/frequency, double or multi-layer diaphragm/alarm
PERFORMANCE PARAMETER
Model | flow Pressure MPa | plunger diameter mm | Pump speed SPM | journey mm | Import/export connection | |||
L/H | 0.75kW | 1.1kW | 1.5kW | |||||
2TJYPZ8/(56/70) | 8 | 56 | 70 | / | 8 |
96 |
25 |
6-pipe sleeve |
2TJYPZ13/(36/55/68) | 13 | 36 | 55 | 68 | 10 | |||
2TJYPZ20/(25/40/56) | 20 | 25 | 40 | 56 | 12 | |||
2TJYPZ36/(19/29/41) | 36 | 19 | 29 | 41 | 12 | 144 | ||
2TJYPZ46/(14/22/31) | 46 | 14 | twenty two | 31 | 16 | 96 |
10-pipe sleeve | |
2TJYPZ72/(10/16/23) | 72 | 10 | 16 | twenty three | 16 |
144 | ||
2TJYPZ95/(8.5/13/18) | 95 | 8.5 | 13 | 18 | 18 | |||
2TJYPZ120/(7/11/15) | 120 | 7 | 11 | 15 | 20 | |||
2TJYPZ150/(5.89/12.5) | 150 | 5.8 | 9 | 12.5 | twenty two | |||
2TJYPZ200/(4.3/6.8/9.5) | 200 | 4.3 | 6.8 | 9.5 | 25 | |||
2TJYPZ270/(34.7/6.8) | 270 | 3 | 4.7 | 6.8 | 30 |
144 |
15-inch pipe sleeve | |
2TJYPZ320/(2.8/4.2/6) | 320 | 2.8 | 4.2 | 6 | 32 | |||
2TJYPZ400/(2.13.2/4.8) | 400 | 2.1 | 3.2 | 4.8 | 36 | |||
2TJYPZ500/(1.7/2.6/3.8) | 500 | 1.7 | 2.6 | 3.8 | 40 | |||
2TJYPZ650/(1.4/2.1/3.1) | 650 | 1.4 | 2.1 | 3.1 | 45 |
144 |
DN25 flange (HG/T20592RF) | |
2TJYPZ800/(1.1/1.712.4) | 800 | 1.1 | 1.7 | 2.4 | 50 | |||
2TJYPZ1000/(0.9/1.4/1.9) | 1000 | 0.9 | 1.4 | 1.9 | 55 | |||
2TJYPZ1200/(0.711.1/1.6) | 1200 | 0.7 | 1.1 | 1.6 | 60 | |||
2TJYPZ1400/(0.6/1/1.3) | 1400 | 0.6 | 1 | 1.3 | 65 | |||
2TJYPZ1600/(0.5/0.8/1.1) | 1600 | 0.5 | 0.8 | 1.1 | 70 | |||
Note: "Inlet/outlet connection" refers to the inner diameter of the inlet and outlet of a single pump head. For the inlet/outlet manifold diameter, please consult the company for a recommended flow rate table.
