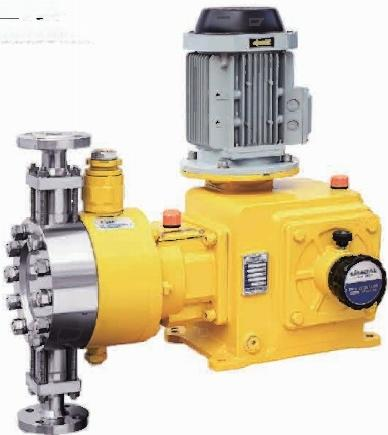

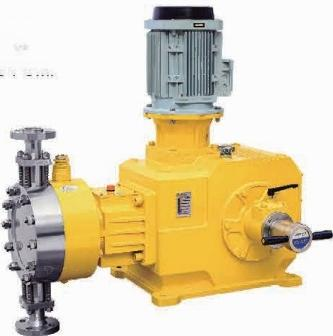

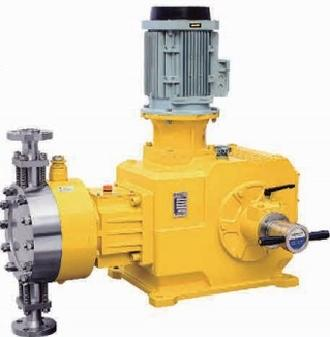

JYPW HYDRAULIC DIAPHRAGM METERING
1. Single-head flow rate: Qmax = 21000L/H
2. Pressure range: Pmax = 70MPa
3. Standard configuration: Material 304, 316L, 380V/50Hz
4. Select configuration: Material 316, PVDF/PTFE 904 2205 Ti , Hastelloy C , etc., motor frequency conversion/explosion - proof, special voltage/frequency, double or multi-layer diaphragm/alarm
PERFORMANCE PARAMETER
Model | 流量 L/H | 压力MPa | 柱塞直径 mm | 泵速 SPM | 行程 mm | 进出口连接 | |||
15kW | 18.5kW | 22kW | 30kW | ||||||
JYPW110/70 | 110 | 70 | / | / | / | 20 |
96 |
80 |
DN15法兰 (HG/T20615TG) |
JYPW180/(65/70) | 180 | 65 | 70 | / | 1 | 25 | |||
JYPW260/(45/58/70) | 260 | 45 | 58 | 70 | / | 30 | |||
JYPW310/(40/50/60/70) | 310 | 40 | 50 | 60 | 70 | 32 | |||
JYPW380/(32/41/48/66) | 380 | 32 | 41 | 48 | 66 | 36 |
96 |
DN25法兰 (HG/T20615TG) | |
JYPW500/(27/34/40/54) | 500 | 27 | 34 | 40 | 54 | 40 | |||
JYPW650/(21/27/31/42) | 650 | 21 | 27 | 31 | 42 | 45 | |||
JYPW820/(17/21/25.5/35) | 820 | 17 | 21 | 25.5 | 35 | 50 | |||
JYPW1000/(14.5/17.5/21/29) | 1000 | 14.5 | 17.5 | 21 | 29 | 55 |
96 |
DN40法兰 (HG/T20615TG) (HG/T20592RF) | |
JYPW1200/(12/15/18/24) | 1200 | 12 | 15 | 18 | 24 | 60 | |||
JYPW1320/(11/13.5/16/21) | 1320 | 11 | 13.5 | 16 | 21 | 63 | |||
JYPW1410/(10.2/12.8/15.2/20) | 1410 | 10.2 | 12.8 | 15.2 | 20 | 65 | |||
JYPW1650/(9/11/13/18) | 1650 | 9 | 11 | 13 | 18 | 70 | |||
JYPW1900/(8/10/12/16) | 1900 | 8 | 10 | 12 | 16 | 75 | |||
JYPW2200/(7/8.5/10.5/14) | 2200 | 7 | 8.5 | 10.5 | 14 | 80 | |||
JYPW2450/(6/7.5/9/12) | 2450 | 6 | 7.5 | 9 | 12 | 85 | |||
JYPW2800/(5.4/6.8/8/10.6) | 2800 | 5.4 | 6.8 | 8 | 10.6 | 90 |
96 |
DN50法兰 (HG/T20592RF) | |
JYPW3100/(4.8/6/7.1/9.5) | 3100 | 4.8 | 6 | 7.1 | 9.5 | 95 | |||
JYPW3400/(4.4/5.5/6.5/8.8) | 3400 | 4.4 | 5.5 | 6.5 | 8.8 | 100 | |||
JYPW4200/(3.5/4.5/5.3/7) | 4200 | 3.5 | 4.5 | 5.3 | 7 | 110 | |||
JYPW5000/(3/3.8/4.5/6) | 5000 | 3 | 3.8 | 4.5 | 6 | 120 |
96 | DN65法兰 (HG/T20592RF) | |
JYPW5800/(2.5/3.2/3.8/5.1) | 5800 | 2.5 | 3.2 | 3.8 | 5.1 | 130 | |||
JYPW6800/(2.2/2.8/3.3/4.5) | 6800 | 2.2 | 2.8 | 3.3 | 4.5 | 140 | |||
JYPW8000/(1.9/2.4/2.9/3.9) | 8000 | 1.9 | 2.4 | 2.9 | 3.9 | 150 |
96 | DN80法兰 (HG/T20592RF) | |
JYPW9000/(1.7/2.1/2.5/3.4) | 9000 | 1.7 | 2.1 | 2.5 | 3.4 | 160 | |||
JYPW10100/(1.5/1.9/2.2/3) | 10100 | 1.5 | 1.9 | 2.2 | 3 | 170 | |||
JYPW11400/(1.4/1.7/2/2.8) | 11400 | 1.4 | 1.7 | 2 | 2.8 | 180 |
96 | DN100法兰 (HG/T20592RF) | |
JYPW12700/(1.2/1.5/1.8/2.5) | 12700 | 1.2 | 1.5 | 1.8 | 2.5 | 190 | |||
JYPW14000/(1.1/1.4/1.6/2.3) | 14000 | 1.1 | 1.4 | 1.6 | 2.3 | 200 | |||
JYPW15200/(1.1/1.3/1.5/2.2) | 15200 | 1.1 | 1.3 | 1.5 | 2.2 | 170 |
144 |
DN125法兰 (HG/T20592RF) | |
JYPW17000/(1/1.2/1.5/2) | 17000 | 1 | 1.2 | 1.5 | 2 | 180 | |||
JYPW19000/(0.9/1.1/1.3/1.8) | 19000 | 0.9 | 1.1 | 1.3 | 1.8 | 190 | |||
JYPW21000/(0.8/1/1.2/1.6) | 21000 | 0.8 | 1 | 1.2 | 1.6 | 200 | |||
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion.
