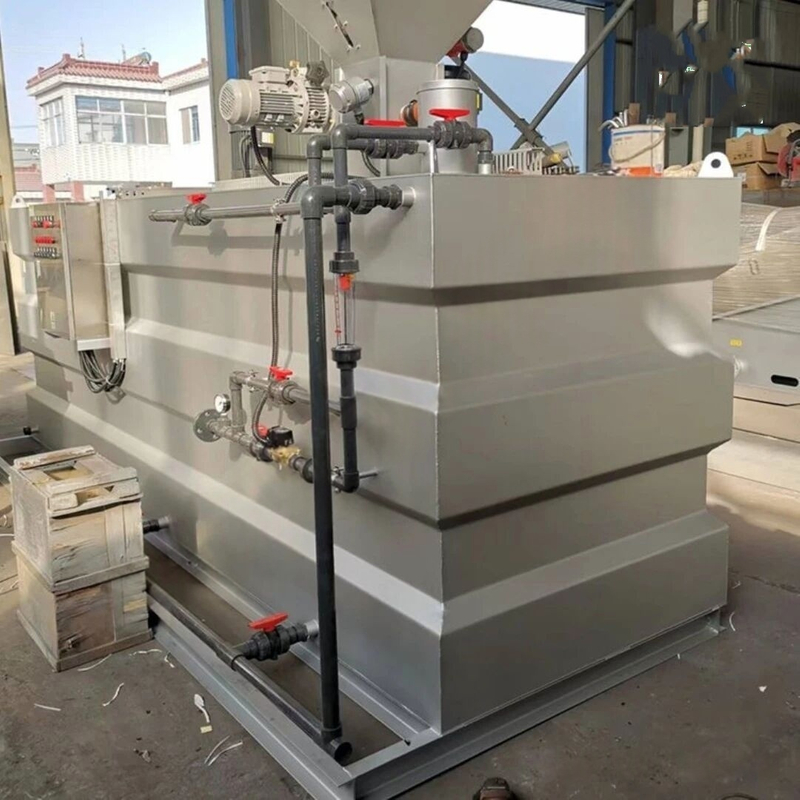

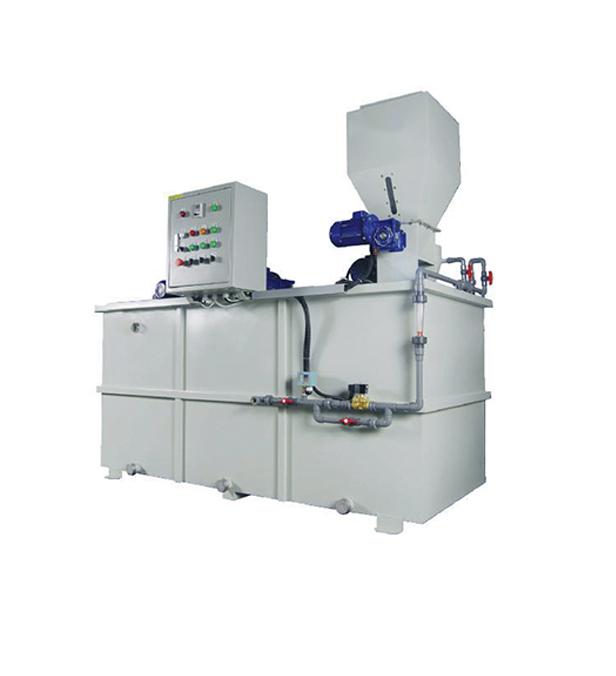

PAC/PAM Dry Powder Dosing Device

PAC/PAM  Dry powder dosing device

Working principle

completed step-by-step through separate solution tanks . This ensures optimal reaction time within each tank. A constant concentration is maintained to avoid any direct pathway between the pre-treatment tank and the final solution tank. The equipment is automatically controlled by a control box, which is connected to the final solution tank. The level gauge on the tank is connected. Once the liquid level reaches the "low" level, the electric inlet valve is triggered and opens. The contact flow meter then starts the dry dispensing operation, with the dispensing rate adjusted according to the water volume. The concentration is determined to obtain a precise level. Once the "high" level is reached, this cycle stops. Of course, two (or three) stirrers are still operating. This device is also used to mix latex... The system continuously and automatically prepares standard dilution solutions (0.3-5 g/L) from cationic, anionic, or nonionic polymers. Although it is generally believed that the curing time required to prepare standard solutions from latex polymers is much shorter than that for granular polymers, sufficient curing time is always recommended to achieve optimal drug performance.

Features

1. Highly integrated all-in-one equipment;

2. Fully automated control function;

3. The equipment is small in size, simple to operate, and easy to install; only a water and power source are needed on site .

4. The medicine mixer is made of one piece of stainless steel, ensuring 100% effective dissolution of the medicine;

5. Safe and reliable operation, stable performance;

6. Excellent corrosion resistance; all materials in contact with the medium are made of engineering plastics and stainless steel.

7. It is suitable for powdery materials, fibrous materials, materials that are difficult to dissolve, easy to clump, and materials with high dosing requirements , as well as for the preparation and dosing of liquid materials;

8. High-efficiency stainless steel special speed-reducing mixer to prevent the breakage of large molecular chains;

Standard allow match Place

1. Three-chamber solution tank with three drain outlets;

2. Two mixers and one metering pump;

3. The water inlet assembly includes a pressure reducing valve and a shut-off valve;

4. Dry casting machines are equipped with hoppers;

5. Liquid level switch and liquid level gauge;

6. Control box, overflow port, dosing port, solenoid valve, flow meter

Application areas

Municipal water supply, sewage treatment, nuclear power, petroleum, chemical, thermal power raw water treatment, wastewater treatment

Data parameters
