It is mainly used to quickly dissolve powdered reagents such as PAC, PAM, and FeSO4 to prepare liquid reagents of the required concentration for convenient addition and use.

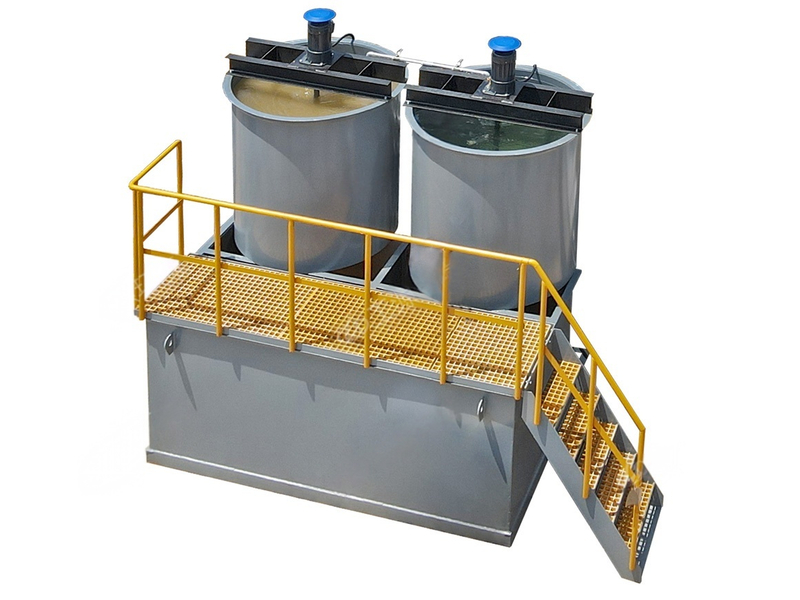

The GJY-type dosing system adopts a high-low tank structure, mainly composed of a dissolving tank, a storage tank, a dissolving agitator, an operating platform, and a ladder. The standard configuration does not include a dosing pump (various types of dosing pumps can be selected according to customer requirements). The dissolving tank is equipped with a stirrer, where the reagent is prepared according to the dosage concentration. The prepared solution flows to the storage tank for storage and is then added by the dosing pump. This system is simple in structure, easy to operate, and economical.
GMC Dosing Device Parameter Table
Model | Drug dissolving vessel dimensions (m ) | The dissolving vessel has an effective volume (L ). | Mixer power (kW ) |
GMC500 | φ0.8×1.15 | 500 | 0.75 |
GMC1000 | φ1.06×1.3 | 1000 | 0.75 |
GMC1500 | φ1.2×1.45 | 1500 | 0.75 |
GMC2000 | φ1.3×1.6 | 2000 | 1.5 |
GMC3000 | φ1.6×1.8 | 3000 | 1.5 |
GMC5000 | φ1.85×2.37 | 5000 | 1.5 |
GJY Type Dosing Device Parameter Table
Model | Dissolving tank dimensions (m) (m) | Dissolving vessel Effective volume (L) (L) | Medicine storage tank dimensions (m) Tank dimensions (m) | Medicine storage tank Effective volume (L) (L) | Mixer power (kW) (kW) |
GJY500 | φ0.8x1.25 | 500 | φ1.15x1.25 | 1000 | 0.75 |
GJY1000 | φ1.15x1.25 | 1000 | φ1.4x1.25 | 1500 | 0.75 |
GJY1500 | φ1.4x1.25 | 1500 | φ1.6x1.25 | 2000 | 0.75 |
