Air Operated Double Diaphragm Pump

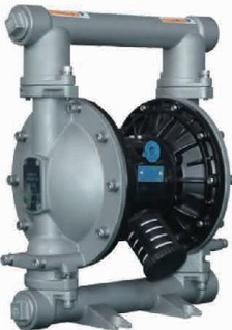

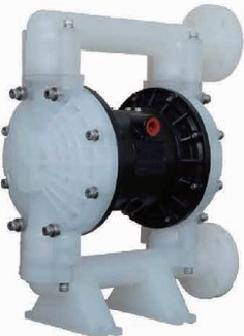

PNEUMATIC DIAPHRAGM PUMP

SUMMARY

A pneumatic diaphragm pump is a device that uses compressed air as a power source. A pneumatic reversing structure drives a double-headed diaphragm to reciprocate. The inlet and outlet check valves alternately close, thus achieving the intake and exhaust of the medium. Out. Maximum flow rate ≤ 60 m³/H,  Maximum pressure ≤ 8.4 Bar , maximum solids content particle size ≤ 10 mm .

TEATURES

1. Air-driven, simple structure, and high safety.

2. Wide range of applications: It has a certain self-priming ability and can be used for materials with a certain viscosity and solid content.

3. It has good flow performance at the flow end and has a certain self-protection function according to the gas source pressure.

4. The pump's flow rate and pressure are easy to adjust; this can be achieved by adjusting the air source pressure and air consumption.

5. The pump requires no lubrication or cooling, resulting in low operating and maintenance costs.

6. Extremely low shear force on materials, resulting in minimal pump wear.

7. Diverse flow end and diaphragm materials save costs while meeting corrosion and abrasion resistance requirements.

8. Optimized structural components allow for expansion into various models, including high-pressure, powder, and sanitary pneumatic diaphragm pumps.

9. The flow-through end structure can be extended to electric diaphragm pump products, making it widely applicable .

APPLICATION

Chemical industry, environmental protection, coatings, power energy, machinery manufacturing, shipbuilding, pharmaceuticals, etc.

PERFORMANCE PARA METER
