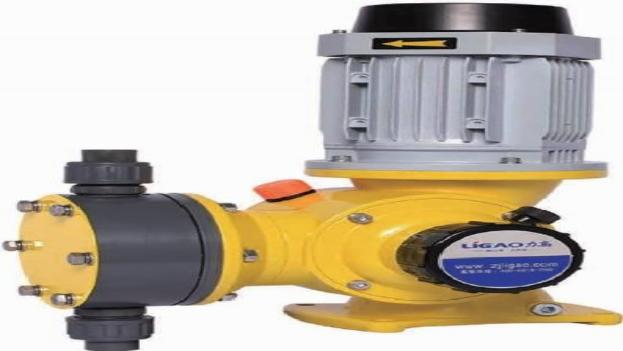

GM Diaphragm Metering Pump
1. Flow range: Qmax = 500L/H
2. Pressure range: Pmax = 1.2 MPa
3. Standard configuration: Material: PVC, PVDF/PTFE, 304/316L, 380V/50Hz
4. Optional Configurations: Variable frequency explosion-proof motor, special voltage/frequency, pump head material and inlet/outlet connection methods are customizable.
PERFORMANCE PARAMET ER
Model | flow L/h | pressure MPa | Pump speed SPM | Diaphragm specifications mm | Motor power kW | Inlet/outlet diameter/connection method | ||
PVC | PVDF/PTFE | 304/316L | ||||||
GM10/1.2 | 10 | 1.2 | 48 |
65 |
0.37 | 6x9 PE hose clamps |
Rc 1/2” Internal thread |
φ10×16 Welding of pipe sleeve |
GM25/1.0 | 25 | 1.0 | 48 | |||||
GM50/1.0 | 50 | 1.0 | 96 |
DN15 Connector sleeve adhesive joint | ||||
GM90/0.7 | 90 | 0.7 | 48 |
112 | ||||
GM120/0.7 | 120 | 0.7 | 48 | |||||
GM170/0.7 | 170 | 0.7 | 96 |
Rc3/4" Internal thread |
15×22 Welding of pipe sleeve | |||
GM240/0.5 | 240 | 0.5 | 96 | |||||
GM330/0.5 | 330 | 0.5 | 96 | |||||
GM400/0.5 | 400 | 0.5 | 144 | DN20 Connector sleeve adhesive joint | ||||
GM500/0.5 | 500 | 0.5 | 144 | |||||
Note: Diaphragm rupture detection and dual diaphragm rupture alarm are optional.
