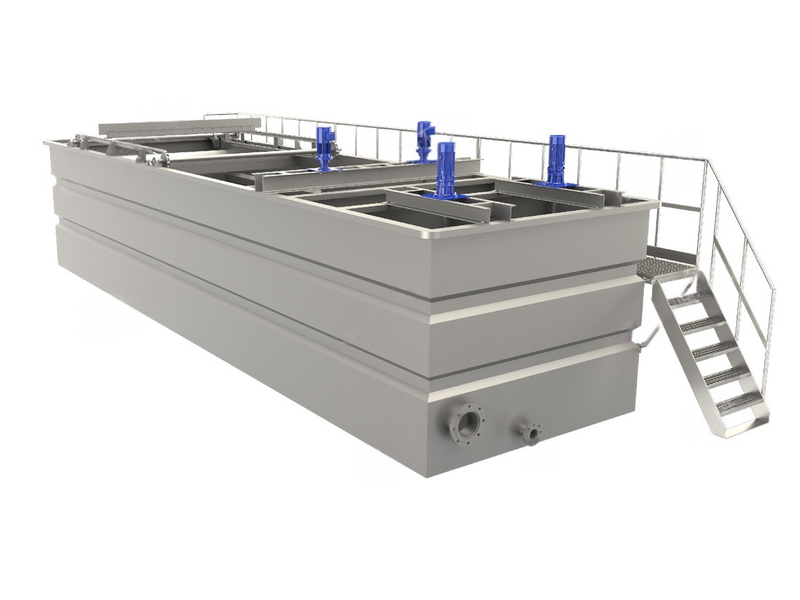

GWAF Type Vortex Concave Air Flotation

GWAF type vortex concave air flotation

Advantages

●No need for circulation pumps, air compressors, or pressure vessels

● Saves on operating costs and floor space, and reduces investment.

● Simple, compact, and maintenance-free

● Particularly suitable for treating oily wastewater

application

●Pretreatment of oily wastewater

● Oily wastewater treatment in the petrochemical processing industry

● Oily wastewater and reinjection water from oil extraction industry

● Wastewater treatment in the meat processing industry

● Wastewater treatment in the dairy processing industry

●White water treatment in pulp and paper manufacturing

● Oily wastewater treatment in the machinery processing industry

principle

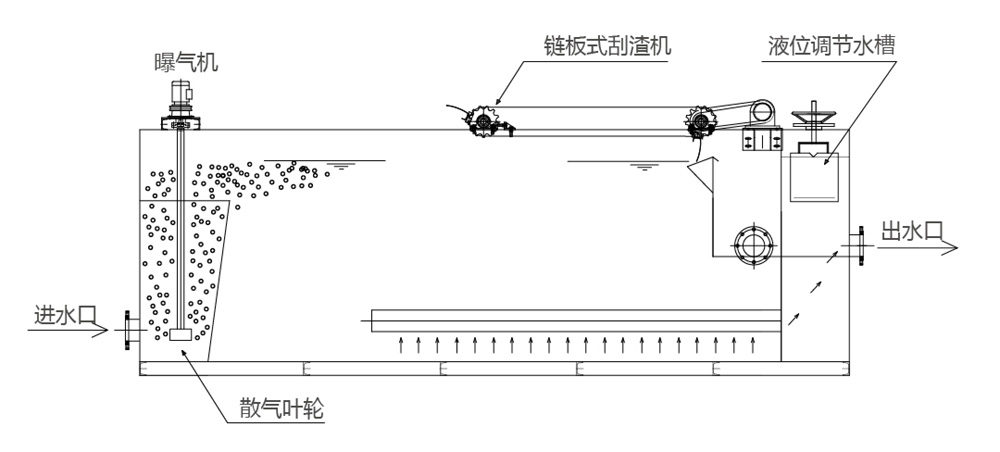

The vortex-type dissolved air flotation system consists of an aerator, a flotation tank, a sludge scraper, and an electrical control box. The aerator generates bubbles by drawing in air through a high-speed rotating motor, and then distributes these microbubbles evenly into the wastewater through a stainless steel diffuser impeller.

Aerators utilize the high-speed rotation of a drive impeller to create centrifugal force, which generates negative pressure around it, drawing air or other gases above the water surface into the aeration port and then releasing them from the aeration outlet submerged in water. When bubbles are generated in the small holes of the aeration impeller, the high-speed rotating impeller cuts the bubbles into tiny bubble fragments with a diameter of 30-100 micrometers.

After the flocculated wastewater enters the flotation tank, it mixes with these microbubbles, bringing the suspended solids to the surface. During the bubbling process, the microbubbles attach to the suspended solids. Once they reach the surface, the suspended solids are supported by these bubbles and held on the surface. The scum formed on the surface is then scraped into the scum trough by a scum scraper.

The sample parameters and images are for reference only. YUHAO Company reserves the right to make continuous improvements. All parameters are subject to confirmation by both parties.
