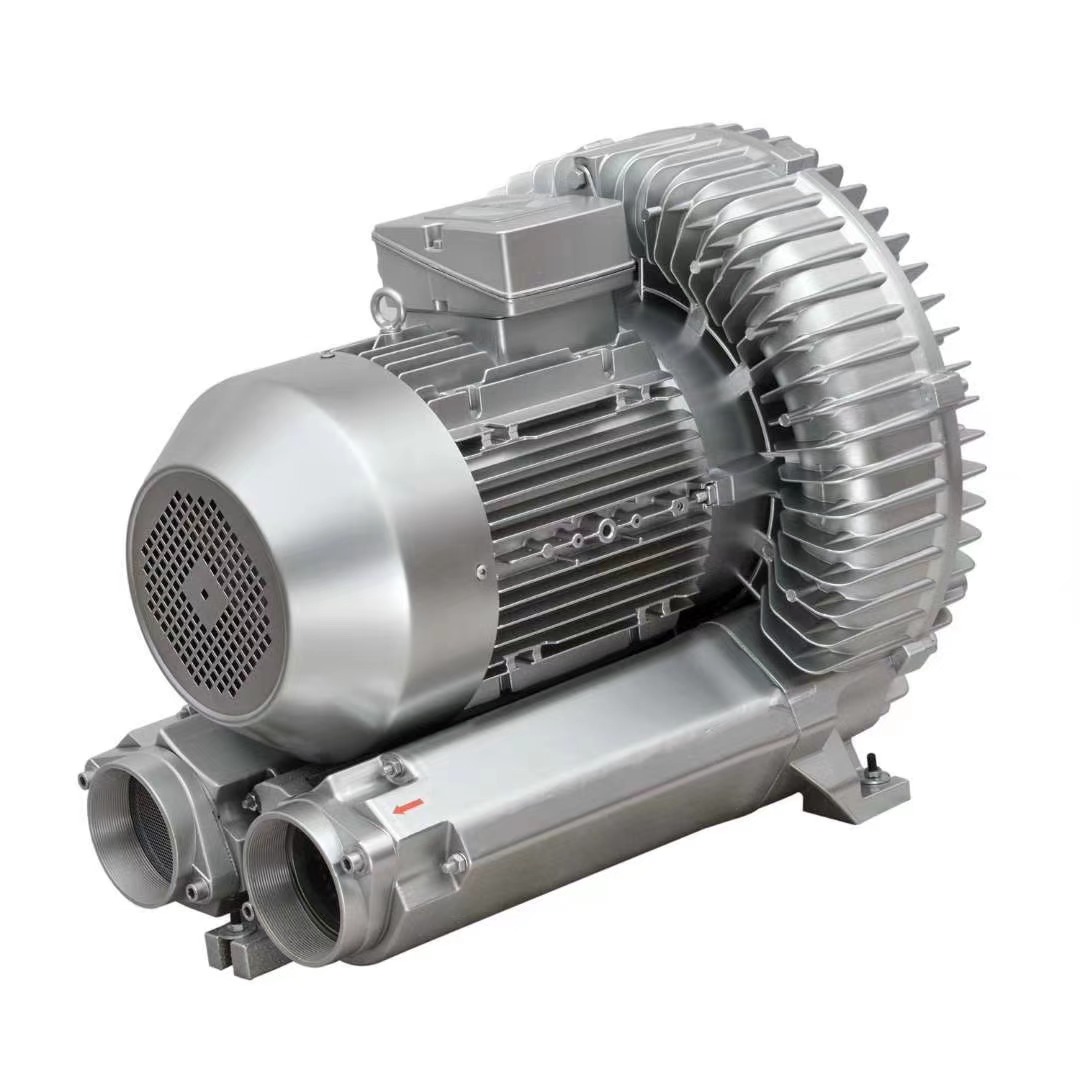

The Fengzhide FZD high-pressure blower is introduced by Ence Company with foreign technology and manufactured using German Siemens technical processes. Its core components adopt NSK/SKF imported bearings, providing excellent rigidity and suitability for long-term non-stop operation. The angled blade design enhances air volume and pressure. Structurally, it is directly driven by an F-class two-pole motor, equipped with maintenance-free shaft seals (to separate the motor from the blower body), separately cast casings for the blower and motor, and silencers on both intake and exhaust pipes to reduce noise.
| Parameter Category | Specific Range |
|---|---|
| Power | 0.2KW - 30KW |
| Air Volume | 1.4 m³/min - 40 m³/min |
| Voltage | Universal voltage (50Hz/60Hz, three-phase/single-phase, 200V-240V-345V-415V, with stock) |
| Pressure | 6 kPa - 105 kPa |
Performance: Low vibration, high wind pressure, large air volume, and high pressure.
Design: Compact size, light weight, new design, and oil-free gas.
Maintenance: Maintenance-free, long service life, and low noise.
After gas is sucked in, the rotating impeller imparts velocity to it. Centrifugal force accelerates and pressurizes the gas outward.
As rotation continues, the kinetic energy of the gas increases, further raising the pressure of the gas in the side channel, which is finally discharged through the outlet silencer.
The impeller is directly connected to the motor rotor, achieving contactless compression. The external bearings ensure reliability.
Industry: Steel metallurgy, chemical/pharmaceutical, plastic machinery, waste treatment.
Agriculture: Agricultural ecological engineering.
Equipment: Drying equipment, packaging equipment, purification equipment, textile machinery, etc.
Composition: Pump size + number of stages + configuration + power + motor phase.
Example: TB|50|2|SG|040|T (two-stage series, 4.0KW, three-phase).
Causes of reduced air flow: Clogged filters, reduced rotation speed, increased resistance, etc.
Solutions: Clean the filter, check voltage/motor, reduce resistance, etc.
The product has passed the 3C inspection by the National Quality Inspection Bureau, SGS certification, and CE certification, ensuring quality and safety.
