● Simple design, small size, low power consumption, high efficiency, and stable performance.
● Overcame the problem of easy clogging in various conventional dissolved gas devices, and truly achieved continuous "clogging-free" operation.
● Electrical control is safe and reliable, with a high level of automation and convenient operation.
● Possesses multiple patented technologies, achieving a dissolved air efficiency of over 98%.

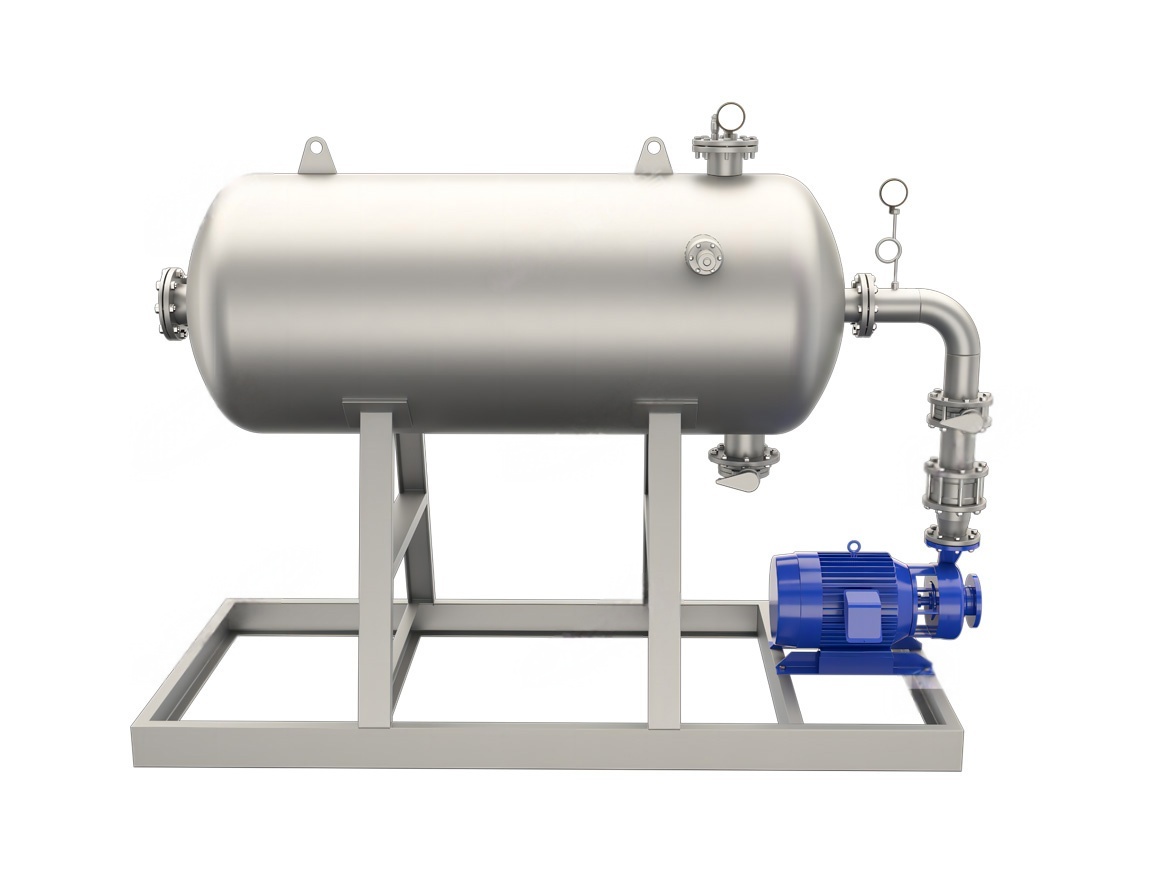

Utilizing the principle of jet aspiration at a working pressure of around 0.4 MPa, the high-speed movement of water allows air to dissolve into the water to a maximum extent in a short period of time, forming supersaturated dissolved air water.
Model number | Dissolved air water volume (m²/h) | Main motor (kW ) | Gas filling motor (kW) Motor (kW) | Equipment gross weight (kg) | Working weight (kg ) |
GFA5 | 1.5~2.5 | 4 | 0.55 | 680 | 720 |
GFA10 | 3~5 | 4 | 0.75 | 700 | 750 |
GFA20 | 7~10 | 5.5 | 0.75 | 720 | 800 |
GFA30 | 10~12 | 5.5 | 0.75 | 750 | 840 |
GFA40 | 12~15 | 5.5 | 0.75 | 800 | 900 |
GFA50 | 15~20 | 7.5 | 1.5 | 900 | 1000 |
GFA60 | 20~25 | 7.5 | 1.5 | 900 | 1000 |
GFA80 | 25~30 | 11 | 2.2 | 1000 | 1500 |
GFA100 | 30~35 | 15 | 2.2 | 1300 | 1900 |
GFA150 | 35~45 | 15 | 2.2 | 1500 | 2400 |
GFA200 | 60~70 | twenty two | 4 | 1900 | 3100 |
GFA250 | 80~90 | twenty two | 4 | 2500 | 4000 |
GFA300 | 100~120 | 30 | 5.5 | 3000 | 4900 |
GFA500 | 160~180 | 45 | 7.5 | 4200 | 6000 |
GFA800 | 250~300 | 75 | 11 | 6500 | 11000 |
