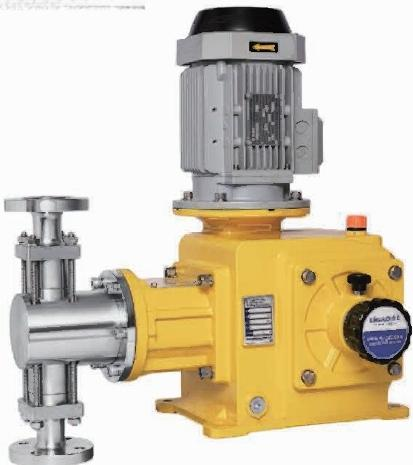

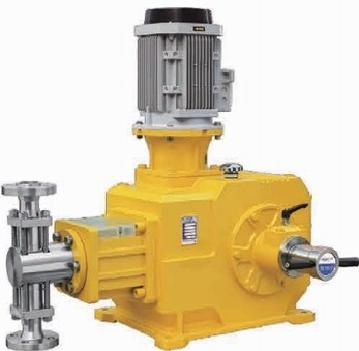

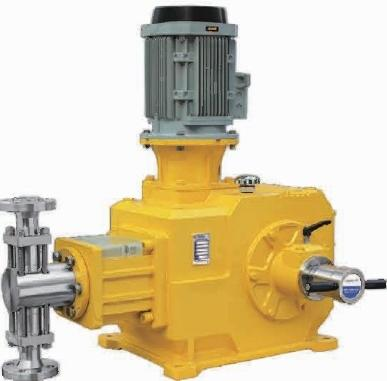

JPW plunger metering pump
JPW plunger metering pump
1. Single -head flow rate: Qmax = 21300 L/H
2. Pressure range: Pmax = 50MPa
3. Standard configuration: Material 304, 316L 38 0V /50Hz
4. Select configuration: Material 316, 904 , 2205, Ti, Hastelloy C wait,
Motor frequency conversion/explosion-proof, special voltage/frequency
Performance parameters
Model | flow L/H | Pressure MPa | plunger diameter mm | Pump speed SPM | journey mm | Import/export connection | |||
15W | 18kW | 22kW | 30kW | ||||||
JPW250/50 | 250 | 50 | / | / | / | 28 | 96 |
80 | DN15 flange (HG/T20615TG) |
JPW330/(40/50) | 330 | 40 | 50 | / | 1 | 32 | |||
JPW480/(29/35/42/50) | 480 | 29 | 35 | 42 | 50 | 38 | 96 | DN25 flange (HG/T20615TG) | |
JPW580/(24/30/34146) | 580 | twenty four | 30 | 34 | 46 | 42 | |||
JPW830/(17121/25/34) | 830 | 17 | twenty one | 25 | 34 | 50 | |||
JPW1010/(14/17.5/21/28) | 1010 | 14 | 17.5 | twenty one | 28 | 55 |
96 |
DN40 flange (HG/T20615TG) (HG/T20592RF) | |
JPW1200/(12/15/18/24) | 1200 | 12 | 15 | 18 | 24 | 60 | |||
JPW1450/(10/12.5/15/20) | 1450 | 10 | 12.5 | 15 | 20 | 65 | |||
JPW1680/(9/11/13/18) | 1680 | 9 | 11 | 13 | 18 | 70 | |||
JPW1950/(8/9.5/11.5/15) | 1950 | 8 | 9.5 | 11.5 | 15 | 75 | |||
JPW2220/(7/8.4/10/13.5) | 2220 | 7 | 8.4 | 10 | 13.5 | 80 | |||
IPW2510/(6/7.4/8.9/12) | 2510 | 6 | 7.4 | 8.9 | 12 | 85 | |||
JPW2850/(5.4/6.6/8/10.5 ) | 2850 | 5.4 | 6.6 | 8 | 10.5 | 90 |
96 |
DN50 flange (HG/T20592RF) | |
JPW3160/(4.8/6/7.1/9.5 ) | 3160 | 4.8 | 6 | 7.1 | 9.5 | 95 | |||
JPW3500/(4.2/5.2/6.4/8.5 ) | 3500 | 4.2 | 5.2 | 6.4 | 8.5 | 100 | |||
JPW4250/(3.5/4.2/5.3/7) | 4250 | 3.5 | 4.2 | 5.3 | 7 | 110 | |||
JPW5050/(3/3.6/4.5/6) | 5050 | 3 | 3.6 | 4.5 | 6 | 120 | 96 | DN65 flange (HG/T20592RF) | |
JPW6000/(2.6/3.1/3.8/5) | 6000 | 2.6 | 3.1 | 3.8 | 5 | 130 | |||
JPW7000/(2.2/2.7/3.2/4.2 ) | 7000 | 2.2 | 2.7 | 3.2 | 4.2 | 140 | |||
JPW8000/(1.9/2.4/2.8/ 3.8) | 8000 | 1.9 | 2.4 | 2.8 | 3.8 | 150 | 96 | DN80 flange (HG/T20592RF) | |
JPW9100/(1.6/2.12.4/3.2 ) | 9100 | 1.6 | 2.1 | 2.4 | 3.2 | 160 | |||
JPW10200/(1.4/1.9/2.2/2.8) | 10200 | 1.4 | 1.9 | 2.2 | 2.8 | 170 | |||
JPW115007 (1.3/1.7/1.9/2.5) | 11500 | 1.3 | 1.7 | 1.9 | 2.5 | 180 | 96 | DN100 flange (HG/T20592RF) | |
JPW12800/(1.11.5/1.8/2.2 ) | 12800 | 1.1 | 1.5 | 1.8 | 2.2 | 190 | |||
JPW14200/(1/1.3/1.6/2) | 14200 | 1 | 1.3 | 1.6 | 2 | 200 | |||
JPW15400/(1/1.3/1.6/2) | 15400 | 1 | 1.3 | 1.6 | 2 | 170 |
144 |
DN125 flange (HG/T20592RF) | |
JPW17200/(0.9/1.2/1.5/1.8) | 17200 | 0.9 | 1.2 | 1.5 | 1.8 | 180 | |||
JPW19200/(0.8/1/1.3/1.7 ) | 19200 | 0.8 | 1 | 1.3 | 1.7 | 190 | |||
JPW21300/(0.710.9/1.2/1.5) | 21300 | 0.7 | 0.9 | 1.2 | 1.5 | 200 | |||
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion .
