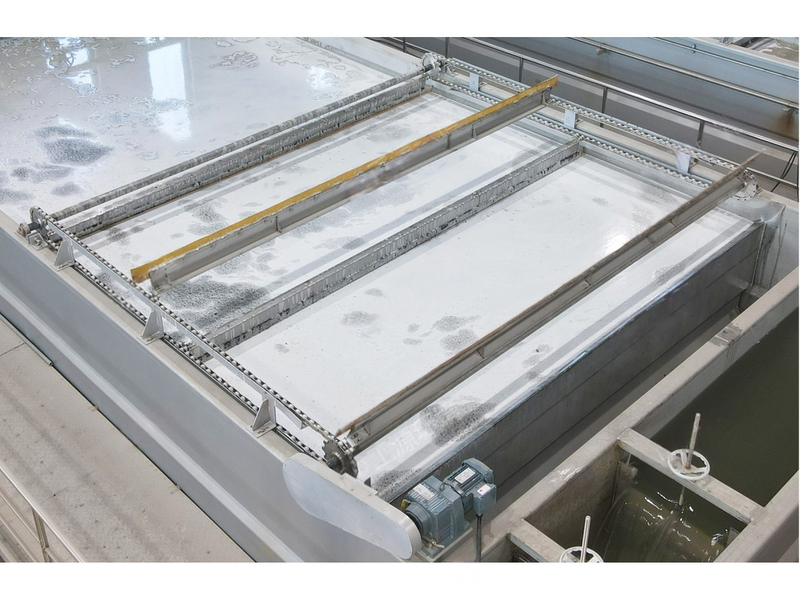

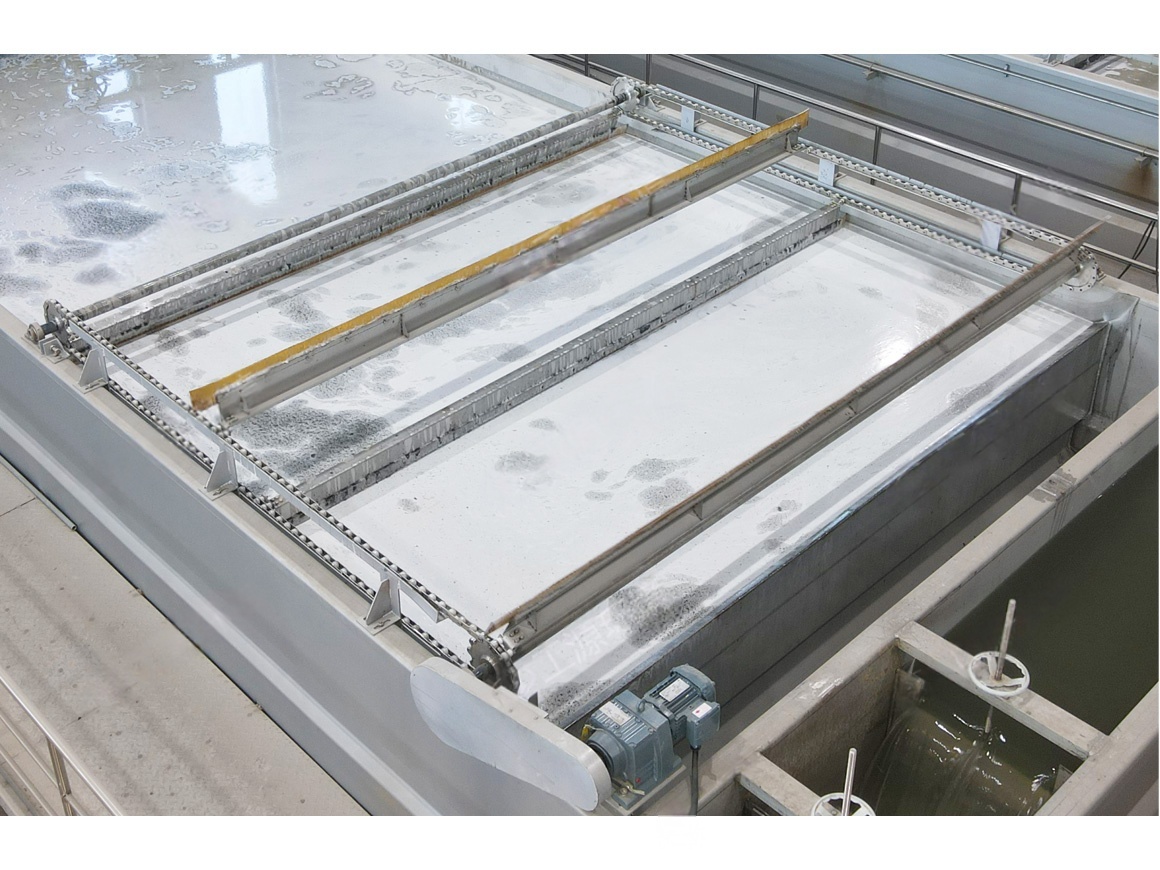

GLG series chain plate slag scraper

principle

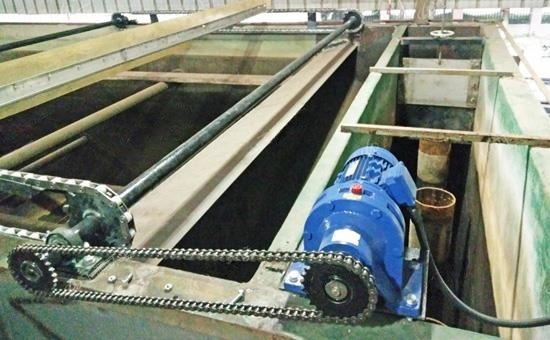

The slag scraper mainly consists of: motor, chain bracket, scraper plate, drive shaft, chain, tensioning mechanism, driven shaft, etc.

Product Description

The slag scraper mainly consists of: motor, chain bracket, scraper plate, drive shaft, chain, tensioning mechanism, driven shaft, etc.

Model number	the pool's inner wall is B (m).	Slag scraping stroke L (m )	Motor power (kW )	Distance from top of pool to surface of liquid (m )
GLG-0.5	0.5	1~3	0.2	0.2-0.25
GLG-1	1	1~3	0.2
GLG-2	2	1~5	0.2
GLG-3	3	1~5	0.4
GLG-4	4	1~5	0.4
GLG-5	5	3~5	0.75
GLG-6	6	3~6	0.75
