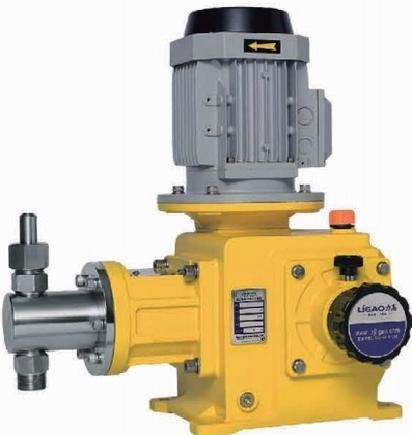

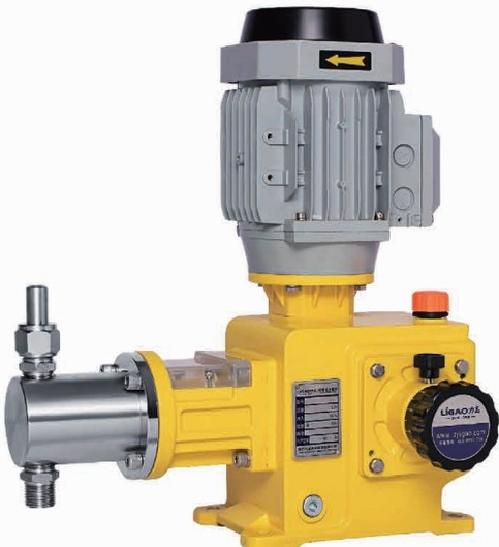

JPZ Plunger Metering Pump
1. Single-head flow rate: Qmax = 820L/H
2. Pressure range: Pmax = 50MPa
3. Standard configuration: Material 304, 316L 380V /50Hz
4. Select configuration: Material 316, 904, 2205, Ti, Hastelloy C Etc., motor frequency conversion/explosion-proof, special voltage/frequency
PERFORMANCE PARAMETER
Model | Flow rate (L/H) | Pressure MPa | plunger diameter (mm) | Pump speed SPM | Trip mm | Motor power kW | Import/export connection |
JPZ5/50 | 5 | 50 | 8 |
96 |
25 |
0.75 |
6-pipe sleeve |
JPZ9/44 | 9 | 44 | 10 | ||||
JPZ14/30 | 14 | 30 | 12 | ||||
JPZ26/17 | 26 | 17 | 16 |
96 |
10-pipe sleeve | ||
JPZ42/10 | 42 | 10 | 20 | ||||
JPZ66/7 | 66 | 7 | 25 | ||||
JPZ85/5.5 | 85 | 5.5 | 28 | ||||
JPZ110/4.0 | 110 | 4 | 32 | ||||
JPZ135/3.3 | 135 | 3.3 | 35 |
96 |
15-inch pipe sleeve | ||
JPZ160/2.8 | 160 | 2.8 | 38 | ||||
JPZ200/2.3 | 200 | 2.3 | 42 | ||||
JPZ225/2.0 | 225 | 2 | 45 | ||||
JPZ280/1.7 | 280 | 1.7 | 50 | ||||
JPZ335/1.3 | 335 | 1.3 | 55 |
96 |
DN25 flange (HG/T20592RF) | ||
JPZ400/1.1 | 400 | 1.1 | 60 | ||||
JPZ470/0.9 | 470 | 0.9 | 65 | ||||
JPZ550/0.8 | 550 | 0.8 | 70 | ||||
JPZ600/0.7 | 600 | 0.7 | 60 |
144 | |||
JPZ700/0.6 | 700 | 0.6 | 65 | ||||
JPZ820/0.5 | 820 | 0.5 | 70 |
Note: It can be connected in parallel with two or more heads to increase flow rate, reduce pulse, save energy and reduce consumption, or add multiple media in proportion.
