●Small footprint
●High surface load
●Simple operation and easy maintenance
●Suitable for treating wastewater after fermentation
●Suitable for scenarios with a small footprint
● Wastewater treatment in the electroplating industry
● Wastewater treatment in the leather industry
● Wastewater treatment in the textile printing and dyeing industry
● Wastewater treatment in slaughtering and livestock farming industries
● Other wastewater treatment with floatability (solid-liquid and oil-water separation)

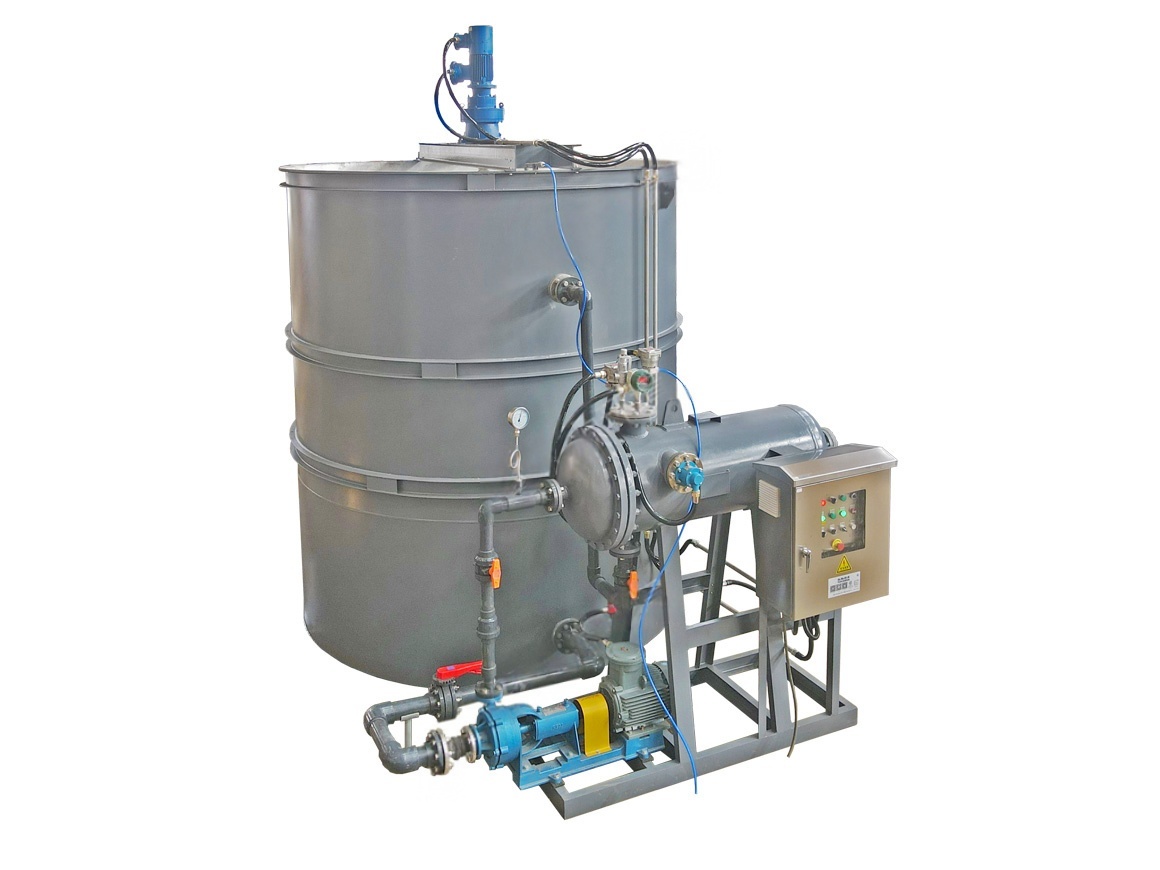

The GSLF vertical flow air flotation system works on the same principle as other air flotation devices, but the structure of the equipment has been adjusted.
The GSLF vertical flow flotation system is cylindrical in shape and uses a central water distribution and peripheral water outlet method. The structure of the separation zone is more conducive to the flotation and concentration of sludge.
It is widely used in wastewater treatment renovation projects with small water volume and limited space.
Model number | Processing capacity (m³/h) (m³/h) | Dimensions L×B×H Dimensions L×B×H (m) (m) | water pump (kW water pump (kW) ) | air compressor (kW) Air compressor (kW) | Slag scraper (k scraper (kW) W) | Total power ( total power (kW) W) |
GSLF-1 | 0.5-1 | φ0.8×1.9 | 0.55 | 0.55 | 0.2 | 1.3 |
GSLF-3 | 2-3 | φ1.2×2.1 | 4 | 0.55 | 0.2 | 4.75 |
GSLF-5 | 3-5 | φ1.5×2.6 | 4 | 0.55 | 0.2 | 4.75 |
GSLF-10 | 5-10 | φ1.8×2.8 | 4 | 0.75 | 0.2 | 4.95 |
GSLF-20 | 10-20 | φ2.2×3 | 5.5 | 0.75 | 0.4 | 6.65 |
GSLF-30 | 20-30 | φ2.0×3.2 | 5.5 | 0.75 | 0.4 | 6.65 |
GSLF-40 | 30-40 | φ3×3.5 | 5.5 | 0.75 | 0.4 | 6.65 |
GSLF-50 | 40-50 | φ3×4 | 7.5 | 1.5 | 0.4 | 9.4 |
